NSK Bearing Strengthen Sheet Paper Bag Forming Machine For Starch

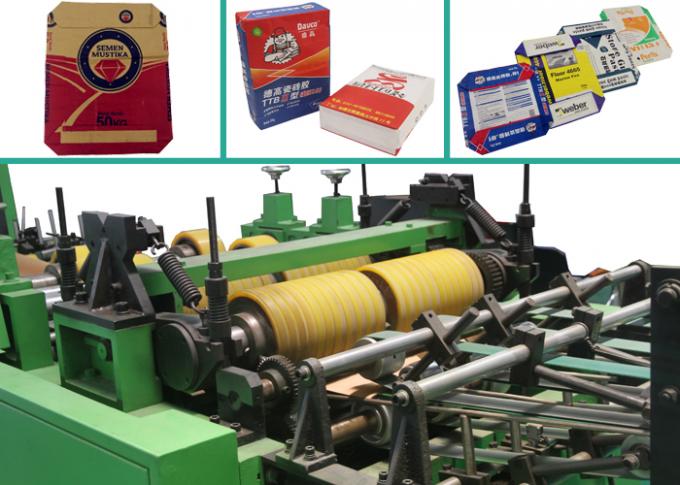

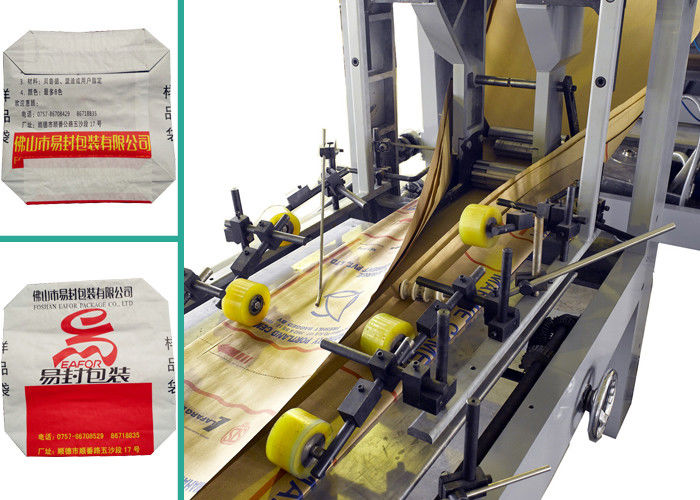

HD4916B Bottomer Machine Operating condition
|
Speed
|
MAX 80 bags/min
|
|
Tube Width
|
380～620 mm
|
|
Bottom Width
|
80～160 mm
|
|
Valve Sheet Length *Width
|
(100-300)﹡(120-340)adjustable
|
|
Number of ply
|
2~4paper+1 PP/PE
|
|
Strength sheet unit
|
YES
|
|
Main Drive Motor
|
35KW
|
|
Machine size
|
23.5﹡2.3﹡1.8(M)
|
|
Machine weight
|
N34(T)
|
Features of our full-automatic paper bag production line:
1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit
Our machine:
Automatic valve paper bag machine for cement,chemicals and food
The ZT9802S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber
machine, is added a servo control component on each of the four key procsses (printing,perforation,
gluing and separation), to form a closed-loop servo control system by the PLC, servo control module,
the main frequency traction motor, servo motor group,encoder, color components to ensure that the
cutting position of each printing bags matches the color patch of the tube.
