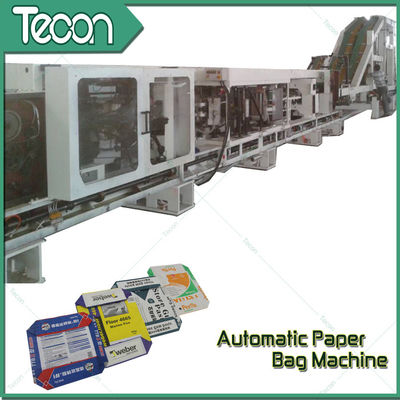

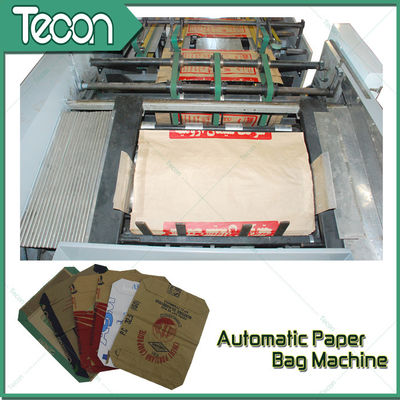

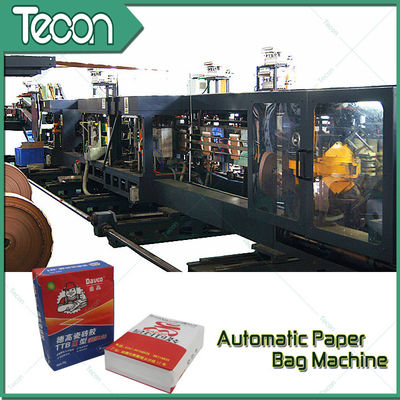

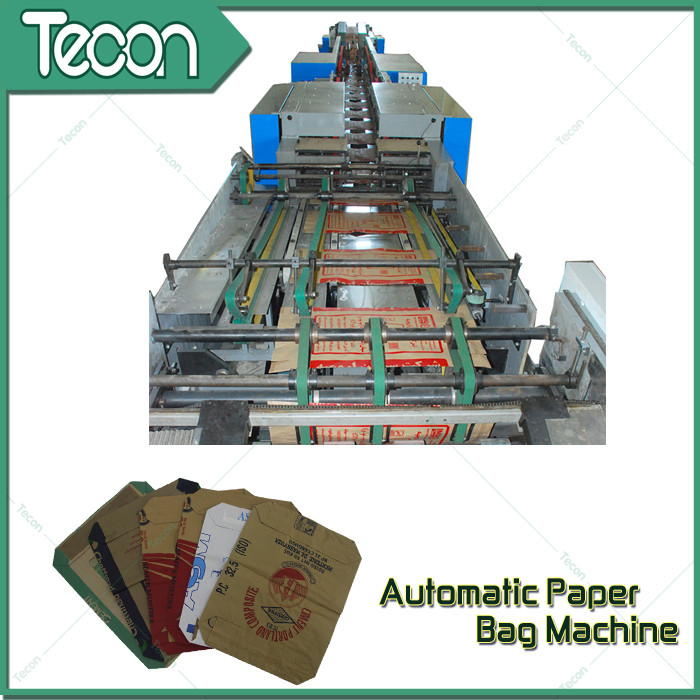

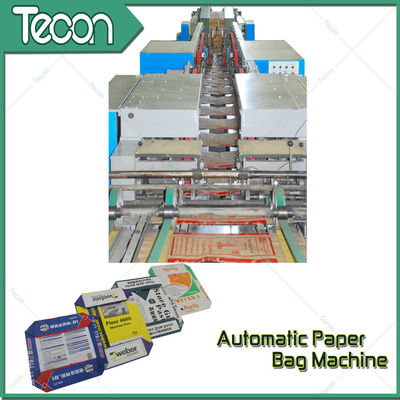

High Speed Paper Bag Forming Machine with Four Colors Flexo Printing

Product Details:

Place of Origin:	China
Brand Name:	Tecon
Certification:	CE
Model Number:	HD4916

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Ply Wood case
Delivery Time:	3-5 months after received your payment
Payment Terms:	T/T or L/C
Supply Ability:	16pcs per year

Contact Now

Detailed Product Description

Speed:	Max 120 Bags/min	Bag Length:	520~880mm
Bag Width:	420~600 Mm	Bottom Width:	90~160mm
Bottom Open Width:	200~440mm	Distance Between Bottom Centers:	420~780mm
Bearing:	(NSK, Japan) No Special Gear;	Other:	Servo System Control Or PLC Control Available;
Bag Type:	For Cement, Chemicals, Foods, Tea, Etc.	Printing Color:	4 Colors
High Light:	bag forming machine , paper bag manufacturing machine

High Speed Paper Bag Making Machine with Four Colors Flexo Printing

HD4916 Bottomer Machine Operating condition

Valve sheet length	100~300mm(adjustable)
Valve sheet width	120~240mm(adjustable)
Main drive motor	33kw
Total weight	25T
Size of whole set	22m×1.8m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line HD4916 Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1
Vacuum-pump	1

Perfect service:

1. Technical consultation
2. Detailed design of factory or workshop
3. Project evaluation
3. Training engineers and workers
4. Supplying spare part for long time
5. Installing and testing the whole production line
6. Good after-sale and in-sale servcie

Automatic valve paper bag machine for cement,chemicals and food
