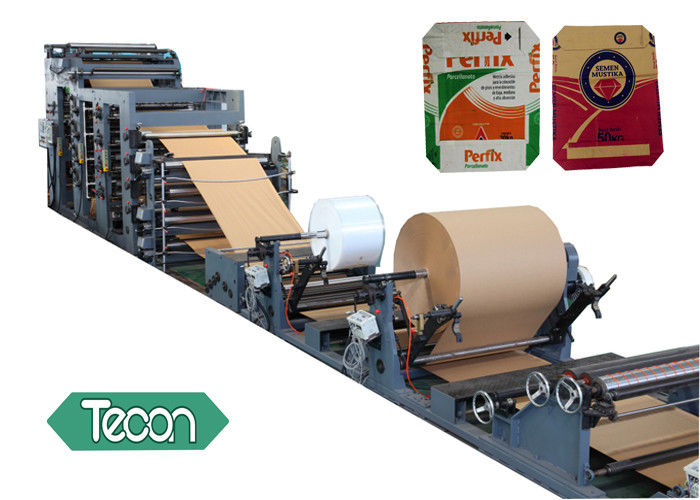

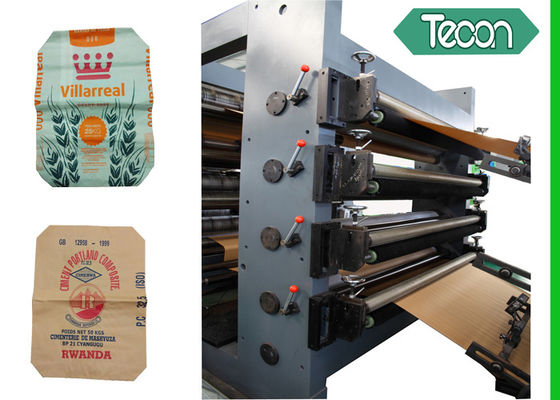

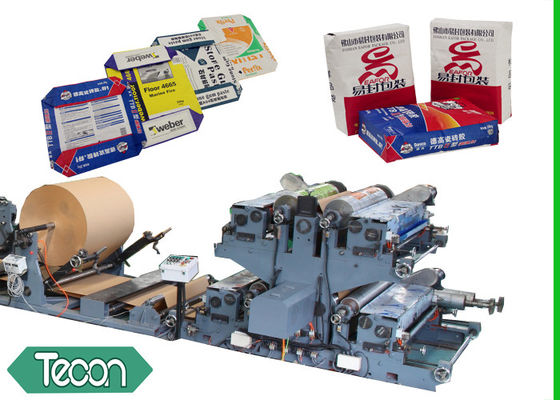

High Speed Paper Bag Forming Machine Deviation Rectifying System

High Speed Paper Bag Forming Machine Deviation Rectifying System

    • High Speed Paper Bag Forming Machine Deviation Rectifying System
    • High Speed Paper Bag Forming Machine Deviation Rectifying System
    • High Speed Paper Bag Forming Machine Deviation Rectifying System
    • High Speed Paper Bag Forming Machine Deviation Rectifying System
  • High Speed Paper Bag Forming Machine Deviation Rectifying System

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4916

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Ply Wood case
    Delivery Time: 3-5 months after received your payment
    Payment Terms: T/T or L/C
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Speed: Max 120 Bags/min Bag Length: 520~880mm
    Bag Width: 420~600 Mm Bottom Width: 90~160mm
    Bottom Open Width: 200~440mm Distance Between Bottom Centers: 420~780mm
    Bearing: (NSK, Japan) No Special Gear; Other: Servo System Control Or PLC Control Available;
    Bag Type: For Cement, Chemicals, Foods, Tea, Etc. Printing Color: 4 Colors
    High Light:

    cement bag machinery

    ,

    bag forming machine

    High Speed Multi-function Paper Packing Machine with Deviation Rectifying System





    HD4916 Bottomer Machine Operating condition





    Valve sheet length

    100~300mm(adjustable)

    Valve sheet width

    120~240mm(adjustable)

    Main drive motor

    33kw

    Total weight

    25T

    Size of whole set

    22m×1.8m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm





    Composing of the production line HD4916 Bottomer Machine





    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    Vacuum-pump







































    Features of our full-automatic paper bag production line:



    1. Flat & glued bottom with filling valve;

    2. Different types for cement, chemicals, foods, tea, etc.

    3. 4-color automatic printing

    4. 2~4 paper layers, with one extra PE/PP film available

    5. 35~50 million bags/year

    6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

    7. Full technical service for installation, training and maintenance

    8. Full solution for factory construction and materials purchase.





    Automatic valve paper bag machine for cement,chemicals and food



    High Speed Paper Bag Forming Machine Deviation Rectifying System

    High Speed Paper Bag Forming Machine Deviation Rectifying System
