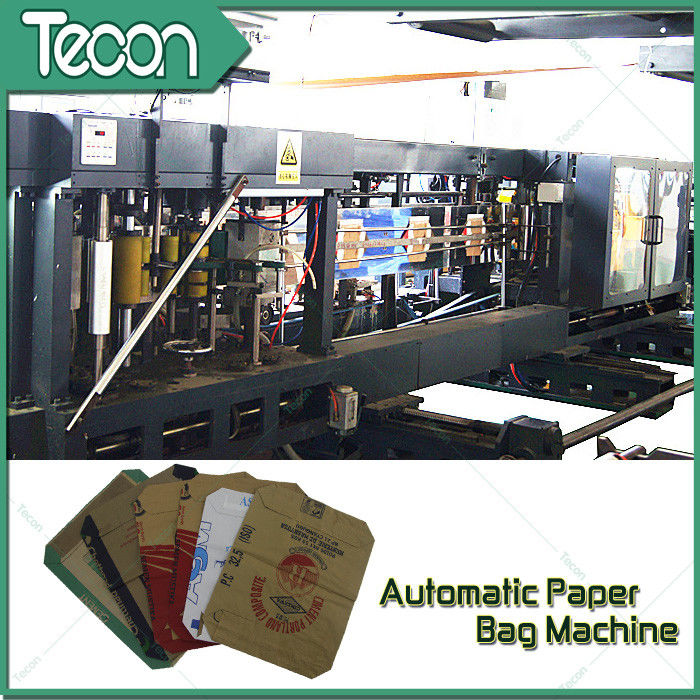

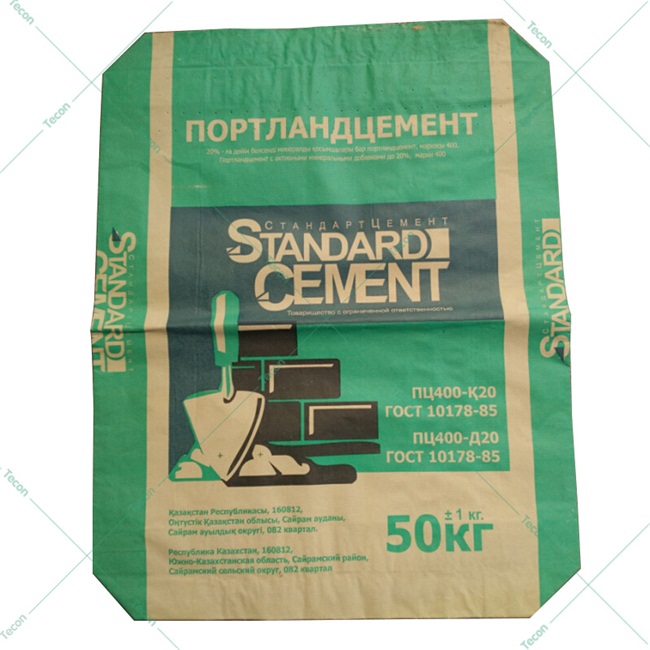

Flat Bottom Pasting Paper Bag Forming Machine Which Can Pack 50Kg Cement

Flat Bottom Pasting Paper Bag Forming Machine Which Can Pack 50Kg Cement

Flat Bottom Pasting Paper Bag Forming Machine Which Can Pack 50Kg Cement

Product Details:

Place of Origin: China
Brand Name: Tecon
Certification: CE
Model Number: ZT Serious

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Machine
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-5 months after received your payment
Payment Terms: T/T or L/C
Supply Ability: 16Pcs Per Year
Contact Now
Detailed Product Description
Gears: Bevel Gear Differential: Micro Adjustment Gear
Bag Multiwall: 2 - 5 Layers Print Tech: Online 4 Colors Printing
Rectifying System: 2 Pieces Machine Body: Casting Body
Height: 3 Meter Length: More Than 30 Meters

Flat Bottom Pasting Paper Bag Forming Machine Which Can Pack 50Kg Cement





Brand Name: Tecon
Model Number: ZT9804
Certification: CE
Place of Origin: China



Total Weight 30T Main drive motor 30kw
Size 34.3m×2.4m×2.7m( L×W×H) Air consumption 1,100L/min
Working hour 22 hours/day Design temperature 0~40℃



Minimum Order Quantity: 1pcs
Price: negotiation
Payment Terms: T/T or L/C
Supply Ability: 16pcs per year
Delivery Time: 3 months after received your payment
Packaging Details: Wooden case



ZT9804 Tuber Machine
Operating condition

Working hour 22 hours/day
Design temperature 0~40℃
Design humidity MAX. 95%
Number required 1 unit
Model name ZT9804



Performance



Speed

130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length 670~1035 mm
Tube width 420~600 mm
Space between tape steps 20 mm
Tube Cut Length 670~1035mm
Number of ply 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller ø144~ø314 mm
Printing width 1300 mm(MAX)
Paper reel width 860~1260 mm
Paper reel diameter Max. 1, 300 mm
Air consumption 1,100L/min
Main drive motor 30kw
Size of whole set 34.3m×2.4m×2.7m( L×W×H)
Total weight 30 T





Automatic valve paper bag machine for Grain & Wheat



Flat Bottom Pasting Paper Bag Forming Machine Which Can Pack 50Kg Cement
