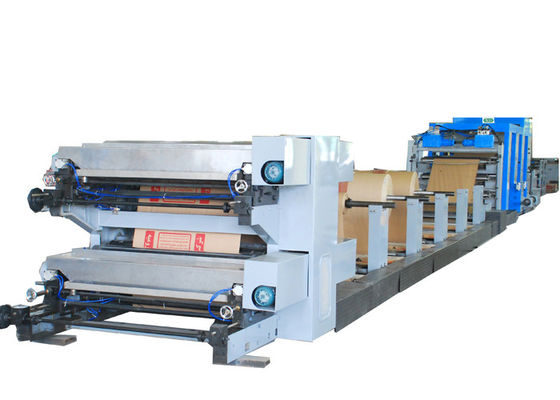

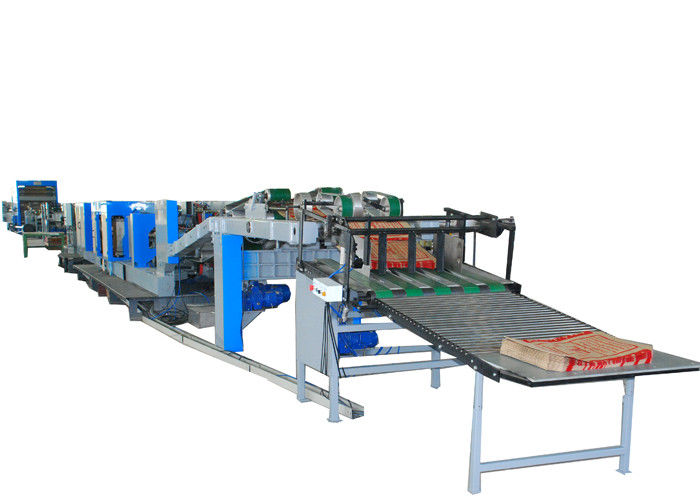

Auto Kraft Making Machine Production Line With Miniature Circuit Breaker Systerm For Sugar
Technical parameters of our production line:
ZT9802S Performance
|
Speed
|
100~160 tubes/min
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
320~620 mm
|
|
Type of cutting
|
Step cut/ Step cut + flat cut
|
|
Tube Cut Length
|
420~1400mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Main drive motor
|
47kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
33 T
|
HD4916BD Performance
|
Speed
|
MAX 80 bags/min
|
|
Tube Width
|
380～620 mm
|
|
Bottom Width
|
80～160 mm
|
|
Valve Sheet Length *Width
|
(100-300)﹡(120-340)adjustable
|
|
Bag Length
|
390～1020 mm
|
|
Bottom Center Distance
|
290～860 mm
|
|
Number of ply
|
2~4paper+1 PP/PE
|
|
Strength sheet unit
|
YES
|
|
Strength sheet length *width
|
(270～520)﹡(80～160)
|
|
Main Drive Motor
|
35KW
|
|
Machine size
|
23.5﹡2.3﹡1.8(M)
|
|
Machine weight
|
N34(T)
|
Composing of the production line:
HD4916BD Bottomer Machine (bottomer with strength sheet pasting unit)
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation of the exhaust outlet unit
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|

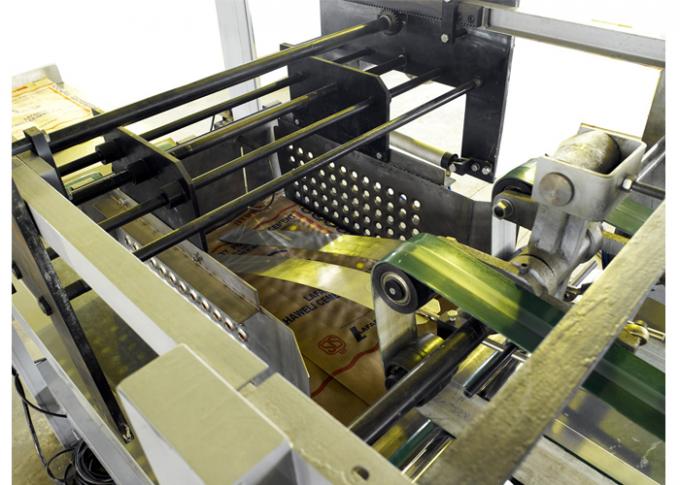

Our machine Details:
Sample bags:
Applications:
The ZT9802S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber
machine, is added a servo control component on each of the four key procsses (printing,perforation,
gluing and separation), to form a closed-loop servo control system by the PLC, servo control module,
the main frequency traction motor, servo motor group,encoder, color components to ensure that the
cutting position of each printing bags matches the color patch of the tube. Through the touch screen,
it is easy and visualized to adjust the specification of tube.
ZT9802S is applicable to producing variety of paper bags, especially when in producing starch paper
bags, tea bags, chemical bags and so on, which need frequent specification changing and high-precision
printing quality, it can fully play its unique advantages.
If you are interested in our products, please do not hesitate to contact us.
