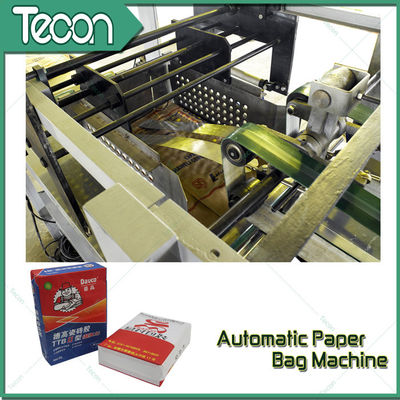

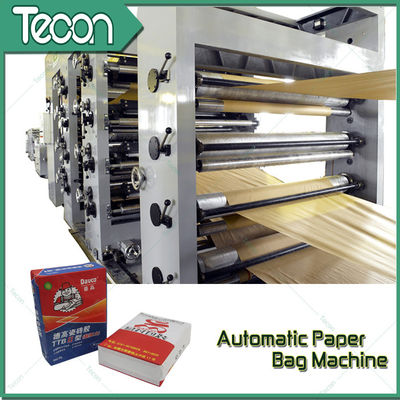

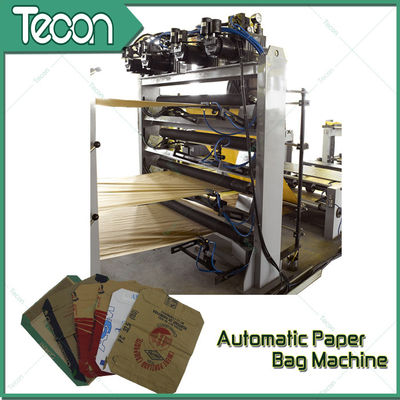

Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System

Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System

    • Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System
    • Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System
    • Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System
    • Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System
    • Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System
  • Flat & Glued Bottom Cement Kraft Paper Bag Making Machine with Servo System

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: Foshan,Tecon
    Certification: CE
    Model Number: ZT9804S+HD4916B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box , 5*40-foot high cabinet
    Delivery Time: 3-5months
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per year
    Contact Now
    Detailed Product Description
    Tuber Type: ZT9804S Manufacturer: Tecon, China
    Working Hour: 22hours Per Day Air Consumption: 1100l/min
    Servo System: Available Bottomer Type: HD4916B
    Total Main Power: 80kw Delivery Time: 5 Months After Down Payment Received
    High Light:

    kraft paper bag machine

    ,

    bag making machine

    Cement Kraft Paper Bag Machine Tube Forming And Bottom Pasting with Servo System​ ​


    Tuber model:ZT9804S
    Bottomer model:HD4916B

    Features of our Karft paper bag making machine:
    1.  Flat & glued bottom with filling valve;
    2.  Different types for cement, chemicals, foods, tea, etc.
    3.  4-color automatic printing
    4.  2~4 paper layers, with one extra PE/PP film available
    5.  35~50 million bags/year
    6.  Servo system control

    Technical parameters of our production line:

     ZT9804S Tuber Machine


    Speed

    80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)

    Tube length

    400~1400 mm

    Tube width

    380~620 mm

    Type of cutting

    Step cut&Flat cut

    Number of ply

    2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)

    Printing width

    1300 mm(MAX)

    Paper reel width

    660~1260 mm

    Paper reel diameter

    Max. 1, 300 mm

    Main drive motor

    47kw

    Size of whole set

    35.3m×2.4m×2.7m( L×W×H)

    Total weight

    32.5T


    HD4916B Bottomer

    Working speed

    80~130 bags/min

    Bag width

    420~600 mm

    Bag length

    520~880mm

    Bottom width

    90~130mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~250mm

    Valve sheet width

    120~170mm

    Main drive motor

    33kw

    Total weight

    22.7T

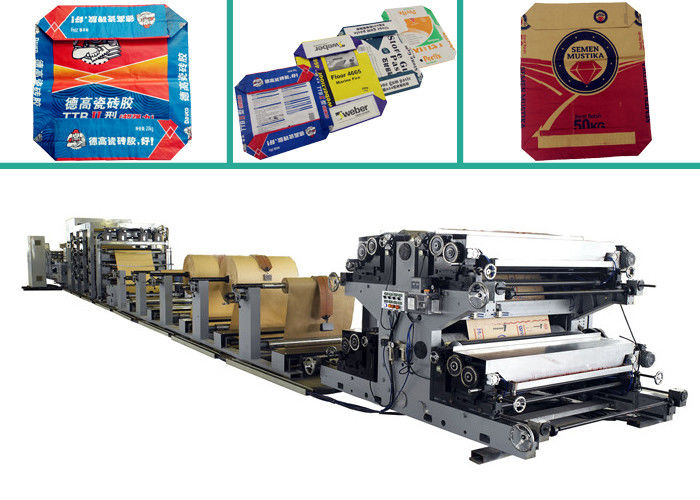

    ZT9804S Tuber Machine compose of following parts



    Name

    Quantity

    4-color printing machine

    1





    utomatic paper rectifier

    1

    Auxiliary paper driver

    1

    Perforation unit

    1

    Latitudinal gluing machine

    1

    Longitude gluing machine

    1

    Tubes forming unit

    1

    Driving tearing-off unit

    1

    Delivery and counting unit

    1

    Electric control system

    1 (Schneider)

    Air compressor

    1

    Servo system

    1


    HD4913 Bottomer machine compose of following parts



    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Piling up platform

    1

    Electric control unit

    1

    Delivery and counting unit

    1

    Electric control system

    1 (Schneider, German)

    Vacuum-pump

    1 (Schneider, German)

    Outside reinforcement sheet

    1


    About us

    Foshan Tecon Package Machinery CO., LTD
    is a high-tech equipment manufacturer. In 1996,We designed the first production line for Karft paper bag, and now we are top three listed in the world  in this industry and the only one in China able
    to design and manufacture the whole production line of  bottom pasted paper bag.

    After-sale service
    1.Provide training during and after the commissioning at the buyer site.
    2.One year warranty period from the acceptance at the buyer site.

    3.Provide life long technical services and effective solutions.
