Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing

Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing

    • Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing
    • Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing
    • Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing
    • Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing
  • Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4913

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Standard Wooden Case
    Delivery Time: 3 months after received your payment
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Colour: Customized Size: 21.3m * 2.3m * 1.8m
    Working Temperature: 0 - 40℃ Weight: 22.7 Tons
    Air Consumption: Air Consumption Drive Motor: 33 Kw
    Length: 520~880mm Width: 420~600 Mm
    Bottom Width: 90~130mm Open Width: 200~380mm
    Distance Between Bottom Centers: 420~780mm

    World-Famous High Tech Brown Paper Bags Making Machine Automatic Bottom Sealing



    • · Specifications

      1) Cement paper bag making machine.

      2) Prompt and professional after sale service.

      3) High-speed Automatic Cement Paper Bag Making Machine is professional machine for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.



      · Features

      1) Alternating frequency conversion for adjusting speed.

      2) Centralized vacuum compressed air and glue supply station.

      3) Pieces process control system ensures a successive production with high efficiency.

      4) An accurate synchronized device ensures a stable and realizable tube end opening and valve patches pasting.

      5) Open layout of machine is convenient for changing components for different sack size.



      High Speed kraft paper cement bag making machine
      1)Main parts from Germany/Japan
      2)Automatic & High speed
      3)Multi-functions





    • Technical parameters of our production line

    HD4913 Bottomer Machine

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4913



    Performance

    Speed

    80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~130mm

    Bottom open width

    200~380mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~250mm

    Valve sheet width

    120~170mm

    Main drive motor

    33kw

    Total weight

    22.7T

    Size of whole set

    21.3m×2.3.m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm



    Composing of the production line

    HD4913 Bottomer Machine

    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (Schneider, German)

    Vacuum-pump

    1 (Schneider, German)







    • After sales service

    We will arrange the engineers to the buyer’s factory for installation, commissioning and training.

    1). The seller shall dispatch 4 qualified engineers to the job site for the erection, commissioning, and training. The buyer shall make available of testing facilities and skilled personnel as well as utilities and all raw materials in the specified quantity and quality.

    2). The buyer should accept the equipment after it reaches the technical performance indicated.

    3). We will give some wearing parts to buyer for free. The warranty of machine is one year.

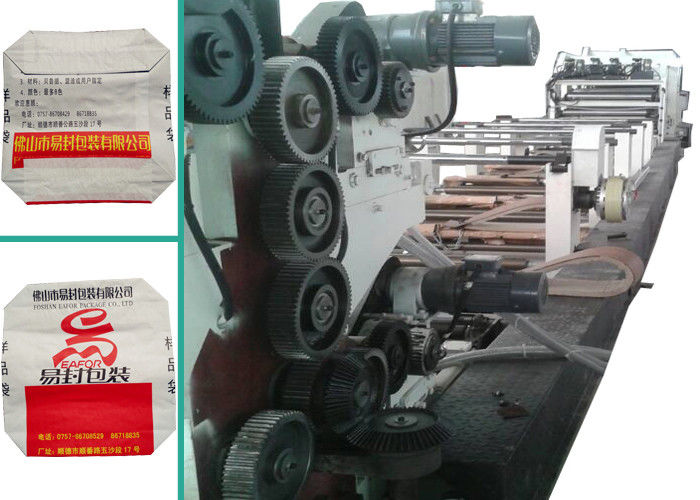

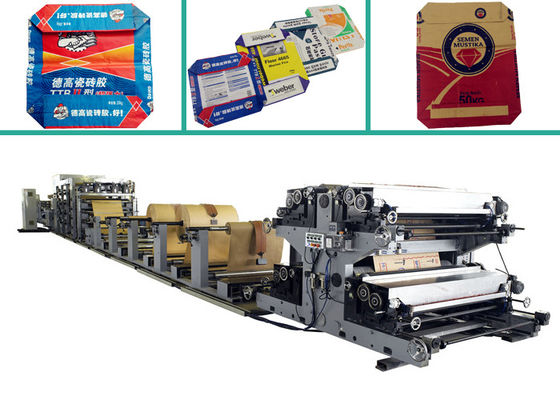

    Sample Bags:



    Tecon Hight Quality Ceramic Paper Bags / Kraft Paper Bags Making Machine Automatic Bottom Sealing
