ZT series paper tube making machine can produce multi-ply paper tube. Material paper reels being unwinding automatically, multi-layers paper tube will be formed automatically. Perforation, tearing down, tension control, deviation rectifying, counting is controlled automatically. A multi-color flexo printing machine is connected with this machine, paper tube can get 2-4 color printing.
Brief Introduction of ZT9804S
The ZT9804S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber machine, is added a servo control component on each of the four key processes(printing, perforation, gluing and separation), to form a closed-loop servo control system by the PLC, servo control module, the main frequency traction motor, servo motor group,encoder, color components to ensure that the cutting position of each printing bags matches the color patch of the tube. Through the touch screen, it is easy and visualized to adjust the specification of tube.
When it is on-line printing, ZT01 print unit prints precisely and neatly, and it only needs to replace print roller and its gear. Through adjustment of thorn-ranked knife position, ZT07 separation machine can cut both the ladder-cutting and straight-cutting tubes. Other related adjustments are operated on touch screen, saving of labor and time.
When it is not on-line printing, besides the above characteristics, when requires more high-precision printing quality, it can complete printing by the using of other printing equipments, producing tubes in ZT9804S Tuber machine, expanding the specification of tubes of ZT9804S(400mm-2000mm). Need not to change any specification wheel; all adjustments are operated on the touch screen.
ZT9804S is applicable to producing variety of paper bags, especially when in producing starch paper bags, tea bags, chemical bags and so on, which need frequent specification changing and high-precision printing quality, it can fully play its unique advantages.
Usage and Characteristics
It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.
Performance
Speed : 120~150 tubes/min (Depends on paper quality, number of ply and operators’ skill.)
Tube length : 330~1400 mm
Tube width : 340~700 mm
Space between tape steps : 20 mm
Number of ply : 2~4 paper + 1 PP/PE (Please specify if you need paper bag with PP film)
Diameter of print roller :ø144～ø314 mm
Paper reel diameter : Max. 1, 300 mm
Air consumption : 1,100L/min
Main drive motor : 30kw
Size of whole set : 34.3m×2.4m×2.7m ( L×W×H)
Total weight : 30.5 T
ZT9802S Tuber Machine
Operating condition
| Working hour |
22 hours/day |
| Design temperature |
0~40℃ |
| Design humidity |
MAX. 95% |
| Number required |
1 unit |
| Model name |
ZT9802S |
Performance
|
Speed
|
100~160 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
| Tube length |
400~1400 mm |
| Tube width |
320~620 mm |
| Type of cutting |
Step cut/ Step cut + flat cut |
| Tube Cut Length |
420~1400mm |
| Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
| Printing width |
1300 mm(MAX) |
| Paper reel width |
660~1260 mm |
| Paper reel diameter |
Max. 1, 300 mm |
| Main drive motor |
47kw |
| Size of whole set |
35.3m×2.4m×2.7m( L×W×H) |
| Total weight |
33 T |
Composing of the machine
ZT9802S Tuber Machine
| Name |
Quantity |
| 2-color printing machine |
1 |
| Mill roll stands |
5 |
| Paper web guide |
1 |
| Automatic paper unwinding |
1 |
| Auxiliary web guide |
1 |
| Perforation unit |
1 |
| Cross stepped gluing unit |
1 |
| Longitude seam gluing unit |
1 |
| Tubes forming unit |
1 |
| Driving tearing-off unit |
1 |
| Delivery and counting unit |
1 |
| Electrical system |
1 (Schneider, France) |
| Bearing |
(NSK, Japan) |
| Compressor |
1 |
| Servo motors |
4 |
The Detail of Tuber Machine

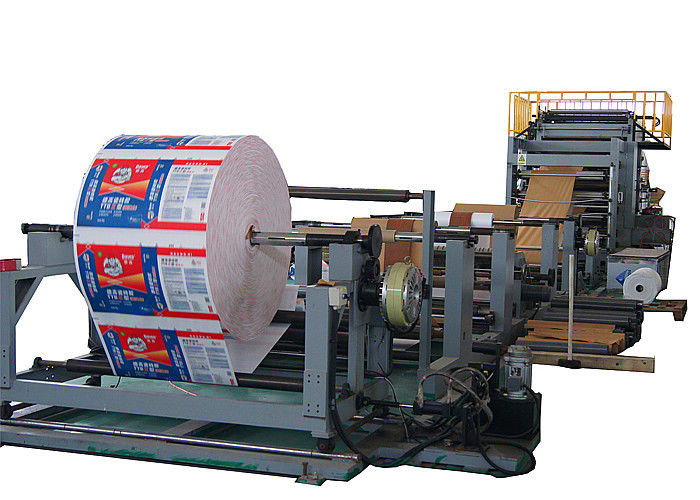

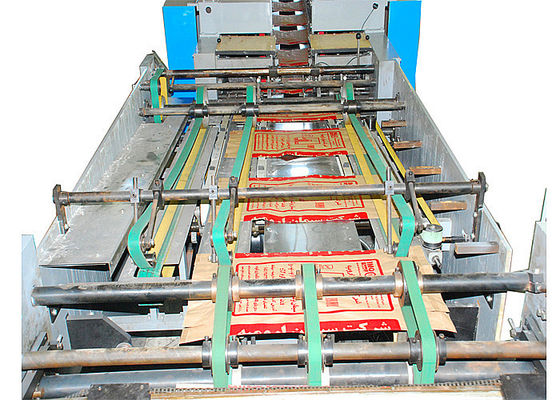

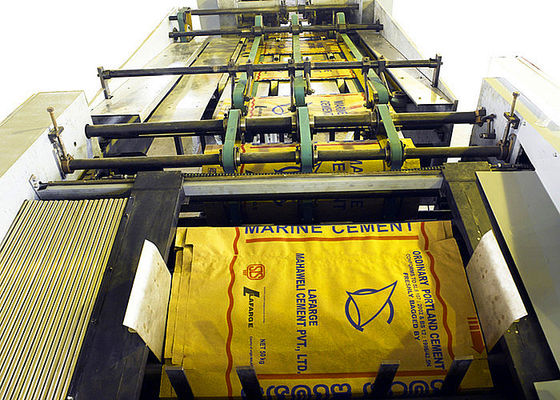

Automatic valve paper bag machine for cement,chemicals and food
