Food Bag Making Machinery With Flush Cut Valve By Kraft Paper
Technical parameters of our production line:
Operating condition
Working Hour : 22 Hours / Day
Design temperature : 0~40℃
Design humidity : MAX. 95%
Number required : 1 unit
ZT9802S Performance
|
Speed
|
100~160 tubes/min
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
320~620 mm
|
|
Type of cutting
|
Step cut/ Step cut + flat cut
|
|
Tube Cut Length
|
420~1400mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Main drive motor
|
47kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
33 T
|
HD4916 Performance
|
Speed
|
120 bags/min
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~160mm
|
|
Bottom open width
|
200~440mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~300mm(adjustable)
|
|
Valve sheet width
|
120~240mm(adjustable)
|
|
Main drive motor
|
33kw
|
|
Total weight
|
25T
|
|
Size of whole set
|
22m×1.8m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|

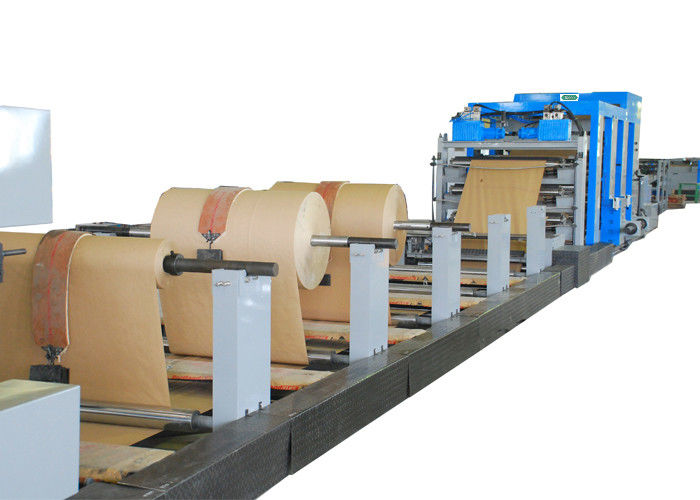

Our machine Details:
Sample bags:
Applications:
The ZT9802S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber
machine, is added a servo control component on each of the four key procsses (printing,perforation,
gluing and separation), to form a closed-loop servo control system by the PLC, servo control module,
the main frequency traction motor, servo motor group,encoder, color components to ensure that the
cutting position of each printing bags matches the color patch of the tube. Through the touch screen,
it is easy and visualized to adjust the specification of tube.
ZT9802S is applicable to producing variety of paper bags, especially when in producing starch paper
bags, tea bags, chemical bags and so on, which need frequent specification changing and high-precision
printing quality, it can fully play its unique advantages.
If you are interested in our products, please do not hesitate to contact us.
