|Place of Origin:||Chine|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Wooden case|
|Delivery Time:||3 months after received your payment|
|Payment Terms:||T/T or L/C|
|Supply Ability:||16pcs per year|
|Total Weight:||30 Tons||Main Drive Motor:||30 Kw|
|Machine Size:||34.3m×2.4m×2.7m ( L×W×H)||Air Consumption:||1100 L/min|
|Working Hour:||22 Hours/day||Working Temperature:||0~40℃|
|Tube Length:||670~1035mm||Tube Width:||420~600mm|
|Tube Cut Length:||670~1035 Mm||Layers:||2~4 Paper + 1 PP Film|
|Warranty:||12 Months||Prints:||4 Colours|
paper tube making machines,
paper tube manufacturing machine

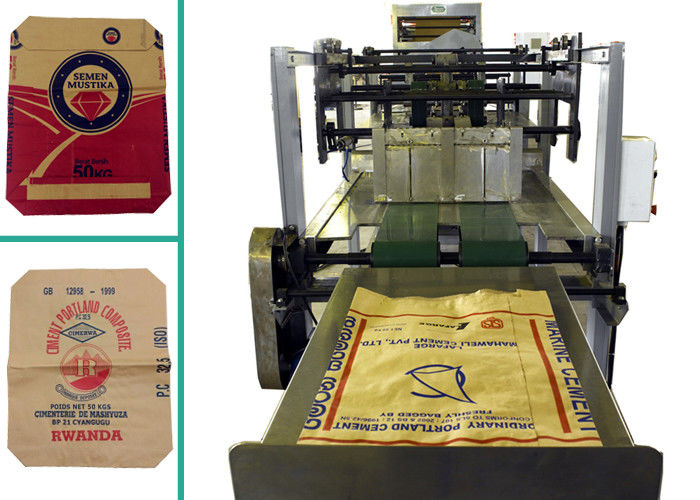

4 Colors Synchronized Printing Automatic Kraft Paper Multiwalls Bag Making Machine
ZT series paper tube making machine can produce multi-ply paper tube. Material paper reels being unwinding automatically, multi-layers paper tube will be formed automatically. Perforation, tearing down, tension control, deviation rectifying, counting is controlled automatically. A multi-color flexo printing machine is connected with this machine, paper tube can get 2-4 color printing.
1) Alternating frequency conversion for adjusting speed.
2) Centralized vacuum compressed air and glue supply station.
3) Pieces process control system ensures a successive production with high efficiency.
4) An accurate synchronized device ensures a stable and realizable tube end opening and valve patches pasting.
5) Open layout of machine is convenient for changing components for different sack size.
Technical parameters of our production line:
ZT9804 Tuber Machine
130~150 tubes/min(Depends on paper quality, number of ply and operators’
Space between tape steps
Tube Cut Length
Number of ply
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller
Paper reel width
Paper reel diameter
Max. 1, 300 mm
Main drive motor
Size of whole set
Composing of the production line
ZT9804 Tuber Machine
4-color printing machine
Paper reel stands
Paper web guider
Automatic paper rectifier
Auxiliary paper driver
Latitudinal gluing machine
Longitude gluing machine

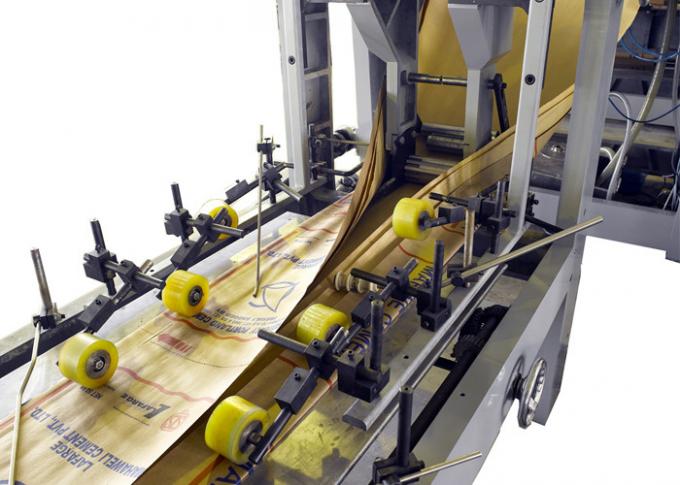

Tubes forming unit
1High-Speed Valve Paper Sack Production Line
Delivery & counting line
Electric control system
1 (Schneider, German)
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance
of supporting our customers and the product solutions we provide. Also we offer one year guarantee period,
paid service for whole life.
(1) Pre-sale service
We are so glad to welcome the customer to visit our factory and show our machine’s working. And we will take you to our domestic customers’ factory who have bought our machine for watching the machine daily operation. We will haveing meetings with the customers for discussion on the machine, price, service or any part concerns. At the same time, we make meeting records and finally close the deal.
(2) Medium-sales service
1. After signing the contract, we will provide the production planning to the customer. In addition to this, we will follow up the production progress and report to the customer production situation regularly.
2. The part of Inspection. When the machine production finished, we will invite the buyer coming to our factory for watching the machine operation. For example, the buyers have a requestment for producing 1 or 2 various sizes paper bags. We will show the machine making paper bags the same as samples provided by buyers. We will arrange the shipment if the customers satisfied with the machine.
3. Transportation. Wooden boxes packaging in container, the whole set of machine needs 5x40GP. About the freight forwarder, we can find for you or use your recommended. We will provide a few good service freight forwarders to let you choose.
(3) After sales service
We will arrange the engineers to the buyer’s factory for installation, commissioning and training.
1). The seller shall dispatch 4 qualified engineers to the job site for the erection, commissioning, and training. The buyer shall make available of testing facilities and skilled personnel as well as utilities and all raw materials in the specified quantity and quality.
2). The buyer should accept the equipment after it reaches the technical performance indicated.
3). We will give some wearing parts to buyer for free. The warranty of machine is one year.
Our Sample Bags:
Automatic valve paper bag machine for cement,chemicals and food
