    Product Details:

    Place of Origin: Foshan,Guangdong,China
    Brand Name: Foshan,Tecon
    Certification: CE
    Model Number: ZT9804+HD4916

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box , 5*40HQ
    Delivery Time: 5months
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per year
    Contact Now
    Detailed Product Description
    Manufacturer: Tecon Working Hour: Up To 22 Hours Per Day
    Air Consumption: 1100l/min Type: ZT9804+HD4916
    Total Main Power: 63kw Total Weight: 55T
    Design Humidity: MAX. 95% Design Temperature: 0~40℃

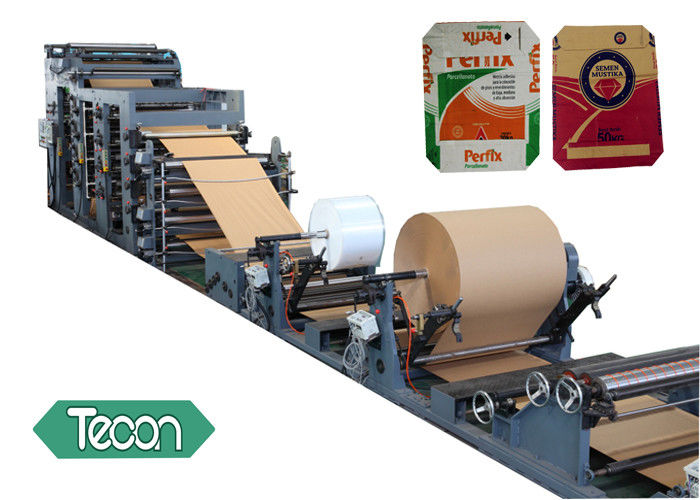

    Industrial bags production line paper tube making machine PP film laminated​ ​





    Industrial Paper bag useage:

    Valve paper bags are used for a vast number of applications, primarily in the building materials and food industries, to filling goods such as:cement,chemical material, feeds, fertilizers,tea,rice etc.



    Features

    1)   Alternating frequency conversion for adjusting speed.

    2)   Centralized vacuum compressed air and glue supply station.

    3)   Pieces process control system ensures a successive production with high efficiency.

    4)   An accurate synchronized device ensures a stable and realizable tube end opening and valve patches pasting.

    5)   Open layout of machine is convenient for changing components for different sack size.



    Specification of compact line

    Basic model: ZT9804&HD4913

    Machine technical parameter:

    Tuber Speed: 130~150 tubes/min
    Bottomer speed: 80~130 bags/min
    Diameter of print roller:  ø144~ø314 mm
    Printing width:  1300 mm(MAX)
    Paper reel width:  860~1260 mm
    Paper reel diameter: Max. 1, 300 mm
    Size of tuber:  34.3m*2.4m*2.7m( L*W*H)
    Size of bottomer: 22m*1.8m*1.8m ( L*W*H)
    Air consumption: 1,100L/min
    Power consumption: 63kw(ZT9804 30KW,HD4913 33KW)



     Paper Bag details:

    Bag Width:  420~600 mm
    Bottom width: 90~130mm
    Length:   520~880mm,longer can be customized.
    Number of plies: 2~4 papers and 1 PP/PE liner obtional.
    Colour printing: 4 colors available (ZT9802 is 2 color printing)

    Base paper Bleached or unbleached paper is available, with grammages ranging from 70g sm to 120 gsm. Polycoated plies or HDPE films can be incorporated if required for enhanced moisture protection.



    Service

    (1)   Pre-sale service

    We are so glad to welcome the customer to visit our factory and show our machine’s working. And we will take you to our domestic customers’ factory who have bought our machine for watching the machine daily operation. We will haveing meetings with the customers for discussion on the machine, price, service or any part concerns. At the same time, we make meeting records and finally close the deal.



    (2)   Medium-sales service

    1.    After signing the contract, we will provide the production planning to the customer. In addition to this, we will follow up the production progress and report to the customer production situation regularly.



    2.   The part of Inspection. When the machine production finished, we will invite the buyer coming to our factory for watching the machine operation. For example, the buyers have a requestment for producing 1 or 2 various sizes paper bags. We will show the machine making paper bags the same as samples provided by buyers. We will arrange the shipment if the customers satisfied with the machine.



    3.   Transportation. Wooden boxes packaging in container, the whole set of machine needs 5x40GP. About the freight forwarder, we can find for you or use your recommended. We will provide a few good service freight forwarders to let you choose.



    (3).After sales service

    We will arrange the engineers to the buyer’s factory for installation, commissioning and  training.

    a. The seller shall dispatch 4 qualified engineers to the job site for the erection, commissioning, and training. The buyer shall make available of testing facilities and skilled personnel as well as utilities and all raw materials in the specified quantity and quality.

    b. The buyer should accept the equipment after it reaches the technical performance indicated.

    c. We will give some wearing parts to buyer for free. The warranty of machine is one year.

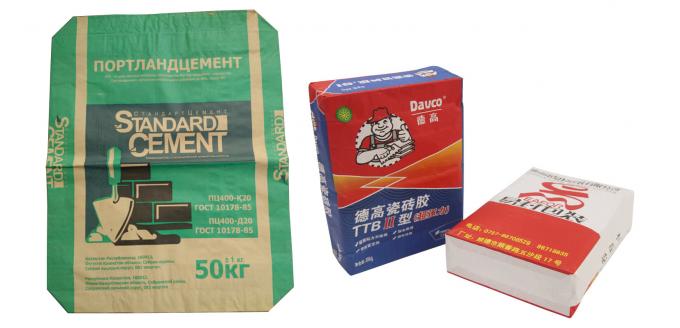

    Industrial bags

    Industrial Bags Production Line Paper Tube Making Machine PP Film Laminated

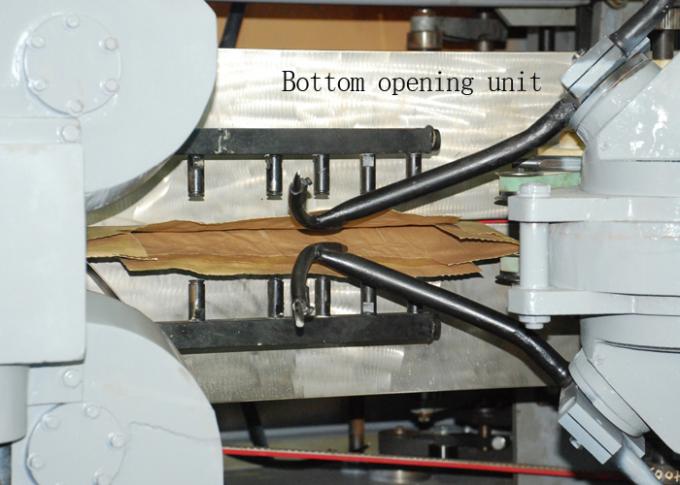

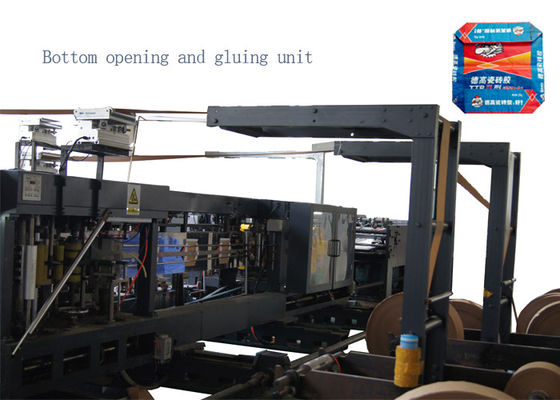

    Bottomer bottom open unit

    Industrial Bags Production Line Paper Tube Making Machine PP Film Laminated
