Automatic Rectification and Adjustable Drive Aligning Servo System Tuber Machine
Configuration
ZTA008 4 color servo printing machine with blade
ZTB006 servo type paper reel racks
ZTC001 Paper web guider(servo type)
ZTD001 paper rectifier
ZTE002 Intermittent air hole unit
ZTE102 Auxiliary paper driver(servo type)
ZTE202 Latitudinal perforation unit(servo type)
ZTE302 Latitudinal gluing unit(servo type)
ZTE402 Longitude gluing unit(servo type)
ZTF004 servo forming unit(no M shape)
ZTG003 Driving tearing-off unit(servo type)
ZTH001 Counting and delivery unit
Usage :

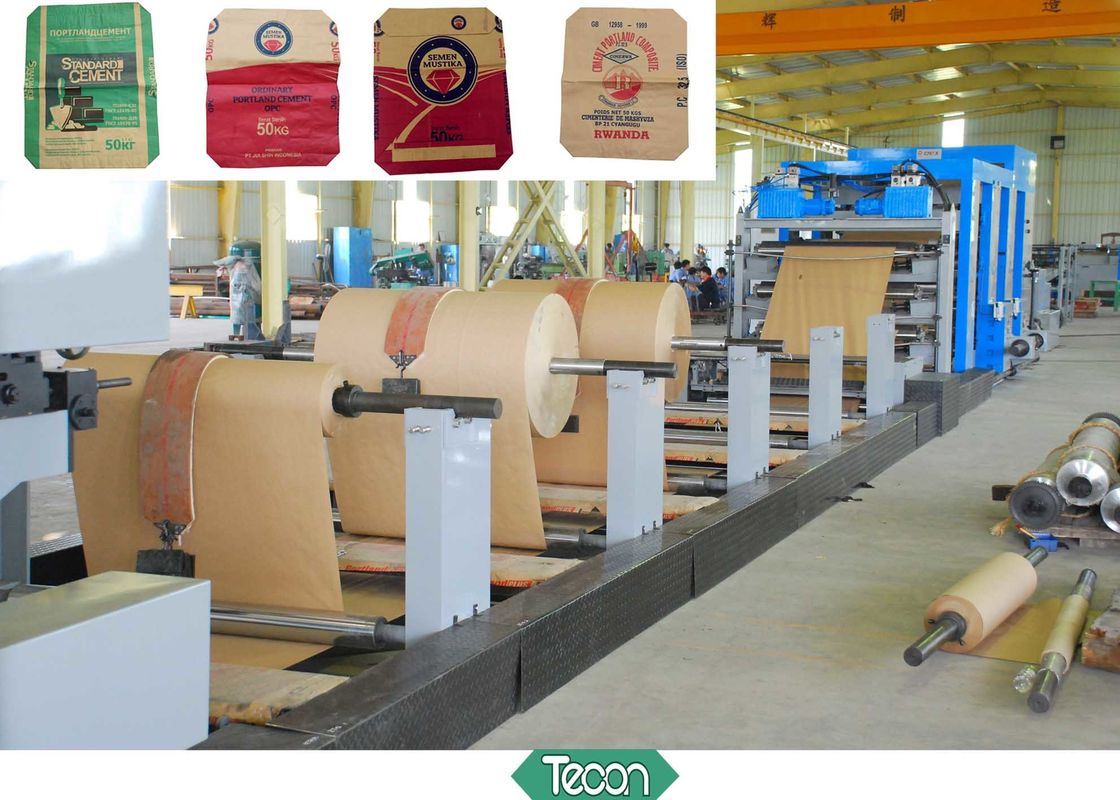

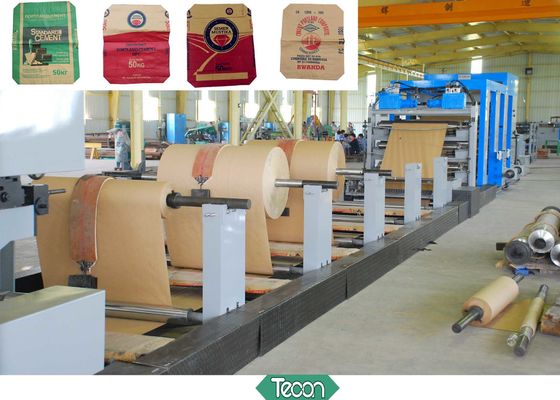

ZT8762S ( ZT9804S ) tuber machine can produce the paper bag that can wrapping cement,chemical,powder and some other PM material.It could product step and straight cutting tuber.The machine is automatic,except the operation of reeling and guiding the scroll.

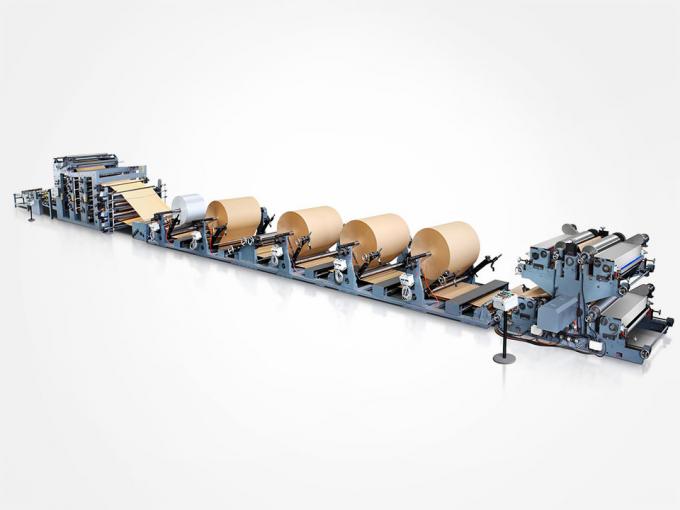

Composing :

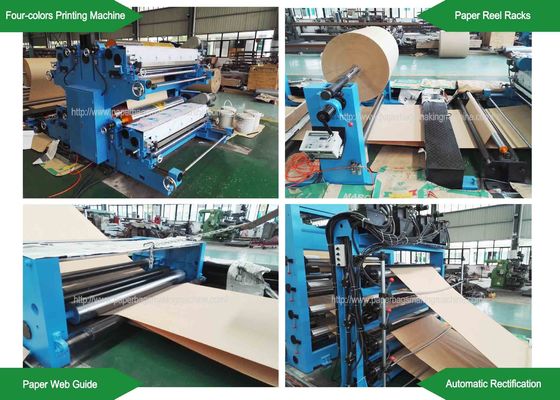

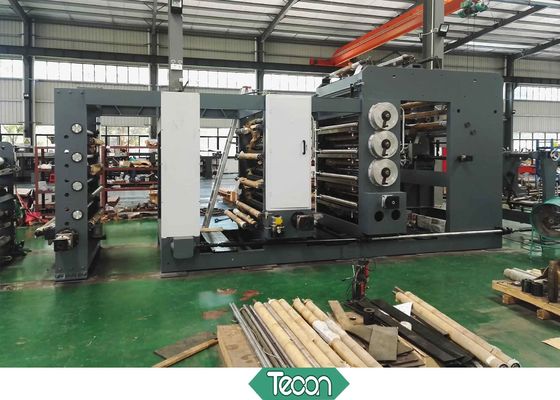

Printing machine
Paper roll stands
Paper web guide
Automatic paper rectifier
Perforation unit
Gluing unit
Tubes forming unit
Driving tearing-off unit
Delivery&couting line
Setrvo control
Advantage :
Device
Function
Scraper type
Enhance the printing quality.
Print roller
Automatically disengage when the machine stops,preventing the paper sticking to the print roller.
Brake band
Educe the inertance of the rolling scroll.
Magnetic powder brake
Educe the inertance of the rolling scroll.
Constant tension control
Educe the inertance of the rolling scroll.
Paper web guide unit
Separate the different scroll.
Automatic paper rectifier
Make the paper on the right position
Servo system
Component on printing,perforation,gluing and separation.
Length and width range will be enlarge and it have no need to change wheel when change produce other size of tuber.
