High Speed Valve Paper Bag Making Machine Automatic Tube Forming
Advantages of our Valve paper bag making machine:
1. Flat & glued bottom with filling valve;
2. 2~4 paper layers, with one extra PE/PP film available ;
3. 2-color automatic printing
4. Multi funtional with servo system on tuber machine.
5. Manufacture speed up to 50 million bags/year
Production line consist of two machine sets,one is tuber machine and the other is bottomer machine.
Technical parameters of Valve paper bag production line:
ZT9802SD Tuber
1. Equipment Model (ZT9802S)
2. Tube Length: 400~1400mm
3. Tube Width: 320~620mm
4. Tube Cut Length: 420~1400mm
5. Printing width: 1300 mmMAX
8. Diameter of paper roll: PDø1300 mmMAX
9. Width of paper roll: 660~1260 mm
10.Tube Speed(S): 130 pieces /minMAX
12. Main Drive Motor power: 47KW
13. Gross weight 33T
HD4913 Bottomer
1. Working speed:80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
2. Bag length:520~880mm
3. Bag width420~600 mm
4. Bottom width:90~130mm
5. Bottom centers distance:420~780mm 200~380mm
6. Valve sheet length:100~250mm
7. Valve sheet width:120~170mm
8. Main drive motor:33kw
9. Size of whole set:21.3m×2.3.m×1.8m ( L×W×H)
Tuber machine compose of following parts

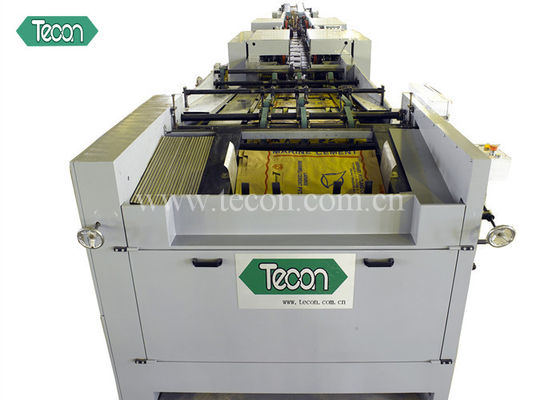

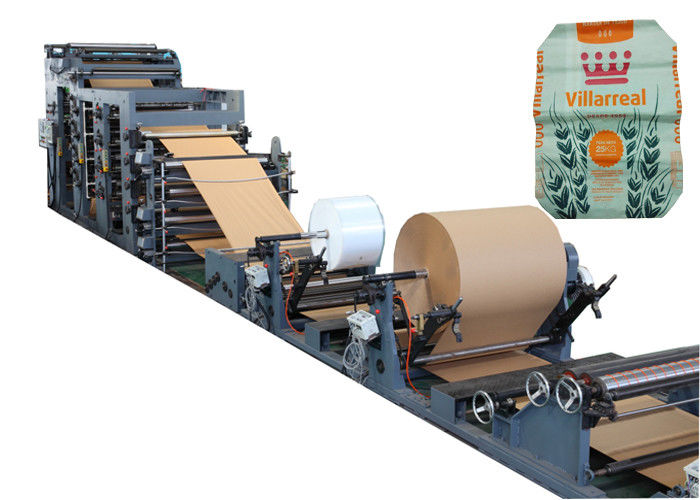

ZT9802SD Tuber Machine
| 2-color printing machine |
1 |
| Mill roll stands |
5 |
| Paper web guide |
1 |
| Automatic paper unwinding |
1 |
| Auxiliary web guide |
1 |
| Perforation unit |
1 |
| Cross stepped gluing unit |
1 |
| Longitude seam gluing unit |
1 |
| Tubes forming unit |
1 |
| Driving tearing-off unit |
1 |
| Delivery and counting unit |
1 |
| Electrical system |
1 |
| Bearing |
NSK Japan |
| Compressor |
1 |
| Servo motors |
4 |

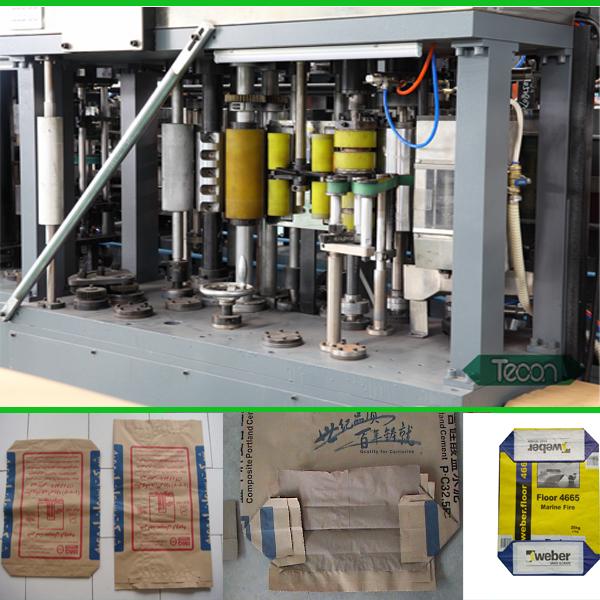

HD4913 Bottomer machine compose of following parts
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |
| Counting and delivery line |
1 |
| Automatic delivering out unit |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 |
| Vacuum-pump |
1 |
Tecon Family
The company has over 100 employees for the department of production, research and development,
service, market. We provide Automatic and Intellectualized Valve Bag Making Machine with higher
production efficiency, more stable quality and a comprehensive solution to its operating system. Our
company constantly work on innovating to keep in step with the times. We have developed a series of
high-tech products, such as Valve Paper Bag Making Machine with servo system, internal and external
strengthen, internal and external valve, paper-plastic valve and Big S compacting machine.
At present, we hold over fifty inventions and patents.

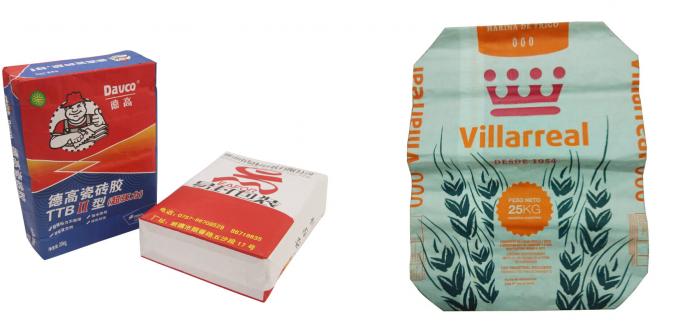

Sample bags
