|Place of Origin:||CHINA|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Wooden case|
|Delivery Time:||5 months after received your payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||16pcs per year|
|Servo System:||Yes||Working Hour:||22 Hours/day|
|Weight:||30 Ton||Main Drive Motor:||30kw|
|Speed:||100-120 Pcs/ Min||Air Consumption:||1,100L/min|
|Bearing:||(NSK, Japan) No Special Gear||Other:||Servo System Control Or PLC Control Available|

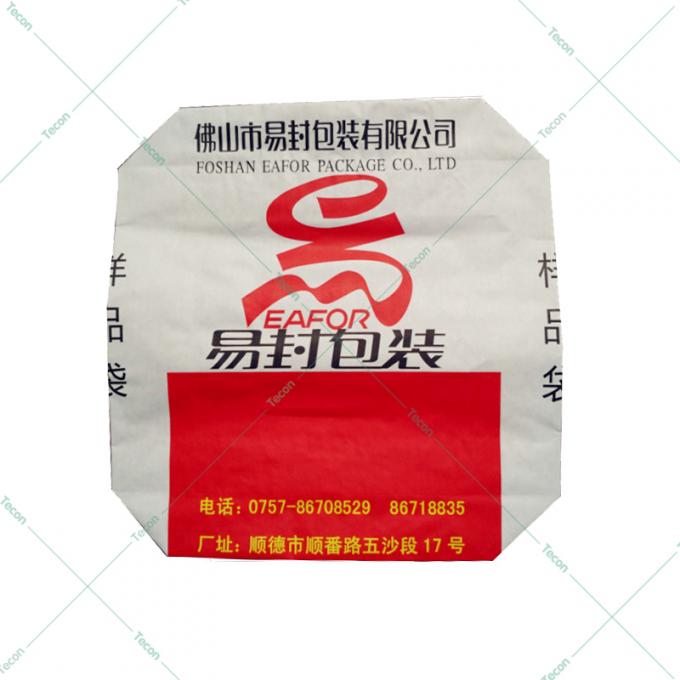

|Bag Type:||For Cement, Chemicals, Foods, Tea, Etc||Printing Color:||4 Colors|
|Output:||35 - 50 Million Bags/year||Tube Length:||670~1035 Mm|
|Tube Width:||420~600 Mm||Space Between Tape Steps:||20 Mm|
|Tube Cut Length:||670~1035mm||Warrantly:||1 Year|
paper bag manufacturing machinery,
paper bag making equipment

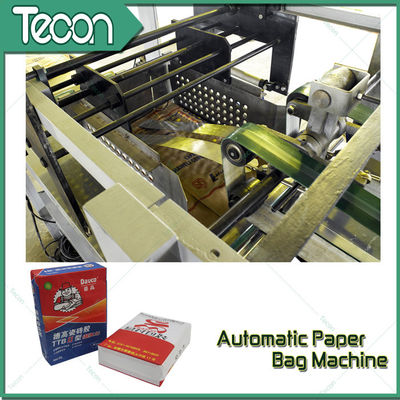

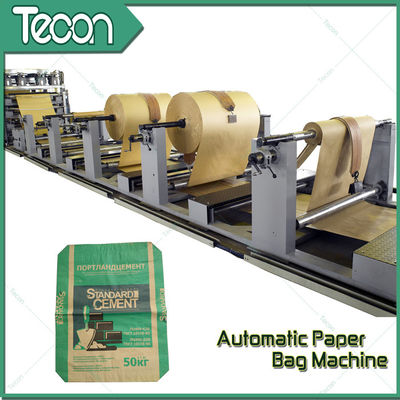

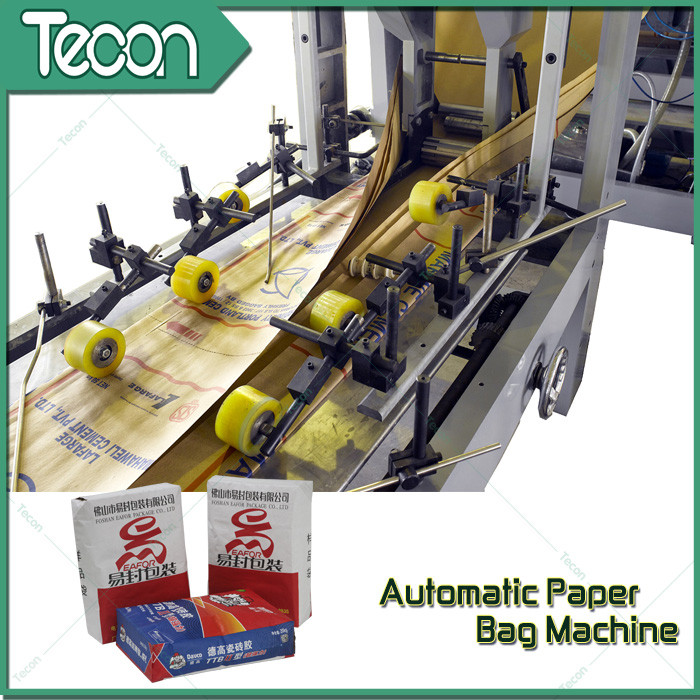

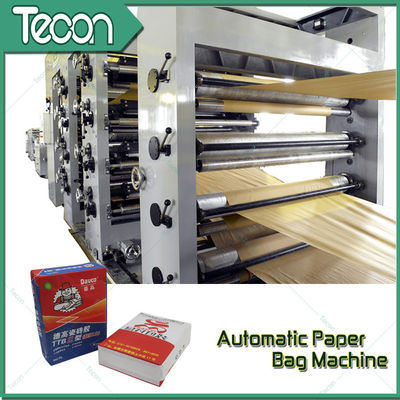

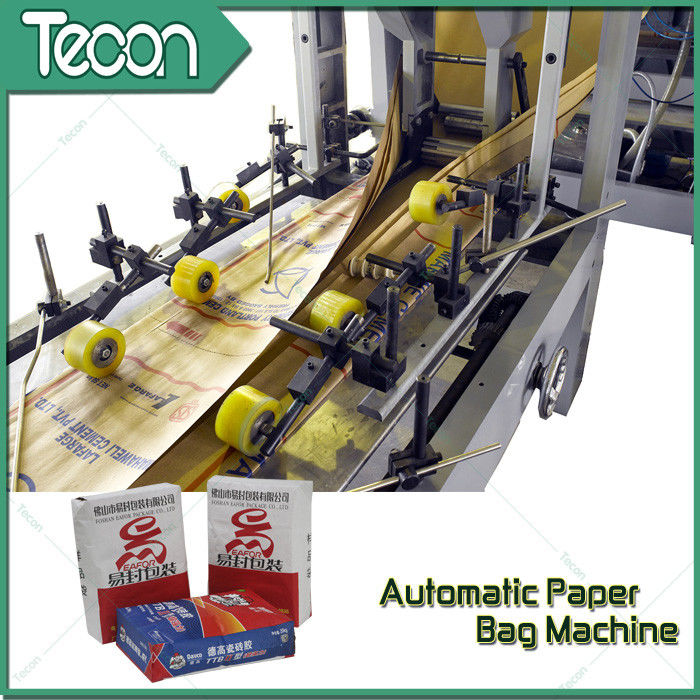

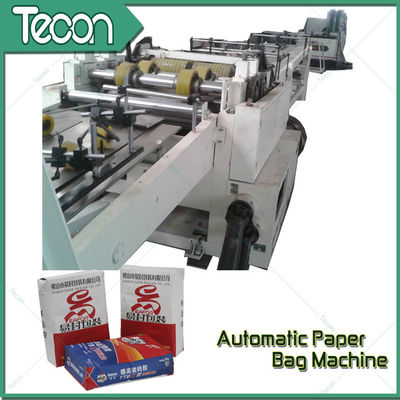

Advanced Full Automatic Motor Driven Valve Paper Bag Making Machine
1) Alternating frequency conversion for adjusting speed.
2) Centralized vacuum compressed air and glue supply station.
3) Pieces process control system ensures a successive production with high efficiency. 4) An accurate synchronized device ensures a stable and realizable tube end opening. 5) Open layout of machine is convenient for changing components for different sack size.
|Working hour||22 hours/day|
|Design humidity||MAX. 95%|
|Number required||1 unit|
|80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)|
|Tube length||400~1400 mm|
|Tube width||380~620 mm|
|Type of cutting||Step cut&Flat cut|
|Number of ply||2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)|
|Printing width||1300 mm(MAX)|
|Paper reel width||660~1260 mm|
|Paper reel diameter||Max. 1, 300 mm|
|Main drive motor||47kw|
|Size of whole set||35.3m×2.4m×2.7m( L×W×H)|
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer.
We designed the first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world top three in this industry and the only one in China able to design & manufacture the whole production line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
