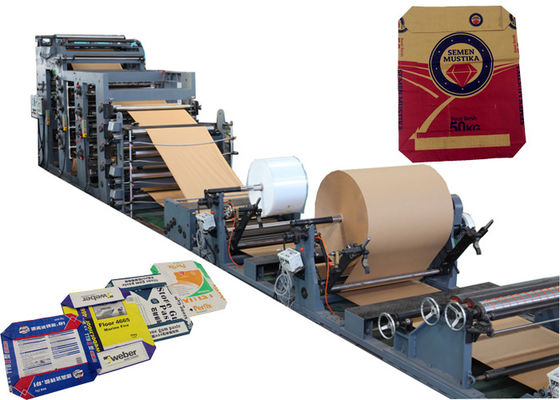

High Performance Valve Paper Bag Making Machine For Cement, Chemical and Milk Powder
Tuber Machine’s Process Description
Step1 Four color Printing machine
Step2 Paper reel racks
Step3 Paper web guide
Step4 Deviation rectifying system
Step5 Auxiliary driving
Step6 Latitudinal glue dotting/brushing

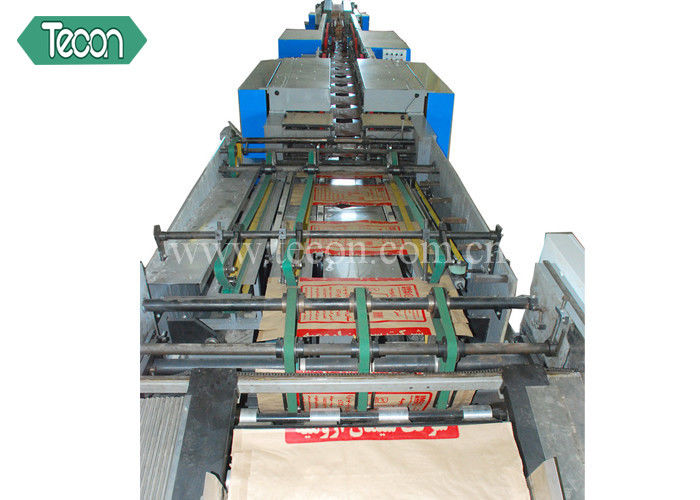

Step7 Tubes forming
Step8 Main motor, tearing off & tubes delivery
Step9 Counting delivery & tubes piling up etc.
Step10 PLC, motors, switch board & electrical

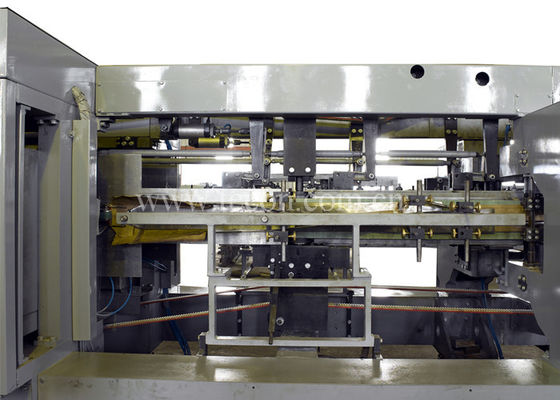

Bottomer Machine’s Process Description
Step1 High-speed Rotary Vacuum Feeding
Step2 Puncturing Vent Hole and Creasing
Step3 Tubes Delivery
Step4 Bottom-Opening
Step5 Valve Sheet Pasting
Step6 Automatic Gluing
Step7 Bottom-pasting and Bag Forming
Step8 Bottom Revising
Step9 Bags Counting and Palletizing
Step10 Programmable Logic Controller(PLC)

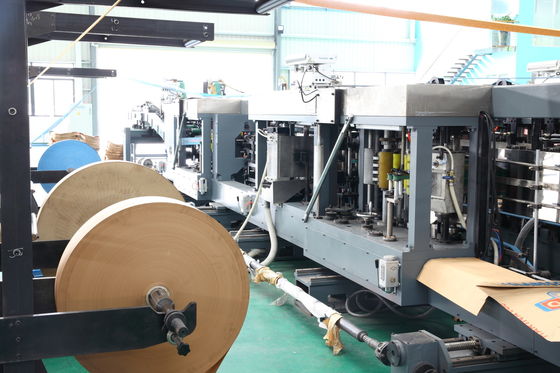

Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9804S
|
Performance
|
Speed
|
80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
380~620 mm
|
|
Type of cutting
|
Step cut&Flat cut
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Main drive motor
|
47kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
32 T
|
Composing of the machine
ZT9804S Tuber Machine
|
Name
|
Quantity
|
|
4-color printing machine
|
1
|
|
Paper reel stands
|
5
|
|
Paper web guide
|
1
|
|
Automatic paper rectifier
|
1
|
|
Auxiliary paper driver
|
1
|
|
Perforation unit
|
1
|
|
Latitudinal gluing machine
|
1
|
|
Longitude gluing machine
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off unit
|
1
|
|
Delivery and counting unit
|
1
|
|
Electric control system
|
1 (Schneider)
|
|
Air compressor
|
1
|
|
Servo system
|
1
|

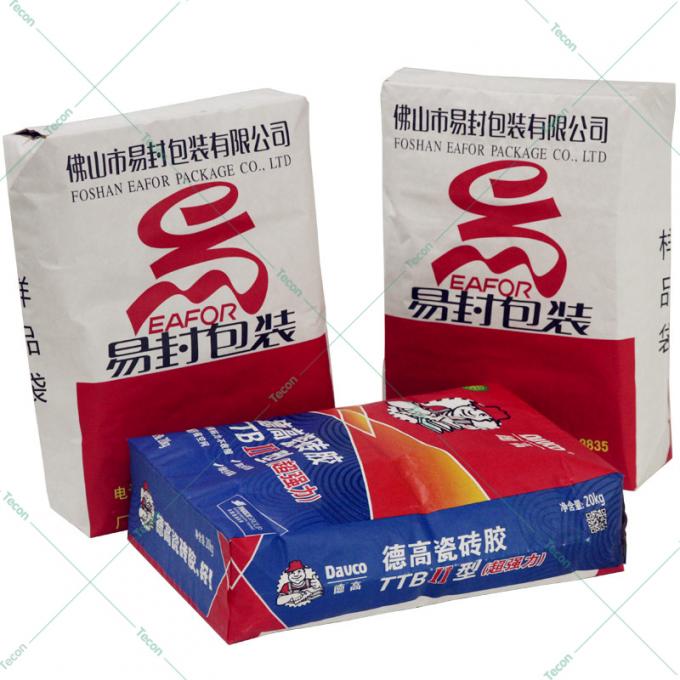

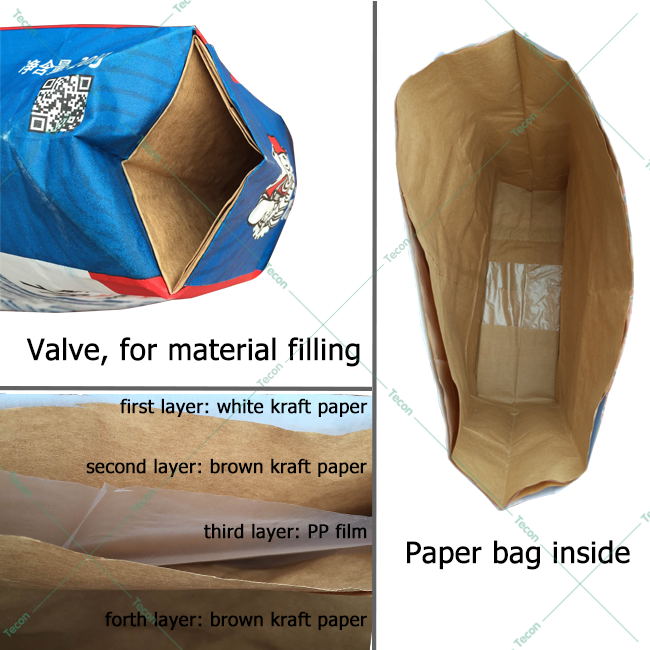

Sample Bags:
If you are interested in our products, please do not hesitate to contact us.
