Advanced Motor Driven Sack Making Machine with Automatic Deviation Rectifier
Specifications :
Our paper bag production line consists two parts, one is paper tube making machine, another is bottom pasting machine. This production line can make 4 color printing, bottom
valved paper bags. This kind of bags can be used for packing cement, mortar, chemicals materials and other granule or powder materials. Bags can be 2~4 layers kraft paper
or clupak paper and one layer of PE material.
Features of our full-automatic paper bag production line:
- Flat & glued bottom with filling valve
- Different types for cement, chemicals, foods, tea, etc.
- 4-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
- system, Siemens electrical system
- 35~50 million bags/year
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
Perfect service:
1. Technical consultation.
2. Detailed design of factory or workshop.
3. Project evaluation.
4. Training engineers and workers.
5. Supplying spare part for long time.
6. Installing and testing the whole production line.
7. Good after-sale and in-sale servcie.
Technical parameters of our production line:
HD4913B Bottomer Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
HD4913B
|
Performance
|
Speed
|
80~130 bags/min(Depends on paper quality, number of ply and
operators’ skill.)
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Composing of the production line
HD4913B Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation machine
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
|
Electric control unit
|
1 (Schneider, German)
|
|
Vacuum-pump
|
1 (Schneider, German)
|
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we
provide. Also we offer one year guarantee period, paid service for whole life.

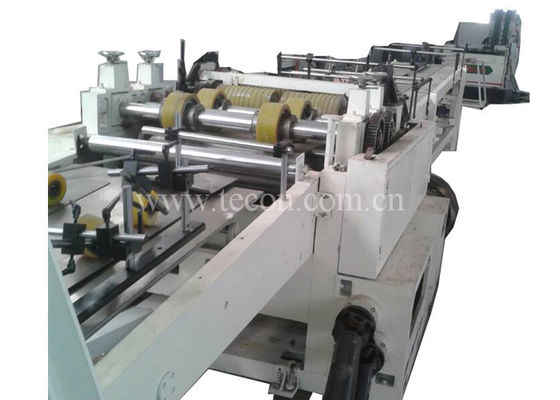

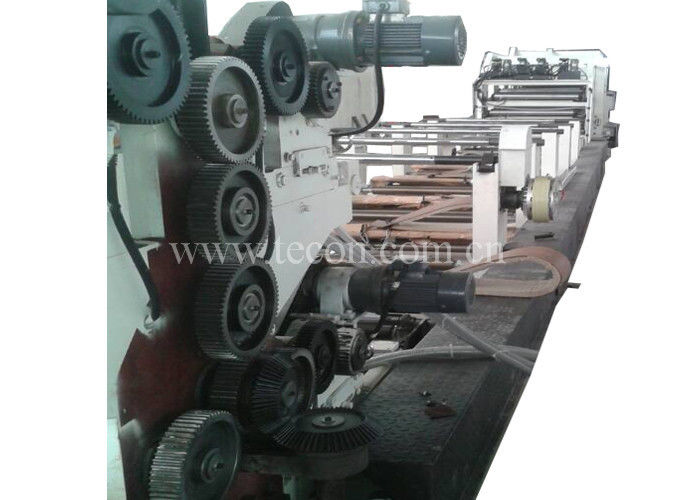

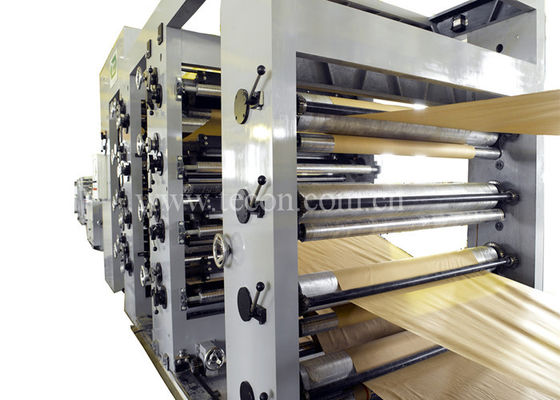

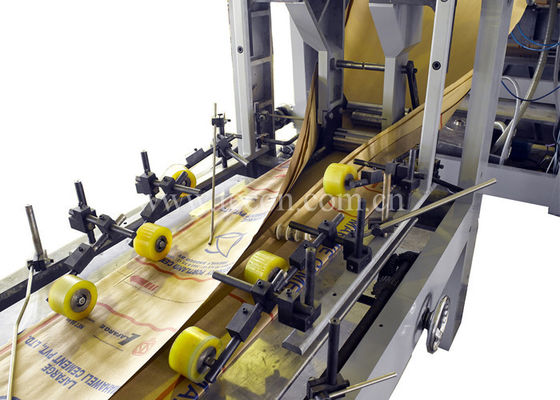

Part of Our Machine:
Bag Sample:
