Place of Origin: | China |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | ZT9802SD |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Wooden Carton |
Delivery Time: | 3 months after received your payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 16pcs per year |
Colour: | Customized | ServoSystem: | Yes |
---|---|---|---|
Speed: | 120 Sacks / Min | Number Of Ply: | 2~4 KraftPaper + 1 PP Or PE (Please Specify If You Need Paper Bag With PP Film) |
Tube Length: | 400 To 1400 Mm | Tube Width: | 320 To 620 Mm |
High Light: | sack manufacturing machine,paper sack machine |

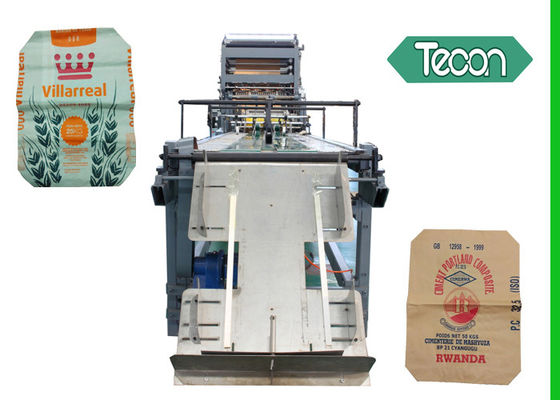

High Performance Kraft Paper Bag Making Machine Including Step Cutting and Flat Cutting
Foshan Tecon Package Machinery CO., LTD, we produce paper bag making machine. The machine is for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.

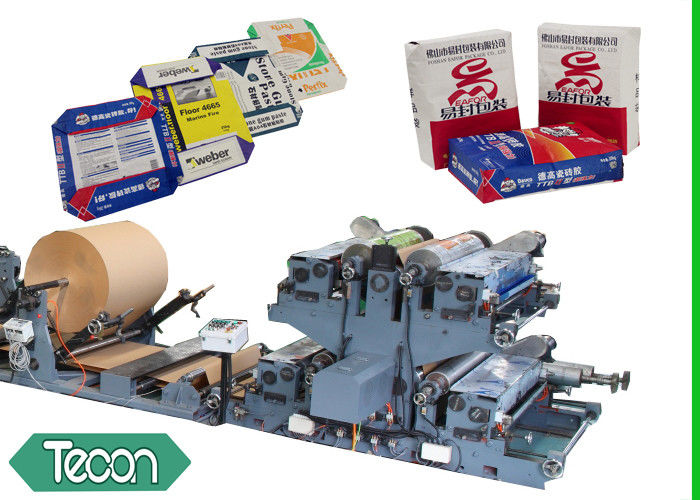

Step1 Four color Printing machine
Step2 Paper reel racks

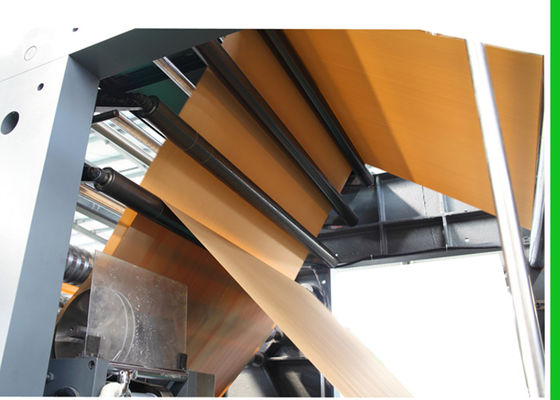

Step3 Paper web guide
Step4 Deviation rectifying system
Step5 Auxiliary driving
Step6 Latitudinal glue dotting/brushing

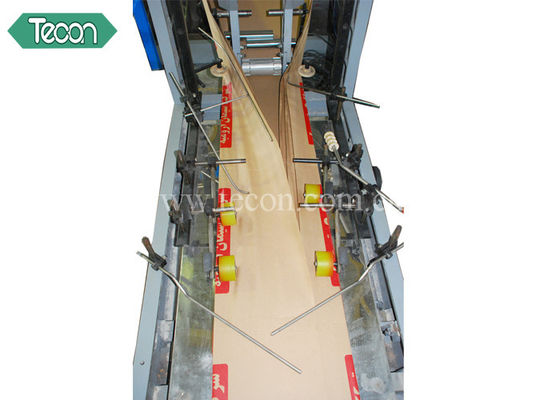

Step7 Tubes forming
Step8 Main motor, tearing off & tubes delivery
Step9 Counting delivery & tubes piling up etc.
Step10 PLC, motors, switch board & electrical
ZT9802SD Tuber Machine
Operating Environment
Working hour |
22 Hours per Day |
Design temperature |
0 to 40℃ |
Design humidity |
Maximum 95% |
Number required |
1 Unit |
Model name |
ZT9802SD |
Technical Details
Speed |
120 Sacks per Min ( Depends on paper quality, number of ply and operators’ skill ) |
Tube length |
400 to 1400 mm |
Tube width |
320 to 620 mm |
Tube Cut Length |
420 to 1400mm |
Number of ply |
2 to 4 Paper + 1 PP or PE ( Please specify if you need paper bag with PP film ) |
Diameter of print roller |
ø196 to ø312 mm |
Printing width |
Maximum 1300 mm |
Paper reel width |
660 to 1260 mm |
Paper reel diameter |
Maximum 1300 mm |
Air consumption |
1100L per Min |
Main drive motor |
27 KW |
Size of whole set |
35.3m * 2.4m * 2.7m |
Total weight |
34 Tons |
Parts including
ZT9802SD Tuber Machine
Name |
Quantity |
2-color printing machine |
1 |
Mill roll stands |
5 |
Paper web guide |
1 |
Automatic paper unwinding |
1 |
Auxiliary web guide |
1 |
Perforation unit |
1 |
Cross stepped gluing unit |
1 |
Longitude seam gluing unit |
1 |
Tubes forming unit |
1 |
Driving tearing-off unit |
1 |
Delivery and counting unit |
1 |
Electrical system |
1 ( Schneider from France ) |
Bearing |
(NSK from Japan) |
Compressor |
1 |
Servo motors |
4 |
