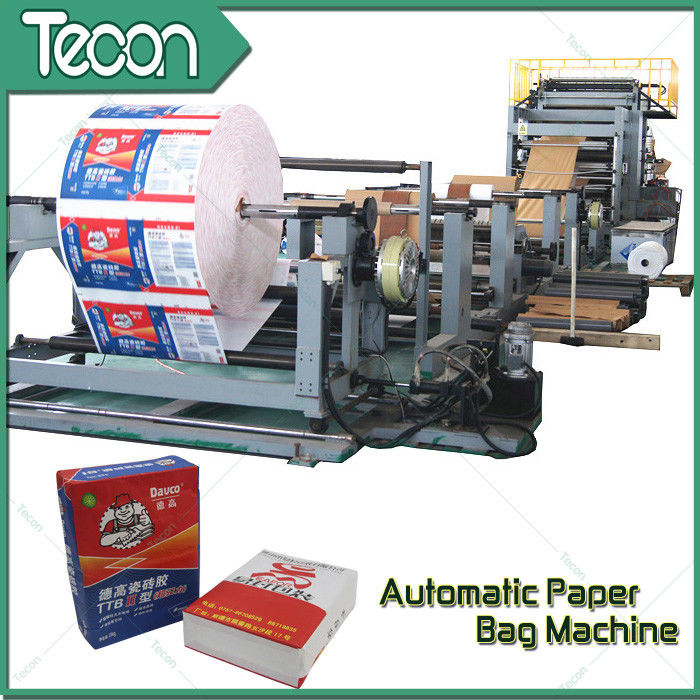

50KG Kraft Sack Making Machine , Paper Bag Production Line For Cement Bag

50KG Kraft Sack Making Machine , Paper Bag Production Line For Cement Bag

50KG Kraft Sack Making Machine , Paper Bag Production Line For Cement Bag

Product Details:

Place of Origin: China
Brand Name: Tecon
Certification: CE
Model Number: ZT Serious

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set Machine
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-5 months after received your payment
Payment Terms: T/T or L/C
Supply Ability: 16Pcs Per Year
Contact Now
Detailed Product Description
Gears: Bevel Gear With No.45 Steel Auto Control: Siemens Screen Control
Layer Of Bag: 2 To 5 Ply Printing Technique: 400 Mesh Ceramic Printing Roller
Main Drive Motor: 33kw Warrantly: A Year
Certification: CE Machine Type: Tube Making Machine
Machine Run: Servo Motor Driven Working Hour: 22 Hours/day
Air Consumption: 1,100L/min Total Weight: 30 Tons

Good Quality 50KG Kraft Paper Bag Production Line Manufacturer For Cement Bag




ZT series paper tube making machine can produce multi-ply paper tube. Material paper reels being unwinding automatically, multi-layers paper tube will be formed automatically. Perforation, tearing down, tension control, deviation rectifying, counting is controlled automatically. A multi-color flexo printing machine is connected with this machine, paper tube can get 2-4 color printing.



Brief Introduction of ZT9804S



The ZT9804S tuber machine, which is developed by our company on the basis of ZT9804 standard tuber machine, is added a servo control component on each of the four key processes(printing, perforation, gluing and separation), to form a closed-loop servo control system by the PLC, servo control module, the main frequency traction motor, servo motor group,encoder, color components to ensure that the cutting position of each printing bags matches the color patch of the tube. Through the touch screen, it is easy and visualized to adjust the specification of tube.

When it is on-line printing, ZT01 print unit prints precisely and neatly, and it only needs to replace print roller and its gear. Through adjustment of thorn-ranked knife position, ZT07 separation machine can cut both the ladder-cutting and straight-cutting tubes. Other related adjustments are operated on touch screen, saving of labor and time.

When it is not on-line printing, besides the above characteristics, when requires more high-precision printing quality, it can complete printing by the using of other printing equipments, producing tubes in ZT9804S Tuber machine, expanding the specification of tubes of ZT9804S(400mm-2000mm). Need not to change any specification wheel; all adjustments are operated on the touch screen.

ZT9804S is applicable to producing variety of paper bags, especially when in producing starch paper bags, tea bags, chemical bags and so on, which need frequent specification changing and high-precision printing quality, it can fully play its unique advantages.



Usage and Characteristics
It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.





ZT9802SD Tuber Machine
Operating condition

Working hour 22 hours/day
Design temperature 0~40℃
Design humidity MAX. 95%
Number required 1 unit
Model name ZT9802SD



Performance



Speed

120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length 400~1400 mm
Tube width 320~620 mm
Tube Cut Length 420~1400mm
Number of ply 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller ø196~ø312 mm
Printing width 1300 mm(MAX)
Paper reel width 660~1260 mm
Paper reel diameter Max. 1, 300 mm
Air consumption 1,100L/min
Main drive motor 27kw
Size of whole set 35.3m×2.4m×2.7m( L×W×H)
Total weight 34 T



Composing of the machine
ZT9802SD Tuber Machine

Name Quantity
2-color printing machine 1
Mill roll stands 5
Paper web guide 1
Automatic paper unwinding 1
Auxiliary web guide 1
Perforation unit 1
Cross stepped gluing unit 1
Longitude seam gluing unit 1
Tubes forming unit 1
Driving tearing-off unit 1
Delivery and counting unit 1
Electrical system 1 (Schneider, France)
Bearing (NSK, Japan)
Compressor 1
Servo motors 4









Automatic valve paper bag machine for cement,chemicals and food






Welcome to contact us or visit our factory. We are ready here.
