Place of Origin: | China |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | ZT 9804 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | 3 - 5 Month After Receive The Payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 16 Set Per Year |
Bag Length: | 670 - 1035 Mm | Bag Width: | 420 - 600 Mm |
---|---|---|---|
Production: | 130 - 150 Bags / Min | Ply: | 2 - 4 Paper + 1 PP / PE |
Size Of Machine: | 34.3m X 2.4m X 2.7m | Weight: | 30 Tons |
Color: | User-defined | Type Of Cutting: | Step Cut/ Step Cut + Flat Cut |
High Light: | sack manufacturing machine,paper sack machine |

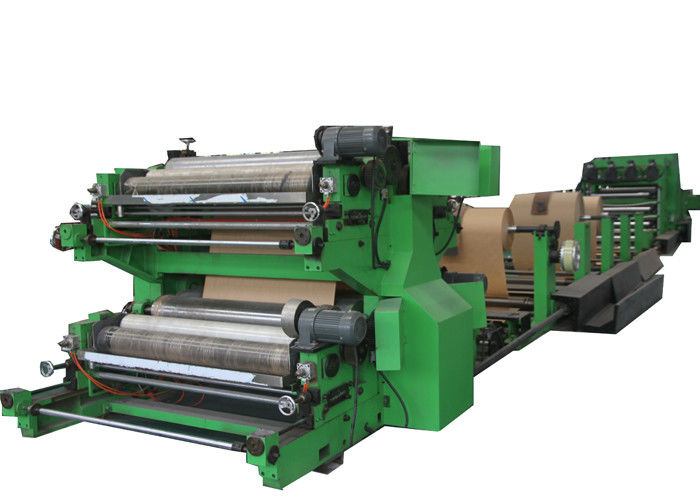

Motor-driven Sack Making Machine For Chemical Powder Bag , Paper Bag Machinery
Main Specification
1.Equipment Model (ZT9804)
2.Tube Length: 400~1400mm
3.Tube Width: 320~620mm
4.Tube Cut Length: 420~1400mm
5.Printing width: 1300 mmMAX
8.Diameter of paper roll: PDø1300 mmMAX
9.Width of paper roll: 660~1260 mm
10.Tube Speed(S): 130 pieces /minMAX
12.Main Drive Motor power: 47KW
13.Gross weight 33T
Technical parameters of our production line:
ZT9804 Tuber Machine
Operating condition
Working hour |
22 hours/day |
Design temperature |
0~40℃ |
Design humidity |
MAX. 95% |
Number required |
1 unit |
Model name |
ZT9804 |
Performance
Speed |
130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
Tube length |
670~1035 mm |
Tube width |
420~600 mm |
Space between tape steps |
20 mm |
Tube Cut Length |
670~1035mm |
Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
Diameter of print roller |
ø144~ø314 mm |
Printing width |
1300 mm(MAX) |
Paper reel width |
860~1260 mm |
Paper reel diameter |
Max. 1, 300 mm |
Air consumption |
1,100L/min |
Main drive motor |
30kw |
Size of whole set |
34.3m×2.4m×2.7m( L×W×H) |
Total weight |
30 T |
Composing of the production line
ZT9804 Tuber Machine
Name |
Quantity |

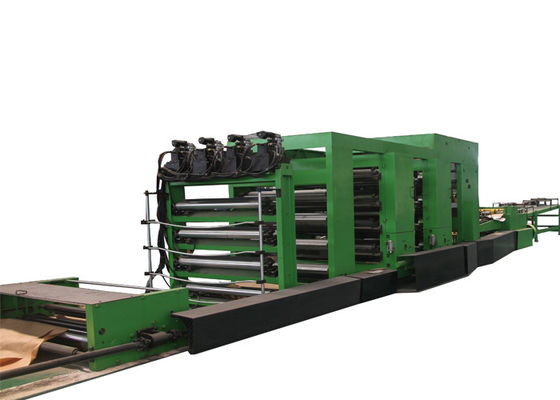

4-color printing machine |
1 |
Paper reel stands |
1 |
Paper web guider |
1 |
Automatic paper rectifier |
1 |
Auxiliary paper driver |
1 |
Perforation machine |
1 |
Latitudinal gluing machine |
1 |
Longitude gluing machine |
1 |
Tubes forming unit |
1 |
Driving tearing-off |
1 |
Delivery & counting line |
1 |
Electric control system |
1 (Schneider, German) |
Air compressor |
1 |

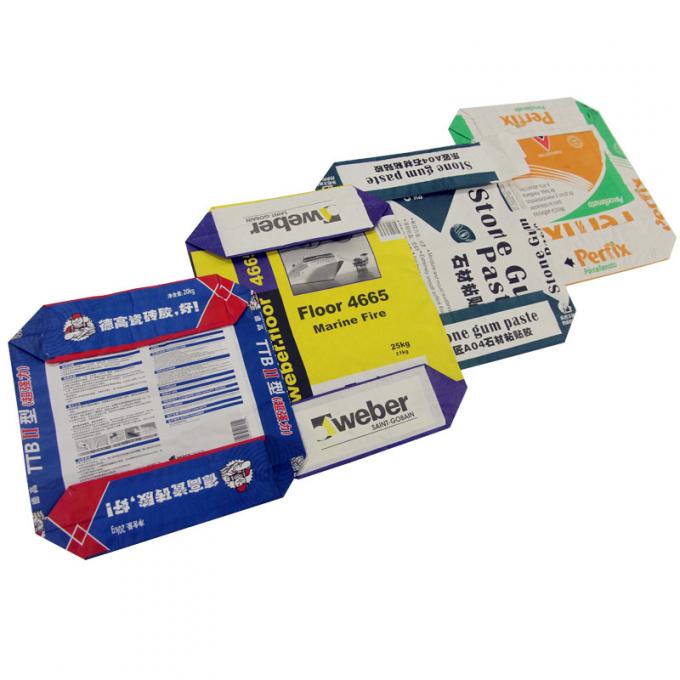

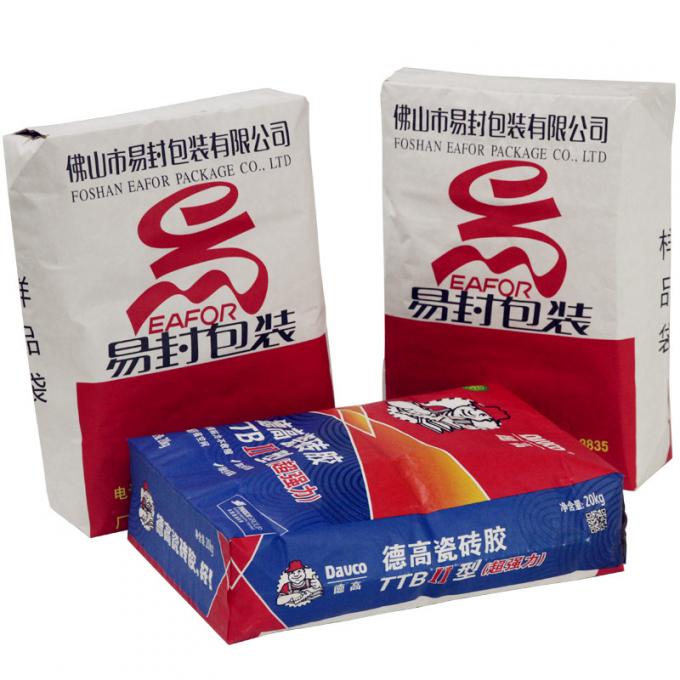

Bag Sample:
