Auto Gule Multistep Cut Bottomer Machine with Servo Driving for Big Cement Paper Bag
Composing of the production line:
High speed feeder machine
Perforation machine
Tube opening unit
Automatic gluing machine
Scrip sealing machine
Bag bottom turning unit
Counting and delivery line
Automatic delivering out unit
Piling up platform
Electric control unit (Schneider, German)
Vacuum-pump(Schneider, German)
HD4913B Performance
|
Speed
|
80~130 bags/min
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|

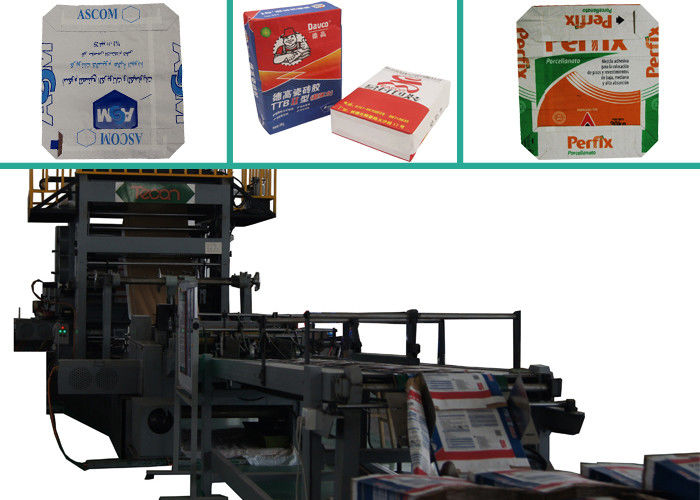

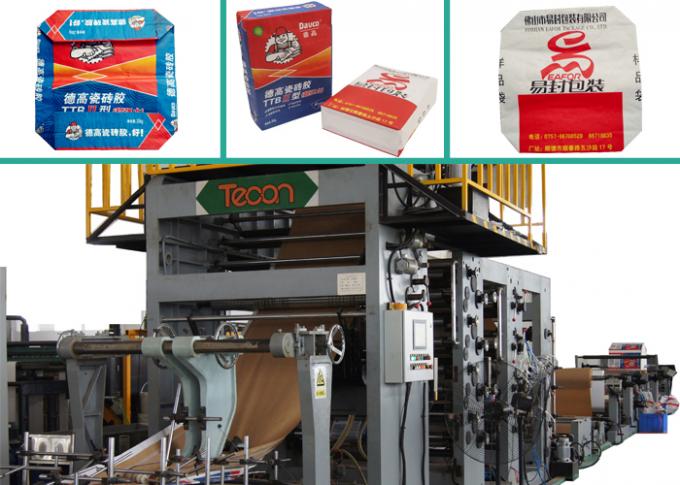

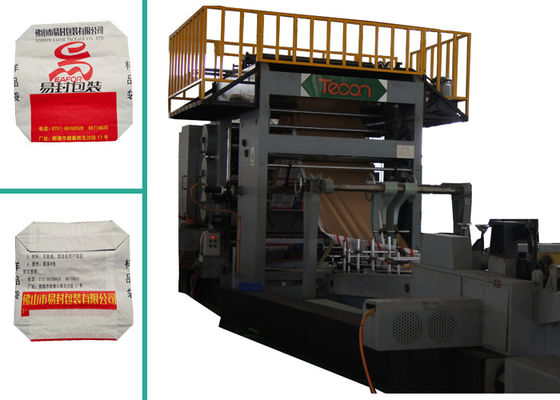

Our Bags Or Machine Details:
Fairs With Customers:
Features of our full-automatic paper bag production line:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 2-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
