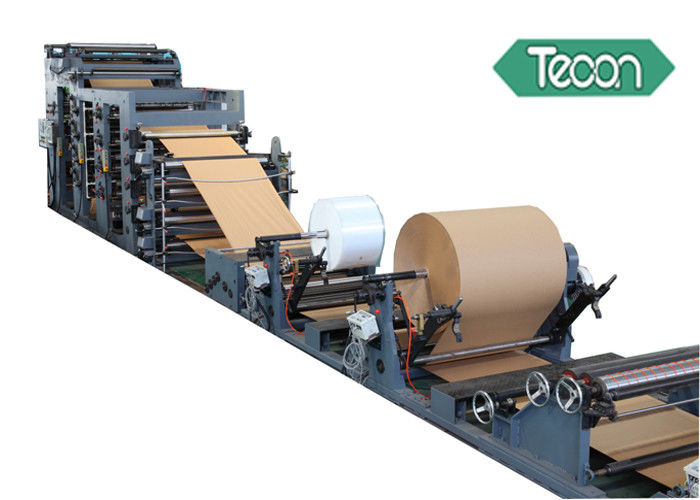

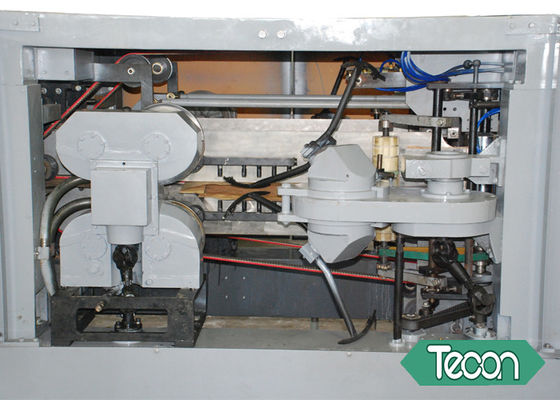

Motor Driven Full Automatice and Energy Conservation Paper Bag Making Machine for Cement
Foshan Tecon Package Machinery CO., LTD, we produce paper bag making machine. The machine is for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.
- Bottomer Machine’s Process Description
1. High-speed Rotary Vacuum Feeding
2. Puncturing Vent Hole and Creasing
3. Tubes Delivery
4. Bottom-Opening
5. Valve Sheet Pasting
6. Automatic Gluing

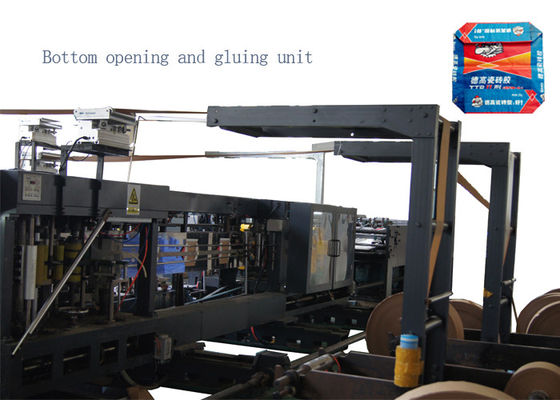

7. Bottom-pasting and Bag Forming
8. Bottom Revising
9. Bags Counting and Palletizing
10. Programmable Logic Controller(PLC)
- Features of our full-automatic paper bag production line:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 4-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
- Technical parameters of our production line:
HD4913 Bottomer Machine
Operating condition
| Working hour |
22 hours/day |
| Design temperature |
0~40℃ |
| Design humidity |
MAX. 95% |
| Number required |
1 unit |
| Model name |
HD4913 |
Performance
| Speed |
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
| Bag length |
520~880mm |
| Bag width |
420~600 mm |
| Bottom width |
90~130mm |
| Bottom open width |
200~380mm |
| Distance between bottom centers |
420~780mm |
| Valve sheet length |
100~250mm |
| Valve sheet width |
120~170mm |
| Main drive motor |
33kw |
| Total weight |
22.7T |
| Size of whole set |
21.3m×2.3.m×1.8m ( L×W×H) |
| Valve sheet reel diameter |
Max.1,300mm |
- Composing of the production line
HD4913 Bottomer Machine
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |
| Counting and delivery line |
1 |
| Automatic delivering out unit |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 (Schneider, German) |
| Vacuum-pump |
1 (Schneider, German) |
1. Technical consultation
2. Detailed design of factory or workshop
3. Project evaluation
3. Training engineers and workers
4. Supplying spare part for long time
5. Installing and testing the whole production line
6. Good after-sale and in-sale servcie
