    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4913B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Ply Wood case
    Delivery Time: 3-5 months after received your payment
    Payment Terms: T/T or L/C
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Electrical System: (Schneider, France) Bearing: (NSK, Japan) No Special Gear
    Bag Type: For Cement, Chemicals, Foods, Milk Powder Output: 5.35 - 50 Million Bags/year
    Competitors: Newlang Or WH Paper Reel Racks: 4.2 - 4 Paper Layers, With One Extra PE / PP Film Available

    Kraft Paper Bag Fabrication Facilities with Flexo Printing with Reinforcing Sheet Unit

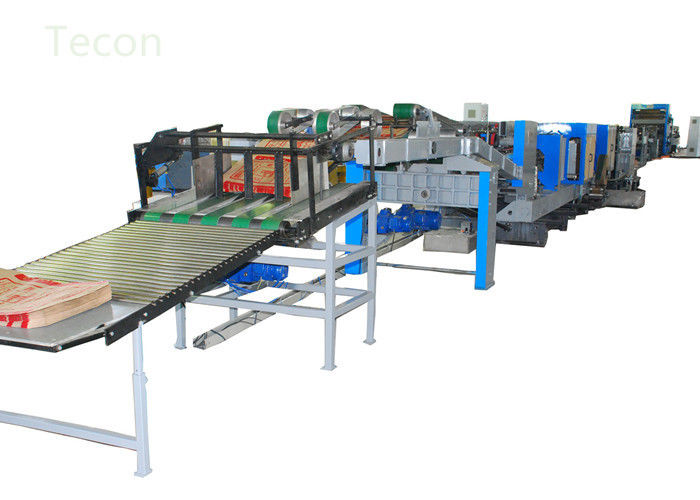

    Features of our full-automatic paper bag production line:

    1. Flat & glued bottom with filling valve;

    2. Different types for cement, chemicals, foods, tea, etc.

    3. 2-color automatic printing

    4. 2~4 paper layers, with one extra PE/PP film available

    5. 35~50 million bags/year

    6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control
    system, Siemens electrical system

    7. Full technical service for installation, training and maintenance

    8. Full solution for factory construction and materials purchase.

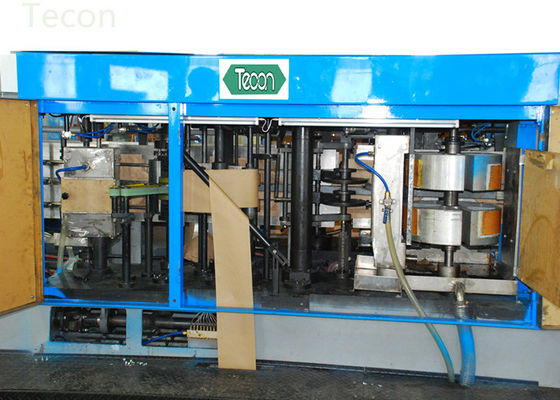

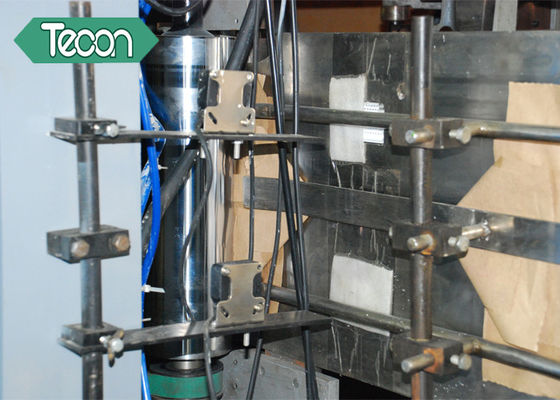

    Bottomer Machines Process Description

    Step1 High-speed Rotary Vacuum Feeding

    Step2 Puncturing Vent Hole and Creasing

    Step3 Tubes Delivery

    Step4 Bottom-Opening

    Step5 Valve Sheet Pasting

    Step6 Automatic Gluing

    Step7 Bottom-pasting and Bag Forming

    Step8 Bottom Revising

    Step9 Bags Counting and Palletizing

    Step10 Programmable Logic Controller(PLC)



    HD4913B Performance



    Speed

    80~130 bags/min

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~130mm

    Bottom open width

    200~380mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~250mm

    Valve sheet width

    120~170mm

    Main drive motor

    33kw

    Total weight

    22.7T

    Size of whole set

    21.3m×2.3.m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm

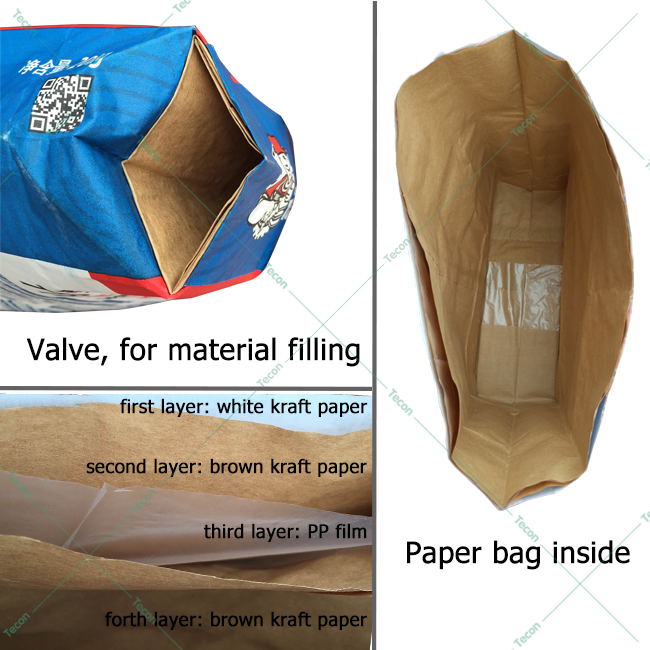

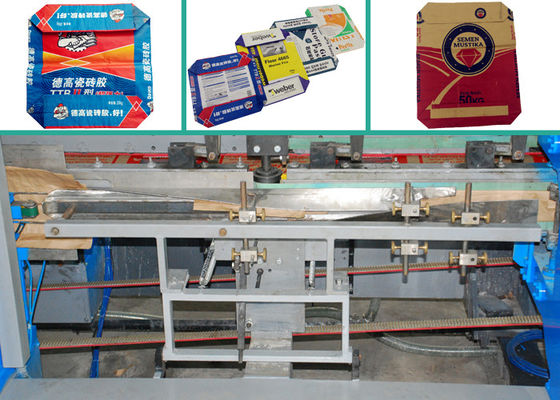

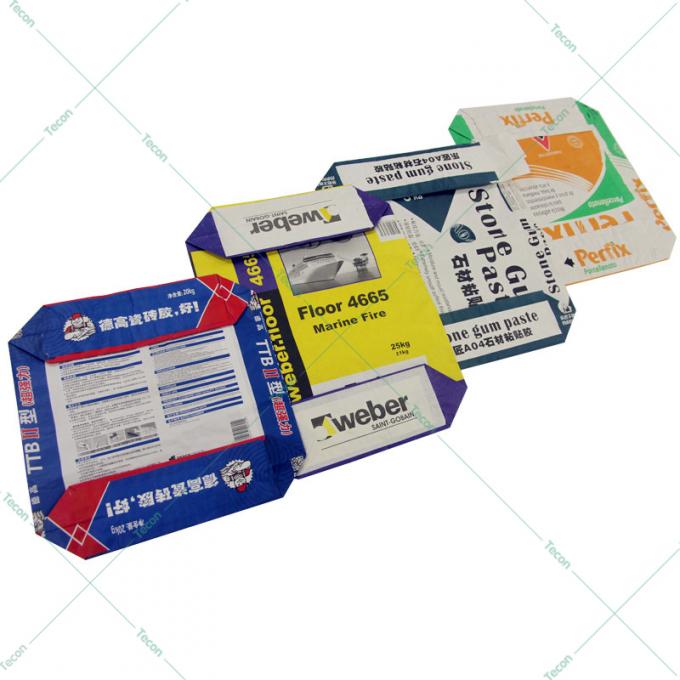

     Sample Bags:

    Kraft Paper Bag Fabrication Facilities Flexo Printing Reinforcing Sheet Unit

    Kraft Paper Bag Fabrication Facilities Flexo Printing Reinforcing Sheet Unit
