Automatic Bottomer Machine Making Seal Pated Chemical Bag Manufacturing Machinery
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
HD4913 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 pcs |
| Price: |
negotiation |
| Packaging Details: |
Standard Wooden Case |
| Delivery Time: |
3 months after received your payment |
| Supply Ability: |
16pcs per year |
Contact Now
Detailed Product Description
| Colour: |
Customized |
Size: |
21.3m X 2.3m X 1.8m |
| Design Temperature: |
0 - 40℃ |
Weight: |
22.7 Tons |
| Air Consumption: |
Air Consumption |
Main Drive Motor: |
33 Kw |
| High Light: |
bottom sealing bag making machine, paper bag making machine |
Automatic Digital Control Bottomer Machine Making Seal Pated Bag for Ceramic Glue Powders
- Features of our full-automatic paper bag production line
- 4-color automatic printing
- Flat & glued bottom with filling valve;
- Different types for cement, chemicals, foods, tea, etc.
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.

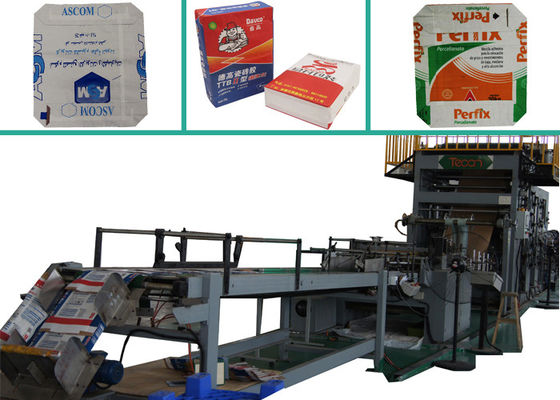

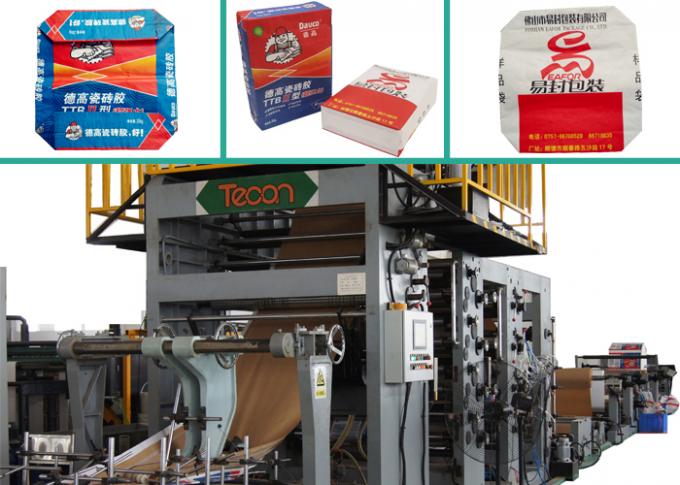

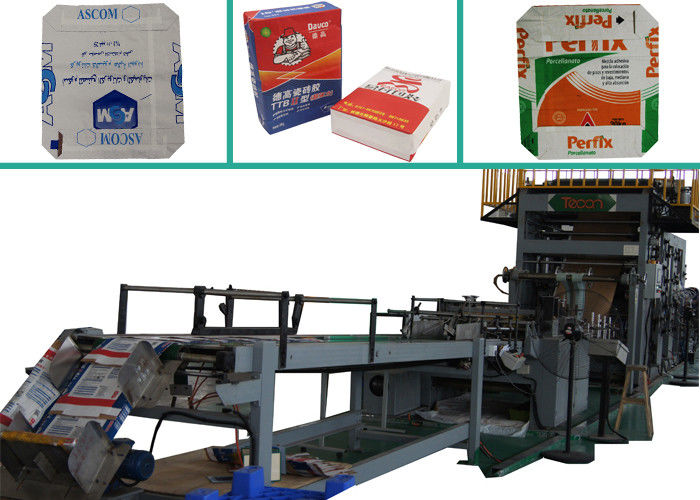

HD4913 Bottomer Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
HD4913
|
Performance
|
Speed
|
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Composing of the production line
HD4913 Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation machine
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
|
Electric control unit
|
1 (Schneider, German)
|
|
Vacuum-pump
|
1 (Schneider, German)
|
