130 Bags Cement Bottom Sealing Bag Making Machine With 2 Colors Printing Machine
HD4913 Bottomer Machine Operating condition
|
Speed
|
80~130 bags/min
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Technical parameters of ZT9802:
|
Item No.
|
Name
|
Unit
|
Specification Value
|
|
1
|
Bag Spew.
|
Length of bag tube
|
㎜
|
Cutoff length + 40
|
|
Cutoff length
|
㎜
|
700 -1050(±4)29 Grades,Each grade 12.5
|
|
Width of bag tube
|
㎜
|
400 – 600(no grade) adjustment
|
|
2
|
Printing spew.
|
Printing length
|
㎜
|
600 – 950
|
|
Printing width
|
㎜
|
1100
|
|
Printing ink
|
|
Ink
|
|
Color category
|
|
two-color overprint, four-color overprint
|
|
Formed thickness
|
㎜
|
6
|
|
3
|
|
Paper layer
|
layer
|
3 – 4
|
|
4
|
|
Production efficiency
|
bag / min
|
100 – 150
|
|
Name of Glue
|
|
Metamorphic Starch, Methyl or CMC
|
|
5
|
Scroll spew.
|
Width of Scroll
|
㎜
|
1220
|
|
Scroll diameter
|
㎜
|
1220
|
|
Diameter of scroll core
|
㎜
|
75 – 80
|
|
6
|
Main motor
|
Main Motor
|
|
Y180L – 4 TYPE, 22KW 1 unit
|
|
Main motor, delta belt
|
|
C-type, length: 2500mm quantity: 6
|
Features of our full-automatic paper bag production line:
1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit

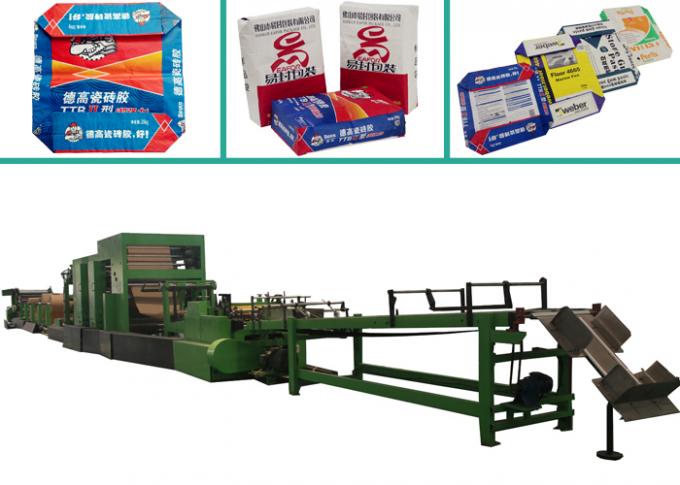

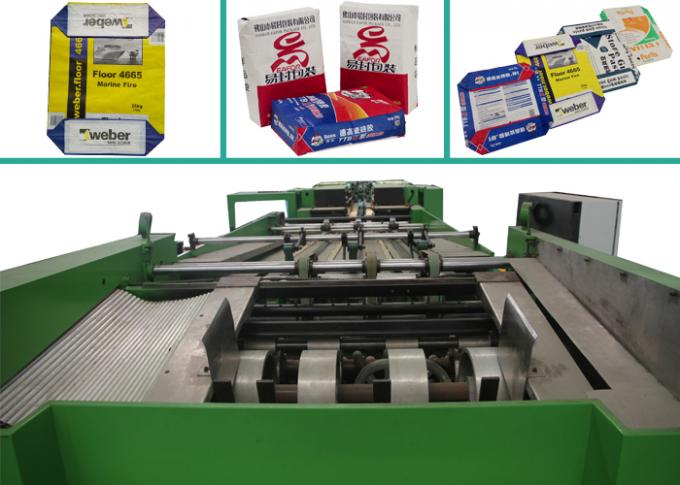

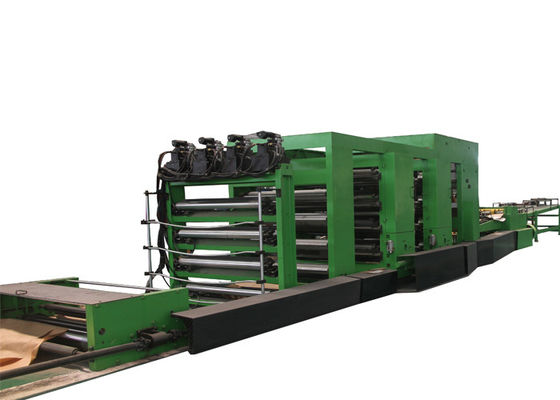

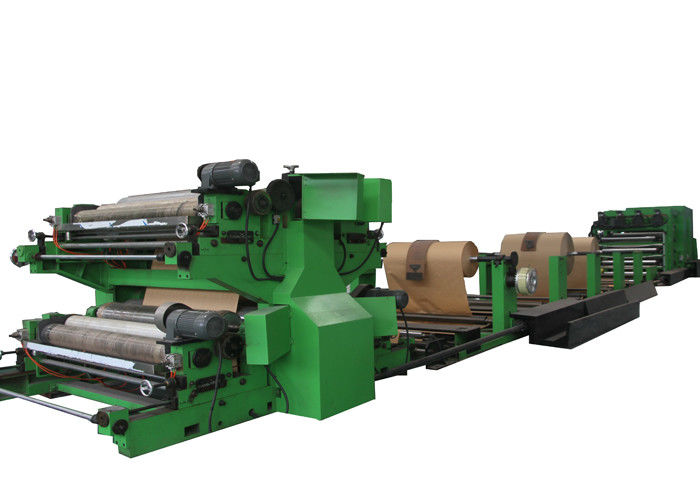

Our machine:
Automatic valve paper bag machine for cement,chemicals and food
Sample bags:
Welcom to contact us or visit our .we are ready here.
