Home ProductsBottom Sealing Bag Making Machine

Energy Conservation Paper Bag Making Machines External Reinforcing

Energy Conservation Paper Bag Making Machines External Reinforcing

    • Energy Conservation Paper Bag Making Machines External Reinforcing
    • Energy Conservation Paper Bag Making Machines External Reinforcing
    • Energy Conservation Paper Bag Making Machines External Reinforcing
    • Energy Conservation Paper Bag Making Machines External Reinforcing
    • Energy Conservation Paper Bag Making Machines External Reinforcing
  • Energy Conservation Paper Bag Making Machines External Reinforcing

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4913B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Ply Wood case
    Delivery Time: 5 months after received your payment
    Payment Terms: T/T or L/C
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Speed: 110 Bags/min Bottom Width: 90~160mm
    Valve Sheet Length *Width: (100-300)﹡(120-340)adjustable Bag Length: 520~880mm
    Number Of Ply: 2~4paper+1 PP/PE Total Weight: 25T
    Printing Color: 4 Colors Output: 35 - 50 Million Bags/year
    Working Hours: 22 Hours/ Day Warrantly: One Year
    Other: Servo System Control

    Energy Conservation Bottom Sealing Bag Making Machine with External Reinforcing





    Brief Introduction:



    Our paper bag production line consists two parts, one is paper tube making machine, another is bottom pasting machine. This production line can make 4 color printing, bottom

    valved paper bags. This kind of bags can be used for packing cement, mortar, chemicals materials and other granule or powder materials. Bags can be 2~4 layers kraft paper

    or clupak paper and one layer of PE material.





    Features of our full-automatic paper bag production line:


    1. High Speed Rotary Feeder
    2. Tube Alignment
    3. Deflector for Irregular Tubes
    4. Bottom Creasing Line Station
    5. Air Vent Perforation
    6. Bottom Opening Unit
    7. Valve Station with Winding Station
    8. Pasting Internal Strengthen Sheet Unit
    9. Bottom Closing Stations
    10. Pasting External Strengthen Sheet Unit







    Composing of the production line HD4913B Bottomer Machine :



    1. High speed feeder machine

    2. Perforation machine

    3. Tube opening unit

    4. Automatic gluing machine

    5. Scrip sealing machine

    6. Bag bottom turning unit

    7. Counting and delivery line

    8. Automatic delivering out unit

    9. Piling up platform

    10. Piling up platform



    HD4913B Bottomer Machine Operating condition





    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4913B


















    Performance

    Speed

    80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~130mm

    Bottom open width

    200~380mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~250mm

    Valve sheet width

    120~170mm

    Main drive motor

    33kw

    Total weight

    22.7T

    Size of whole set

    21.3m×2.3.m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm



    Composing of the production line

    HD4913B Bottomer Machine

    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (Schneider, German)

    Vacuum-pump

    1 (Schneider, German)





    After Sales Service



    We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we



    provide. Also we offer one year guarantee period, paid service for whole life.

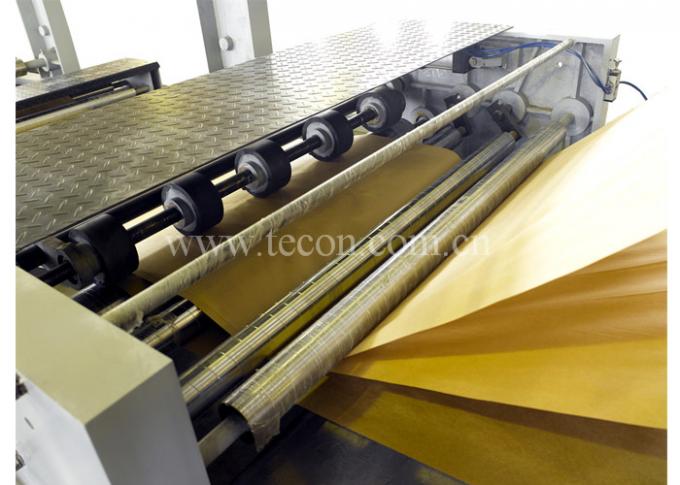

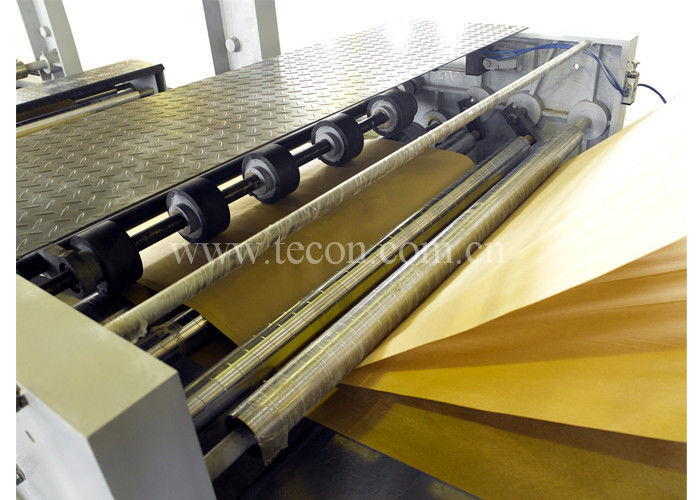

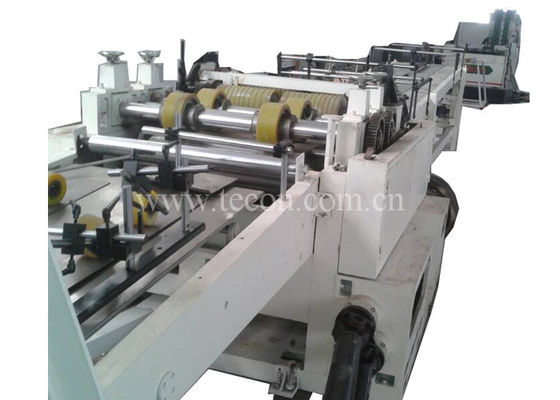

    Our machine:


    Automatic valve paper bag machine for cement,chemicals and food



    Energy Conservation Paper Bag Making Machines External Reinforcing

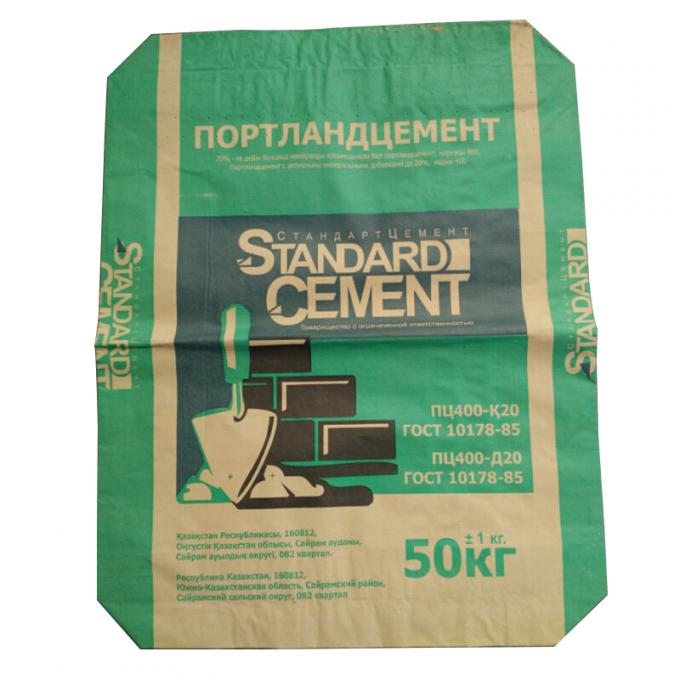

    Sample Bag

     Energy Conservation Paper Bag Making Machines External Reinforcing
