Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags

Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags

    • Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags
    • Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags
    • Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags
    • Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags
  • Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: ZT9802 & HD4916BD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Wooden Case
    Delivery Time: 5 months after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Tuber Machine Size: 34.3m×2.4m×2.7m( L×W×H) Bottom Machine Size: 23.5m×2.3m×1.8m( L×W×H)
    Air Consumption: 1,100L/min Working Hour: 22 Hours/ Day
    Bottomer Speed: MAX 80 Bags/min Bag Length: 390mm -1020 Mm
    Weight: 34 Tons Speed: 120 Pcs/ Min
    High Light:

    bottom seal bag making machine

    ,

    paper bag making machines

    Full Automatical Heavy Product Paper Bag Machine with 4 Colors Print





    • Features of our full-automatic paper bag production line

    1. Flat & glued bottom with filling valve;

    2. Different types for cement, chemicals, foods, tea, etc.

    3. 4-color automatic printing

    4. 2~4 paper layers, with one extra PE/PP film available

    5. 35~50 million bags/year

    6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

    7. Full technical service for installation, training and maintenance

    8. Full solution for factory construction and materials purchase.







    • Tuber Machine’s Process Description

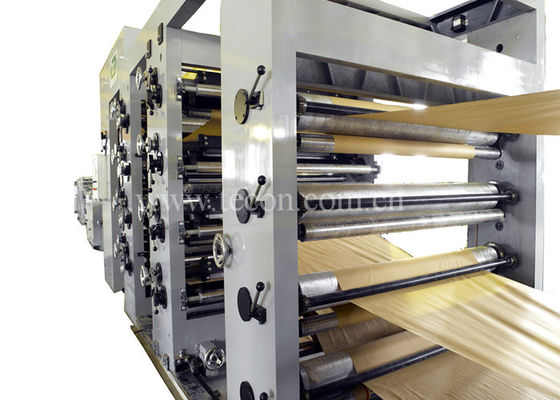

      Step1 Four color Printing machine

      Step2 Paper reel racks

      Step3 Paper web guide

      Step4 Deviation rectifying system

      Step5 Auxiliary driving

      Step6 Latitudinal glue dotting/brushing

      Step7 Tubes forming

      Step8 Main motor, tearing off & tubes delivery

      Step9 Counting delivery & tubes piling up etc.

      Step10 PLC, motors, switch board & electrical

    • Bottomer Machines Process Description

      Step1 High-speed Rotary Vacuum Feeding

      Step2 Puncturing Vent Hole and Creasing

      Step3 Tubes Delivery

      Step4 Bottom-Opening

      Step5 Valve Sheet Pasting

      Step6 Automatic Gluing

      Step7 Bottom-pasting and Bag Forming

      Step8 Bottom Revising

      Step9 Bags Counting and Palletizing

      Step10 Programmable Logic Controller(PLC)





    • Technical parameters of  ZT9802:

     Item No.

    Name

    Unit

    Specification     Value

    1

    Bag Spew.

    Length of bag tube

    Cutoff length + 40

    Cutoff length

    700 -1050(±4)29 Grades,Each grade 12.5

    Width of bag tube

    400 – 600(no grade) adjustment

    2

    Printing spew.

    Printing length

    600 – 950

    Printing width

    1100

    Printing ink



    Ink

    Color category



    two-color overprint, four-color overprint

    Formed thickness

    6

    3



    Paper layer

    layer

    3 – 4

    4



    Production efficiency

    bag / min

    100 – 150

    Name of Glue



    Metamorphic Starch, Methyl or CMC

    5

    Scroll spew.

    Width of Scroll

    1220

    Scroll diameter

    1220

    Diameter of scroll core

    75 – 80

    6

    Main motor

    Main Motor



    Y180L – 4 TYPE, 22KW  1 unit

    Main motor, delta belt



    C-type, length: 2500mm quantity: 6

    7

    Total power

    KW

    30.9

    Weight

    T

    34

    Outline dimensions

    (Length x Width x Height)

    M

    34 x 2.4 x 2.7





    HD4916BD Bottomer Machine

    (bottomer with strength sheet pasting unit)

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4916BD



    Performance



    HD4916BD

    Speed

    MAX 80 bags/min

    Tube Width

    380~620 mm

    Bottom Width

    80~160 mm

    Valve Sheet Length *Width

    (100-300)﹡(120-340)adjustable

    Bag Length

    390~1020 mm

    Bottom Center Distance

    290~860 mm

    Number of ply

    2~4paper+1 PP/PE

    Strength sheet unit

    YES

    Strength sheet  length *width

    (270~520)﹡(80~160)

    Main Drive Motor

    35KW

    Machine size

    23.5﹡2.3﹡1.8(M)

    Machine weight

    N34(T)





    Composing of the production line

    HD4916BD Bottomer Machine

    (bottomer with strength sheet pasting unit)

    Name

    Quantity

    High speed feeder machine

    1

    Perforation of the exhaust outlet unit

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (German Siemens)

    Vacuum-pump

    1 (German Rietschele)

    Bearing

    (Janpan NSK)







    • Service

      (1) Pre-sale service

      We are so glad to welcome the customer to visit our factory and show our machine’s working. And we will take you to our domestic customers’ factory who have bought our machine for watching the machine daily operation. We will haveing meetings with the customers for discussion on the machine, price, service or any part concerns. At the same time, we make meeting records and finally close the deal.



      (2) Medium-sales service

      1. After signing the contract, we will provide the production planning to the customer. In addition to this, we will follow up the production progress and report to the customer production situation regularly.



      2. The part of Inspection. When the machine production finished, we will invite the buyer coming to our factory for watching the machine operation. For example, the buyers have a requestment for producing 1 or 2 various sizes paper bags. We will show the machine making paper bags the same as samples provided by buyers. We will arrange the shipment if the customers satisfied with the machine.



      3. Transportation. Wooden boxes packaging in container, the whole set of machine needs 5x40GP. About the freight forwarder, we can find for you or use your recommended. We will provide a few good service freight forwarders to let you choose.



      (3) After sales service

      We will arrange the engineers to the buyer’s factory for installation, commissioning and training.

      1). The seller shall dispatch 4 qualified engineers to the job site for the erection, commissioning, and training. The buyer shall make available of testing facilities and skilled personnel as well as utilities and all raw materials in the specified quantity and quality.

      2). The buyer should accept the equipment after it reaches the technical performance indicated.

      3). We will give some wearing parts to buyer for free. The warranty of machine is one year.





    • Our Machine

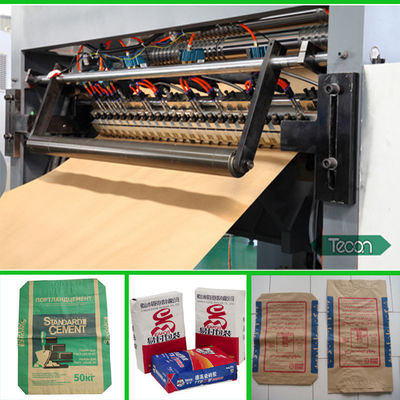

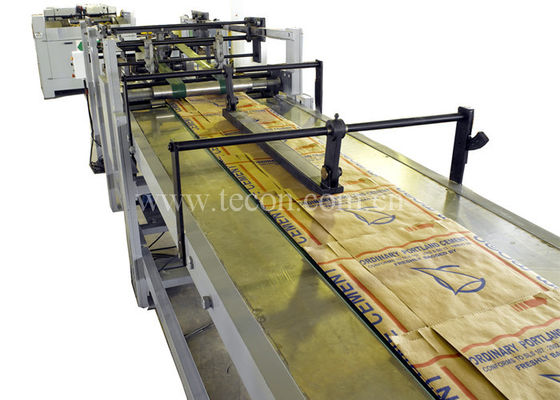

    Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags

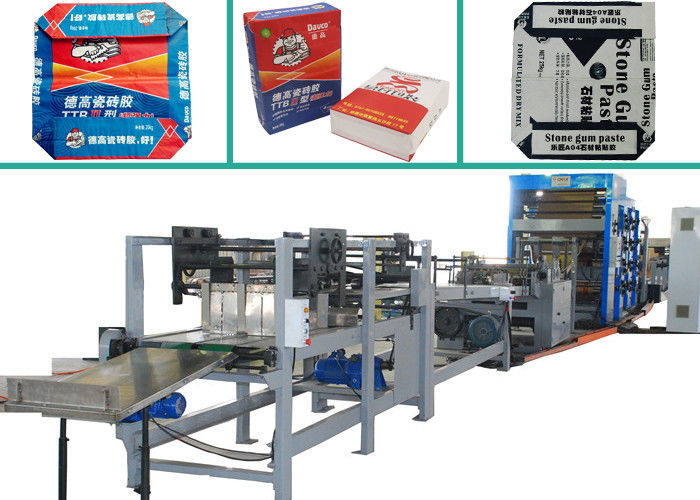

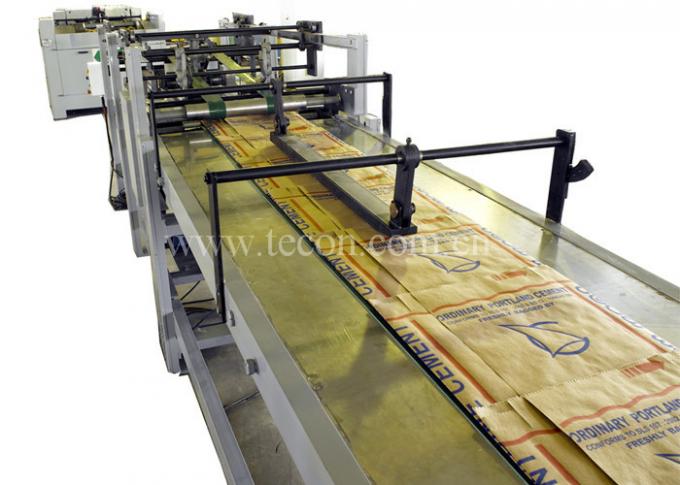

    Automatic Heavy Products Bottom Seal Bag Making Machine With 4 Colors Printing for other bags
