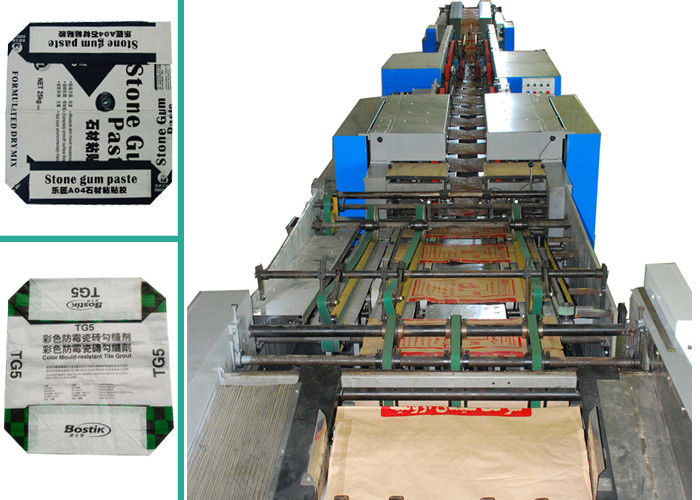

Four Colours Automatic Printing Valve Paper Bags Making Machine For PE Powder PVDF Powder
Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the
first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world
top three in this industry and the only one in China able to design & manufacture the whole production
line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,
Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.
- Technical parameters of our production line:
HD4913B Bottomer Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
HD4913B
|
Performance
|
Speed
|
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Composing of the production line
HD4913B Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation machine
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
|
Electric control unit
|
1 (Schneider, German)
|
|
Vacuum-pump
|
1 (Schneider, German)
|
- Features of our full-automatic paper bag production line:
- 4-color automatic printing
- Flat and glued bottom with filling valve;
- Servo system control or PLC control available, integrated with Photoelectric and Pneumatic control system, Siemens electrical system
- Different types for cement, chemicals, foods, tea.
- 2 - 4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
- Full technical service for installation, training and maintenance
- Full solution for factory construction and materials purchase.
