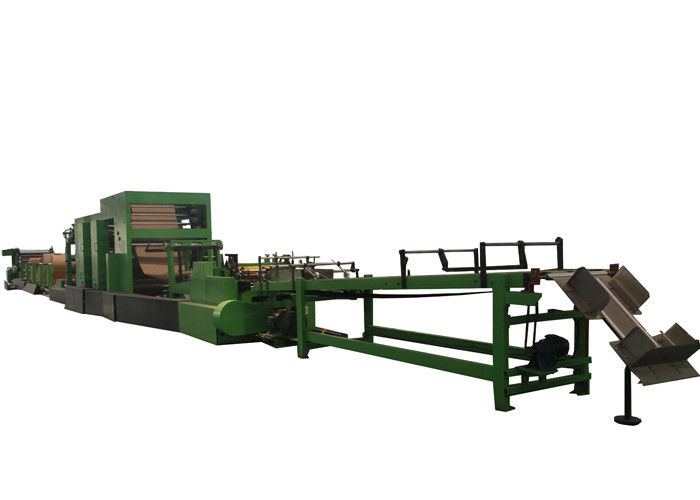

Heavy Duty Sack Manufacturing Machine With France Schneider Electrical System
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
HD4916BD+ZT9802S |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Set |
| Price: |
Negotiation |
| Packaging Details: |
Ply Wood case |
| Delivery Time: |
3-5 months after received your payment |
| Payment Terms: |
T/T or L/C |
| Supply Ability: |
16 Pieces per Year |
Contact Now
Detailed Product Description
| Electrical System: |
(Schneider, France) |
Bearing: |
(NSK, Japan) No Special Gear |
| Other: |
Servo System Control Or PLC Control Available |
Bag Type: |
For Cement, Chemicals, Foods, Tea, Etc. |
| Printing Color: |
2 Colors |
Output: |
5.35~50 Million Bags/year |
| Competitors: |
Newlang Or WH |
Paper Reel Racks: |
4.2~4 Paper Layers, With One Extra PE/PP Film Available |
| High Light: |
sack manufacturing machine, paper sack machine |
Numerical Control Sack Making Machine With France Schneider Electrical System
HD4916BD Performance
|
Speed
|
MAX 80 bags/min
|
|
Tube Width
|
380～620 mm
|
|
Bottom Width
|
80～160 mm
|
|
Valve Sheet Length *Width
|
(100-300)﹡(120-340)adjustable
|
|
Bag Length
|
390～1020 mm
|
|
Bottom Center Distance
|
290～860 mm
|
|
Number of ply
|
2~4paper+1 PP/PE
|
|
Strength sheet unit
|
YES
|
|
Strength sheet length *width
|
(270～520)﹡(80～160)
|
|
Main Drive Motor
|
35 KW
|
|
Machine size
|
23.5 x 2.3 x 1.8(M)
|
|
Machine weight
|
34(T)
|
Composing of the production line:
HD4916BD Bottomer Machine (bottomer with strength sheet pasting unit)
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation of the exhaust outlet unit
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|

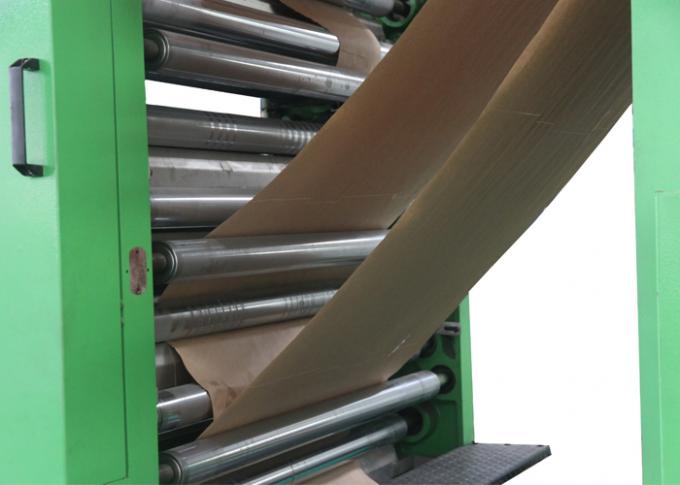

Our machine Details:
Our Customers:
If you are interested in our products, please do not hesitate to contact us.
