Automtic Transport Valve Paper Bag Making Machine With High Speed Production 130 - 150 Bags Per Minute
Technical Informations of the production line:
Model: ZT9802s
|
Speed
|
100~160 tubes/min
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
320~620 mm
|
|
Type of cutting
|
Step cut/ Step cut + flat cut
|
|
Tube Cut Length
|
420~1400mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Main drive motor
|
47kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
33 T
|
Model: HD4916
|
Speed
|
120 bags/min
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~160mm
|
|
Bottom open width
|
200~440mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~300mm(adjustable)
|
|
Valve sheet width
|
120~240mm(adjustable)
|
|
Main drive motor
|
33kw
|
|
Total weight
|
25T
|
|
Size of whole set
|
22m×1.8m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Operating condition
Working Hour : 22 Hours / Day
Design temperature : 0~40℃
Design humidity : MAX. 95%
Number required : 1 unit

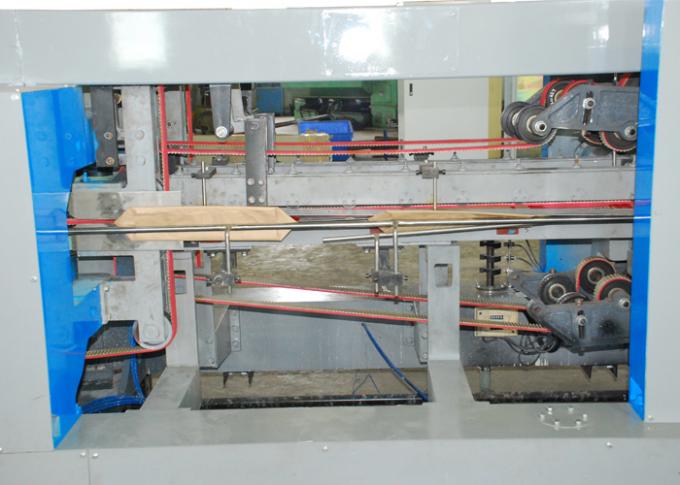

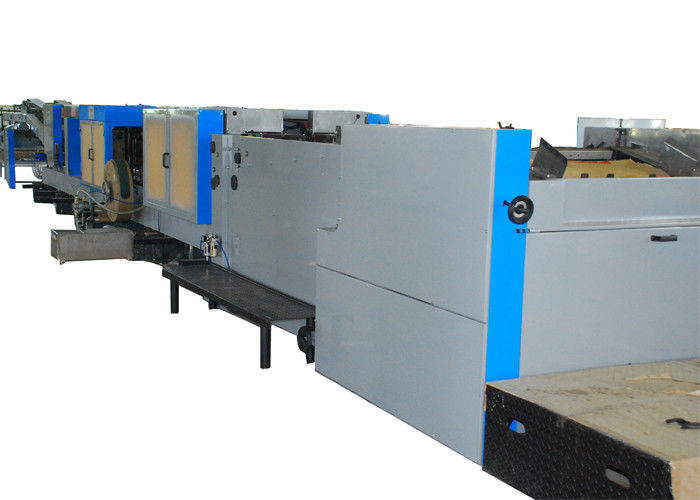

Our machine Details:
Sample bags:
Applications:
ZT9802S is applicable to producing variety of paper bags, especially when in producing starch paper
bags, tea bags, chemical bags and so on, which need frequent specification changing and
high-precision printing quality, it can fully play its unique advantages.
If you are interested in our products, please do not hesitate to
contact us.
