50KG Valve Paper Bag Making Machine for Packaging Cement with Deviation Rectifying System
Company Profile
Foshan Tecon Package Machinery CO., LTD, we produce paper bag making machine. The machine is for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.
Tuber Machine’s Process Description
Step1 Four color Printing machine
Step2 Paper reel racks
Step3 Paper web guide
Step4 Deviation rectifying system
Step5 Auxiliary driving
Step6 Latitudinal glue dotting/brushing
Step7 Tubes forming
Step8 Main motor, tearing off & tubes delivery
Step9 Counting delivery & tubes piling up etc.
Step10 PLC, motors, switch board & electrical
HD4916BD Performance
|
Speed
|
MAX 80 bags/min
|
|
Tube Width
|
380～620 mm
|
|
Bottom Width
|
80～160 mm
|
|
Valve Sheet Length *Width
|
(100-300)﹡(120-340)adjustable
|
|
Bag Length
|
390～1020 mm
|
|
Bottom Center Distance
|
290～860 mm
|
|
Number of ply
|
2~4paper+1 PP/PE
|
|
Strength sheet unit
|
YES
|
|
Strength sheet length *width
|
(270～520)﹡(80～160)
|
|
Main Drive Motor
|
35KW
|
|
Machine size
|
23.5﹡2.3﹡1.8(M)
|
|
Machine weight
|
34(T)
|

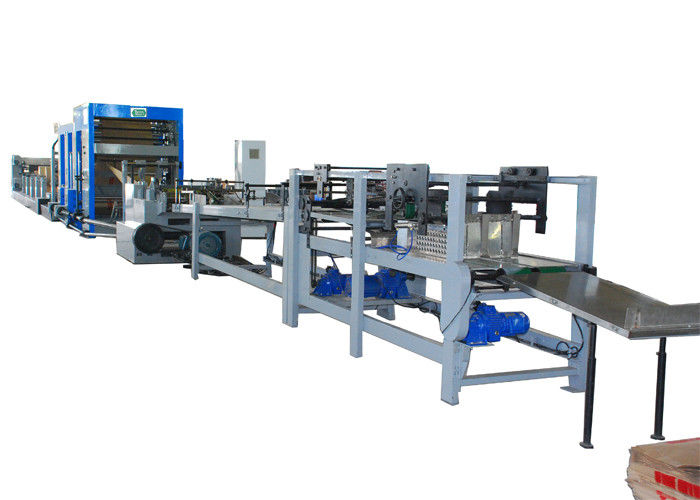

Composing of the production line:
HD4916BD Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation of the exhaust outlet unit
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
After-sales
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. We also provide customers with installation, commissioning and training services. And we offer one year guarantee period, paid service for whole life.

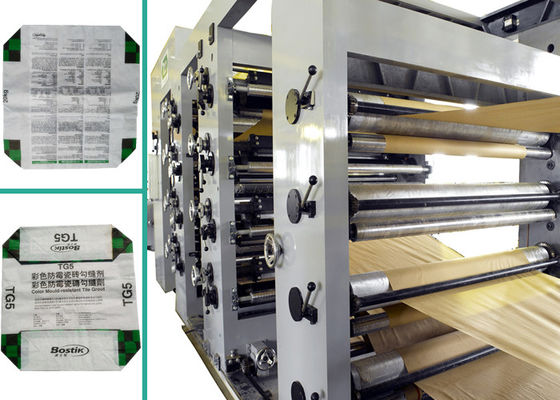

Sample Bags:
If you are interested in our products, please do not hesitate to contact us.
