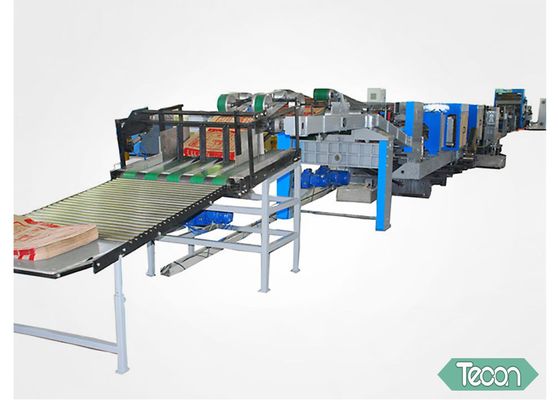

Complete Auto Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film

Complete Auto Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film

    • Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film
    • Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film
    • Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film
    • Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film
  • Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD8916-F-B(HD4916B)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Ply Wood case
    Delivery Time: 3-5 months after received your payment
    Payment Terms: T/T or L/C
    Supply Ability: 16 Pieces per Year
    Contact Now
    Detailed Product Description
    Electrical System: (Schneider, France) Bearing: (NSK, Japan) No Special Gear
    Other: Servo System Control Or PLC Control Available Bag Type: For Cement, Chemicals, Foods, Tea, Etc.
    Printing Color: 4 Colors Output: 5.3 - 50 Million Bags/year
    Finish Product: New Machine Paper Reel Racks: 2 - 4 Paper Layers, With 1 Extra PE/PP Film Available
    High Light:

    sack manufacturing machine

    ,

    bag manufacturing machine

    Complete Auto Control Sack Making Machine With 4 Layer Kraft Paper and 1 Layer PP Film





                        Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film



    HD8916-F-B(HD4916B) Performance:



    Speed

    MAX 100 bags/min

    Bag width

    380~580mm

    Bag length

    370~800mm

    Bottom width

    90mm~150mm

    Distance between bottom centers

    280~680mm

    External reinforcement sheet length

    260~380mm




    Composing of the production line:



    HD8916-F-B(HD4916B) Bottomer Machine (bottomer with strength sheet pasting unit)



    Machine description:



    HD8916-F-B(HD4916B) bottomer is a low cost, high performance valve paper bag bottomer machine,which is used to produce the medium size of variety of cement and chemicals materials valve paper bags.







    Process Description:



    High-speed Rotary Vacuum Feeding → Puncturing Vent Hole and Creasing → Tubes Delivery → Bottom-Opening → Valve Sheet Pasting → Automatic Gluing → Bottom-pasting and Bag Forming → External Reinforcement Sheet Pasting → Bottom Revising → Bags Counting and Palletizing → Programmable Logic Controller(PLC)

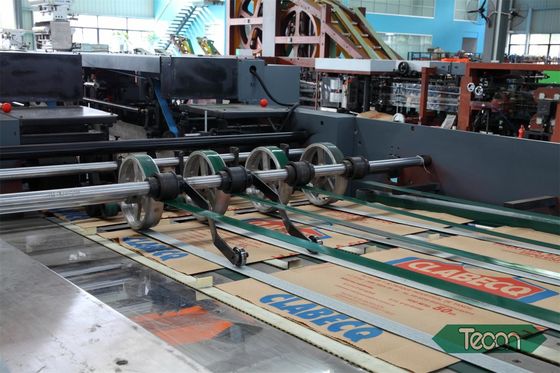

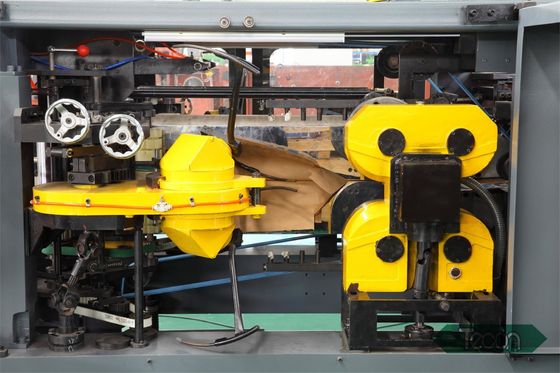

    Our machine Details:

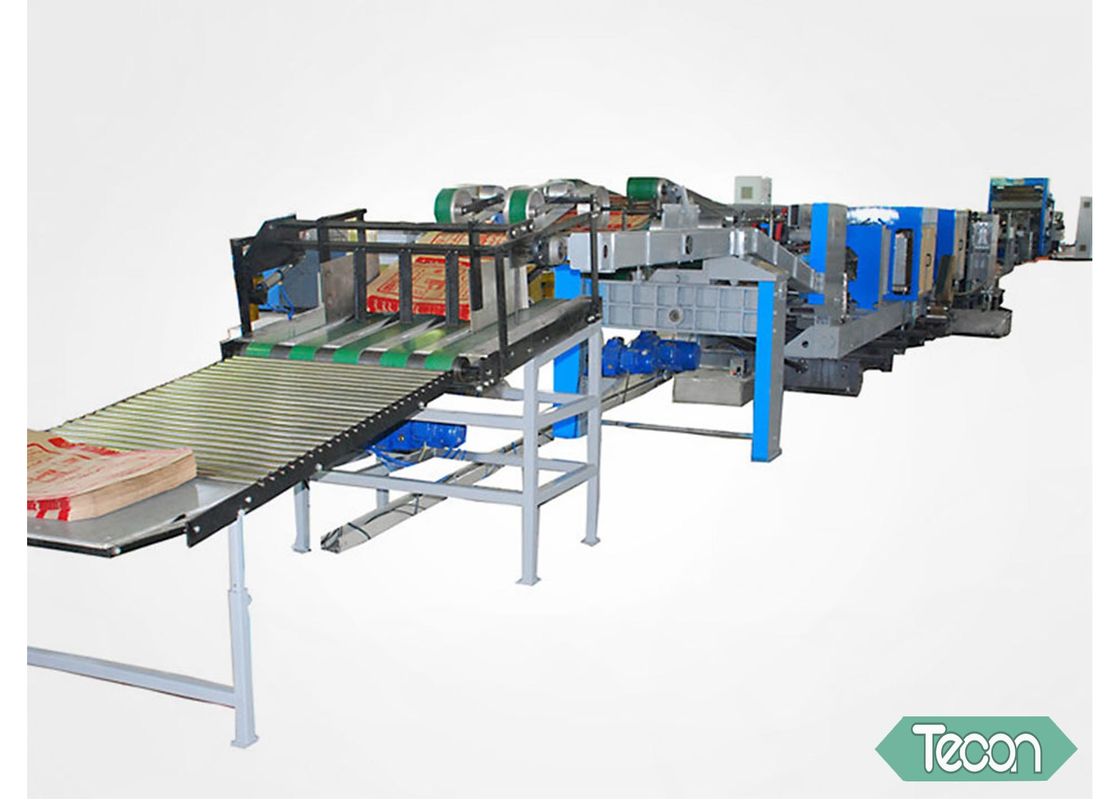

    Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film



    Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film





    Sample bags:





    Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film

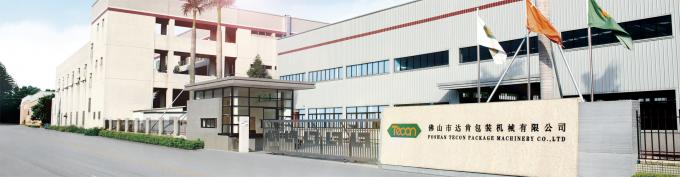

    About our factory:



    Complete Auto  Sack Making Equipment With 4 Layer Kraft Paper and 1 Layer PP Film

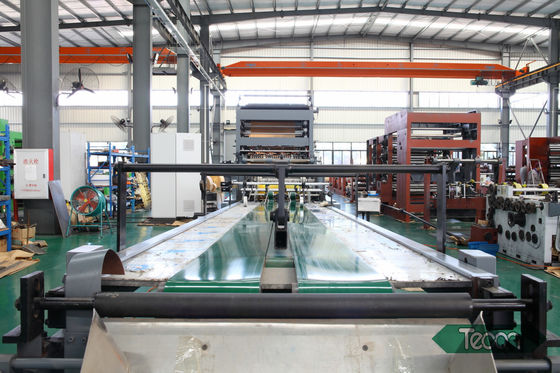

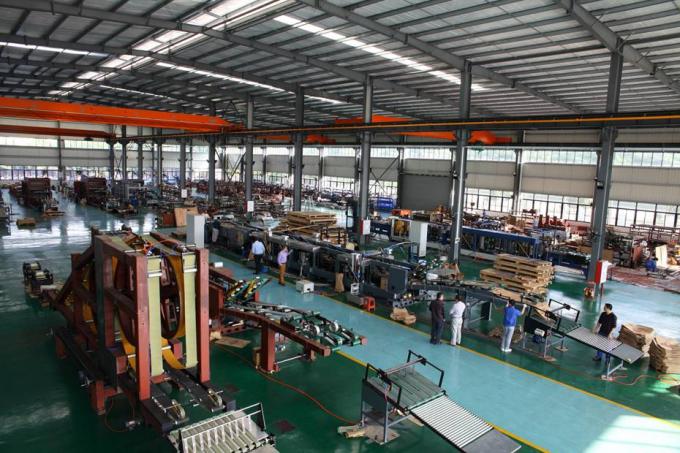

    Production Line:



    Tecon is located in the most active area in Guangdong Province --- Wusha Industrial Zone in Shunde District, Foshan City . Tecon possesses a large workshop which occupies about 8,000m2. With the belief of “Focus on Professional”, Tecon is able to provide kraftpaper bag solution for global powder product manufacturers. So far, Tecon 1 of the top 3 manufacturer producing automatic cement bag making machine.







    If you are interested in our products, please do not hesitate to contact us.
