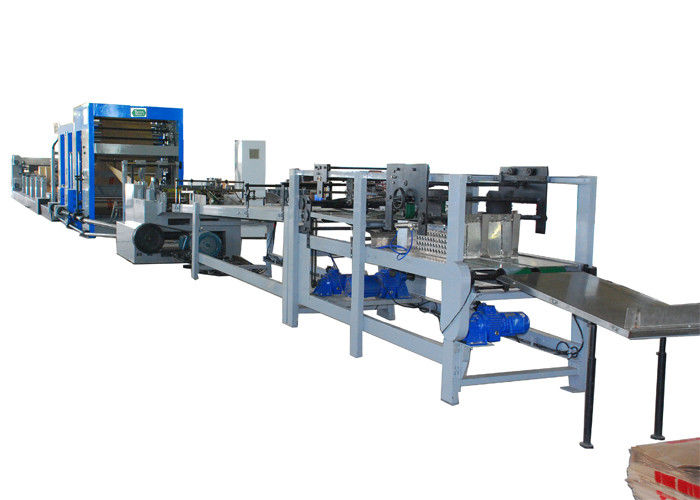

High - Tech Sack Making Machine Paper Bag Fabrication Facilities

High - Tech Sack Making Machine Paper Bag Fabrication Facilities

    • High - Tech Sack Making Machine Paper Bag Fabrication Facilities
    • High - Tech Sack Making Machine Paper Bag Fabrication Facilities
    • High - Tech Sack Making Machine Paper Bag Fabrication Facilities
  • High - Tech Sack Making Machine Paper Bag Fabrication Facilities

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: Tecon China
    Certification: CE
    Model Number: ZT9802S+HD4913

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Standard export Wooden box , 5*40HQ
    Delivery Time: 3-5months
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per year
    Contact Now
    Detailed Product Description
    Manufacturer: Foshan Tecon Working Hour: 22 Hours Per Day
    Tuber Type: ZT9802S Tuber Power: 30kw
    Paper Layer: 2~4 Layers Of Paper Total Weight: 30T
    Bottomer Type: HD4913 Bottomer Power: 33KW
    High Light:

    paper sack machine

    ,

    sack manufacturing machine

    High-Tech Paper Bag Fabrication Facilities for Making Multiwall Paper Bag





    Usage and Characteristics
    It is used for producing valve cement paper bags with printing. The main motor adopts frequency

    conversion motor to save more electricity and regulate speed more freely. The color code tracker

    with good performance makes the sealing and cutting length more accurate and the error smaller.





    Technical parameters of Valve paper bag production line:



    ZT9802Tuber



    1. Equipment Model  (ZT9802S)

    2. Tube Length: 400~1400mm

    3. Tube Width: 320~620mm

    4. Tube Cut Length: 420~1400mm

    5. Printing width: 1300 mmMAX

    8. Diameter of paper roll: PDø1300 mmMAX

    9. Width of paper roll:   660~1260 mm

    10. ube Speed(S): 130 pieces /minMAX

    12. Main Drive Motor power: 47KW

    13. Gross weight 33T

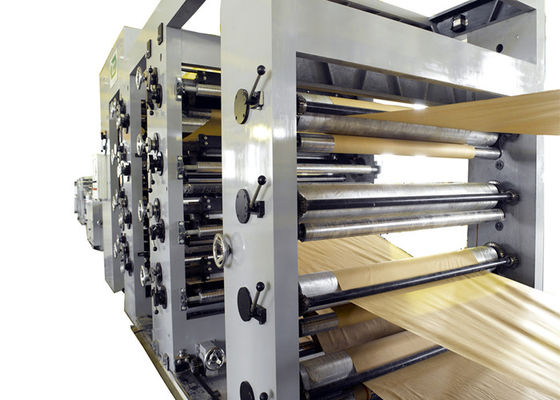

    ZT9804 Tuber Machine compose of following parts

    4-color printing machine 1
    Mill roll stands 5
    Paper web guide  1
    Automatic paper unwinding 1
    Auxiliary web guide  1
    Perforation  unit   1
    Cross stepped gluing unit  1
    Longitude seam gluing unit 1
    Tubes forming unit 1
    Driving tearing-off unit  1
    Delivery and counting unit 1
    Electrical system  1
    Bearing     NSK Japan
    Compressor 1



    HD4913 bottomer

    1. Working speed:80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)

    2. Bag length:520~880mm

    3. Bag width420~600 mm

    4. Bottom width:90~130mm

    5. Bottom centers distance:420~780mm

    6. Valve sheet length:100~250mm

    7. Valve sheet width:120~170mm

    8. Main drive motor:33kw

    9. Size of whole set:21.3m×2.3.m×1.8m ( L×W×H)

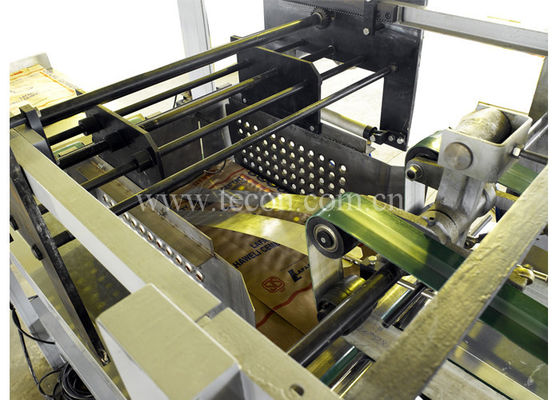

    HD4913 Bottomer machine compose of following parts

    Name Quantity
    High speed feeder machine 1
    Perforation machine 1
    Tube opening unit 1
    Automatic gluing machine 1
    Scrip sealing machine 1
    Bag bottom turning unit 1
    Counting and delivery line 1
    Automatic delivering out unit 1
    Piling up platform 1
    Electric control unit 1
    Vacuum-pump 1







    About us

    Foshan Tecon Package Machinery CO., LTD, we produce paper bag making machine. The machine is for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.

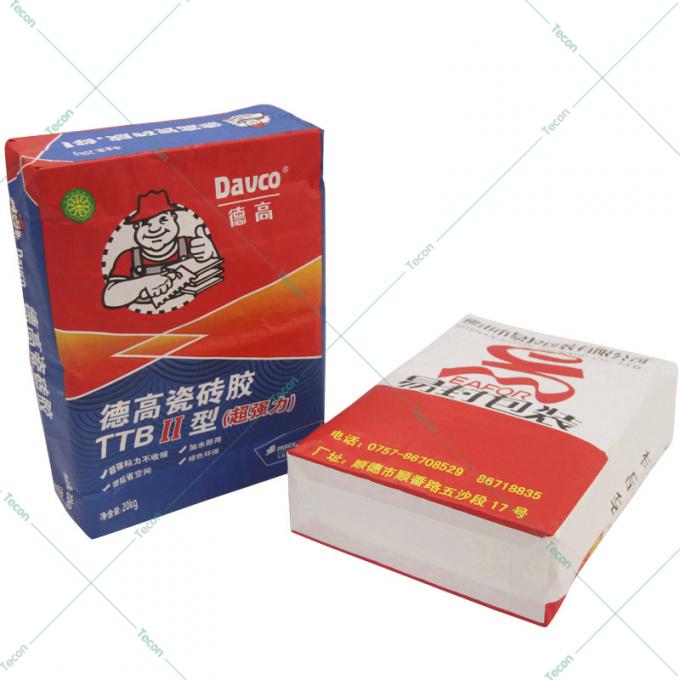

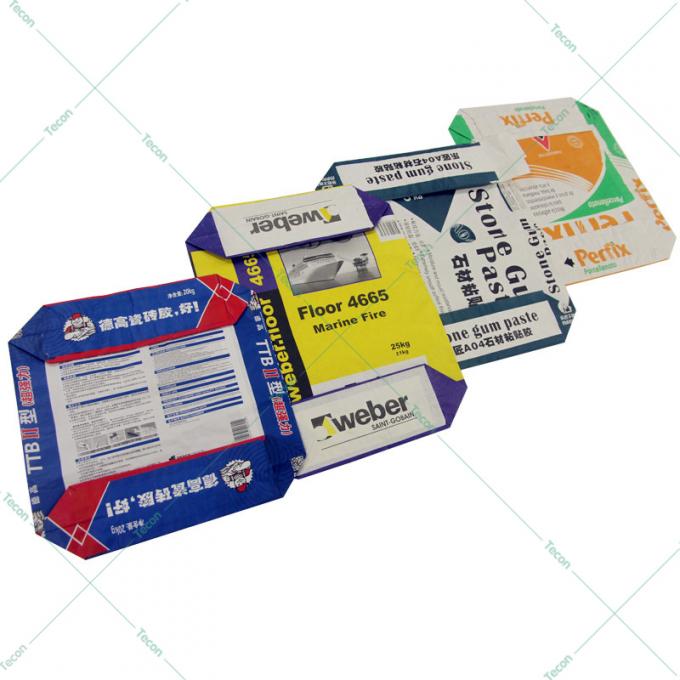

    Sample Bags

    High - Tech Sack Making Machine Paper Bag Fabrication Facilities

    High - Tech Sack Making Machine Paper Bag Fabrication Facilities
