Customized Cement Bag Machine Automation With Bottom Reinforce
Our advantage:
1. Flat & glued bottom with filling valve;
2. Bags are avaliable for packing cement, chemicals, foods, tea, etc.
3. 2-color printing(4-color automatic printing optional)
4. 2~4 layers of paper, with one extra PE/PP film available.
5. Paper production output up to 35~50 million bags per year
6. PLC control or Servo system control available, integrated with Photoelectric & Pneumatic control
system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
Technical parameters :

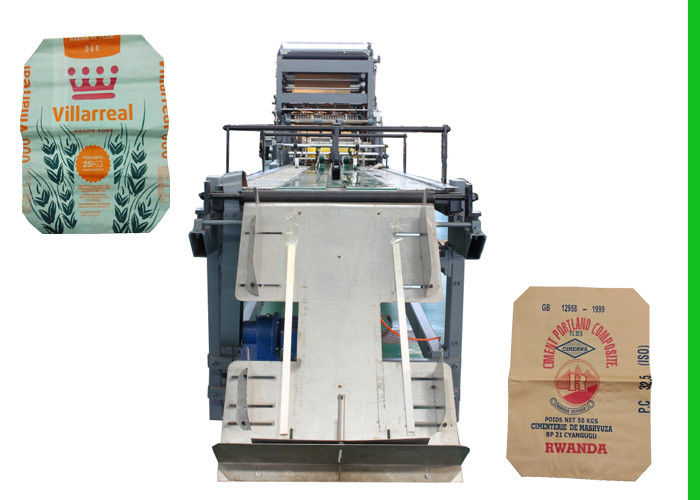

HD4913B Bottomer Machine
Operating condition
| Working hour |
22 hours/day |
| Design temperature |
0~40℃ |
|
Design humidity
|
MAX. 95%
|
Performance
| Speed |
80~130 bags/min(Depends on paper quality,
number of ply and operators’ skill.)
|
| Bag length |
520~880mm |
| Bag width |
420~600 mm |
| Bottom width |
90~130mm |
| Bottom open width |
200~380mm |
| Distance between bottom centers |
420~780mm |
| Valve sheet length |
100~250mm(adjustable) |
| Valve sheet width |
120~170mm(adjustable) |
| Main drive motor |
33kw |
| Total weight |
23T |
| Size of whole set |
22m×1.8m×1.8m ( L×W×H) |
| Valve sheet reel diameter |
Max.1,300mm |
Composing of the machine
HD4916 Bottomer Machine
1 set High speed feeder machine
1 set Perforation machine
1 set Tube opening unit
1 set Automatic gluing machine
1 set Scrip sealing machine
1 set Bag bottom turning unit
1 set Counting and delivery line
1 set Automatic delivering out unit
1 set Piling up platform
1 set Electric control unit (Schneider, German)
1 set Schneider, German Vacuum-pump.
Why chose us?
Foshan Tecon is a high tech equipment manufacturer. In 1996,We designed the first production line for
valve paper sack (Cement bag production line).
The leading product of our company is the "high-speed automatic cement bag making machine".
It is composed of a tuber machine and a bottomer machine.

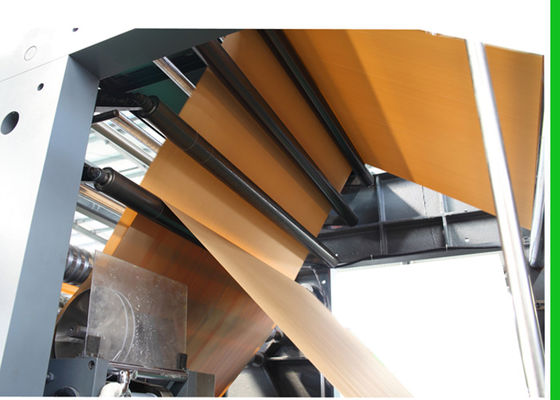

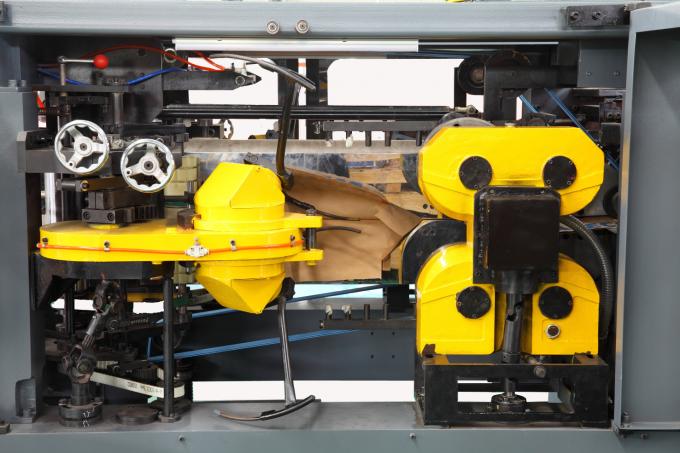

Our machine details:

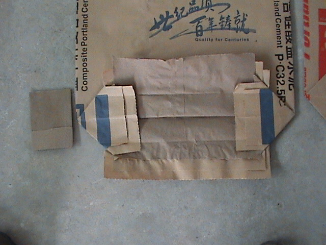

Sample bag detail
If you are interested in cement paper bag making machine, please do not hesitate to contact us.
