Healthy Heat Iron & Ceramic Cement Paper Bag manufacturing Machine 30 Meters Length
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Tecon |
| Certification: |
CE |
| Model Number: |
ZT + HD |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Set Machine |
| Price: |
Negotiation |
| Packaging Details: |
Wooden case |
| Delivery Time: |
3-5 months after received your payment |
| Payment Terms: |
T/T or L/C |
| Supply Ability: |
16Pcs Per Year |
Contact Now
Detailed Product Description
| Gears: |
Bevel Gear |
Differential: |
Micro Adjustment Gear |
| Bag Multiwall: |
More Than 2 Layer |
Printing: |
Online 2 - 4 Colors Printing |
| Controls: |
Automatic Control |
Machine Body: |
Casting Body |
| Height: |
3 Meter |
Length: |
More Than 30 Meters |
| High Light: |
machines for making paper bags, cement bag making machine |
High Quality Competitive CEMENT CIMENT Paper Bag Machinery ZT9804 + HD4913 Whole Production Line
| Brand Name: |
Tecon |
| Model Number: |
ZT9804 |
| Certification: |
CE |
| Place of Origin: |
China |
| Total Weight |
30T |
Main drive motor |
30kw |
| Size |
34.3m×2.4m×2.7m( L×W×H) |
Air consumption |
1,100L/min |
| Working hour |
22 hours/day |
Design temperature |
0~40℃ |
| Minimum Order Quantity: |
1pcs |
| Price: |
negotiation |
| Payment Terms: |
T/T or L/C |
| Supply Ability: |
16pcs per year |
| Delivery Time: |
3 months after received your payment |
| Packaging Details: |
Wooden case |

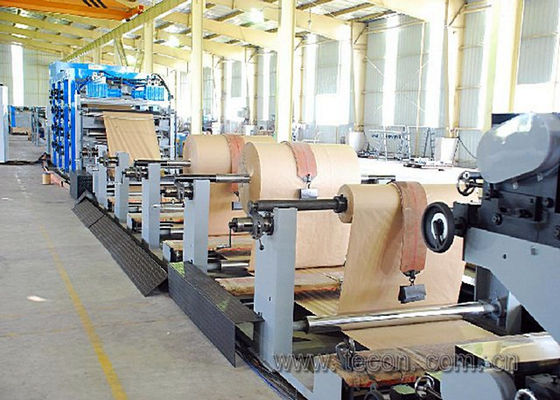

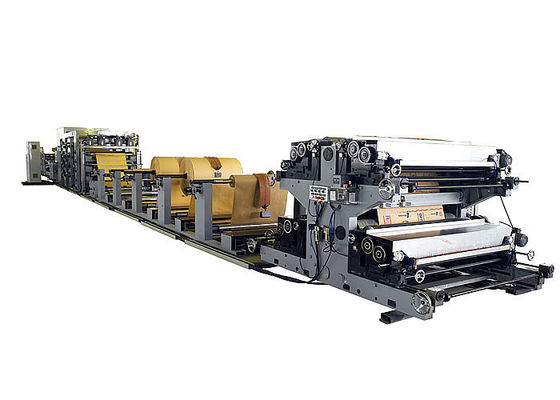

ZT9804 Tuber Machine
Operating condition
| Working hour |
22 hours/day |
| Design temperature |
0~40℃ |
| Design humidity |
MAX. 95% |
| Number required |
1 unit |
| Model name |
ZT9804 |
Performance
|
Speed
|
130~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
| Tube length |
670~1035 mm |
| Tube width |
420~600 mm |
| Space between tape steps |
20 mm |
| Tube Cut Length |
670~1035mm |
| Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
| Diameter of print roller |
ø144～ø314 mm |
| Printing width |
1300 mm(MAX) |
| Paper reel width |
860~1260 mm |
| Paper reel diameter |
Max. 1, 300 mm |
| Air consumption |
1,100L/min |
| Main drive motor |
30kw |
| Size of whole set |
34.3m×2.4m×2.7m( L×W×H) |
| Total weight |
30 T |
HD4913 Bottomer Machine
Operating condition
| Working hour |
22 hours/day |
| Design temperature |
0~40℃ |
| Design humidity |
MAX. 95% |
| Number required |
1 unit |
| Model name |
HD4913 |
Performance
| Speed |
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
| Bag length |
520~880mm |
| Bag width |
420~600 mm |
| Bottom width |
90~130mm |
| Bottom open width |
200~380mm |
| Distance between bottom centers |
420~780mm |
| Valve sheet length |
100~250mm |
| Valve sheet width |
120~170mm |
| Main drive motor |
33kw |
| Total weight |
22.7T |
| Size of whole set |
21.3m×2.3.m×1.8m ( L×W×H) |
| Valve sheet reel diameter |
Max.1,300mm |
Composing of the production line

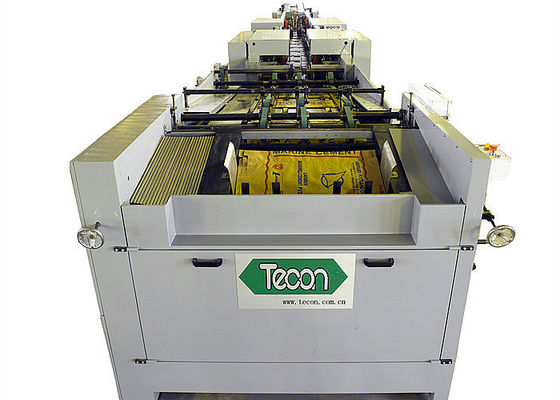

HD4913 Bottomer Machine
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |

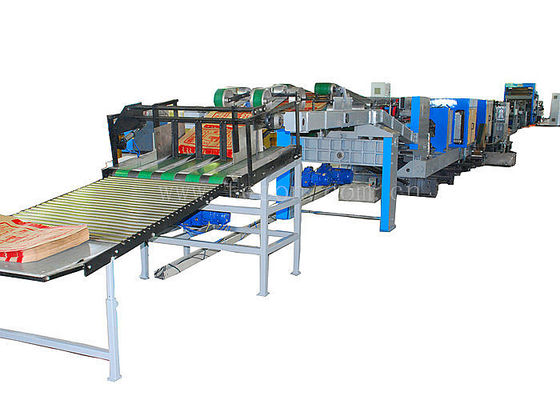

| Counting and delivery line |
1 |
| Automatic delivering out unit |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 (Schneider, German) |
| Vacuum-pump |
1 (Schneider, German) |
Automatic valve paper bag machine for cement
