32KW Cement Paper Bag Making Machine with Servo System Control
Tuber model:ZT9804S
Bottomer model:HD4913

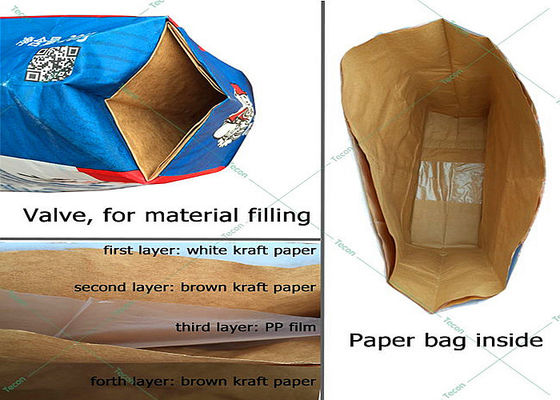

Features of our Karft paper bag making machine:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 4-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control
Technical parameters of our production line:

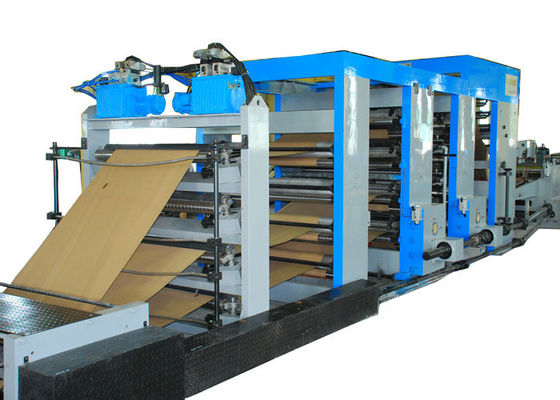

ZT9804S Tuber Machine
Speed |
80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
| Tube length |
400~1400 mm |
| Tube width |
380~620 mm |
| Type of cutting |
Step cut&Flat cut |
| Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
| Printing width |
1300 mm(MAX) |
| Paper reel width |
660~1260 mm |
| Paper reel diameter |
Max. 1, 300 mm |
| Main drive motor |
47kw |
| Size of whole set |
35.3m×2.4m×2.7m( L×W×H) |
| Total weight |
32.5T |

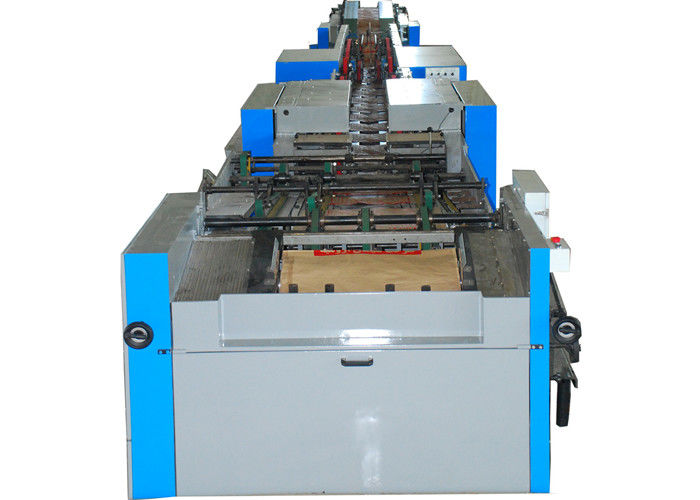

HD4916B Bottomer
| Working speed |
80~130 bags/min |
| Bag width |
420~600 mm |
| Bag length |
520~880mm |
| Bottom width |
90~130mm |
| Distance between bottom centers |
420~780mm |
| Valve sheet length |
100~250mm |
| Valve sheet width |
120~170mm |
| Main drive motor |
33kw |
| Total weight |
22.7T |
ZT9804S Tuber Machine compose of following parts
| Name |
Quantity |

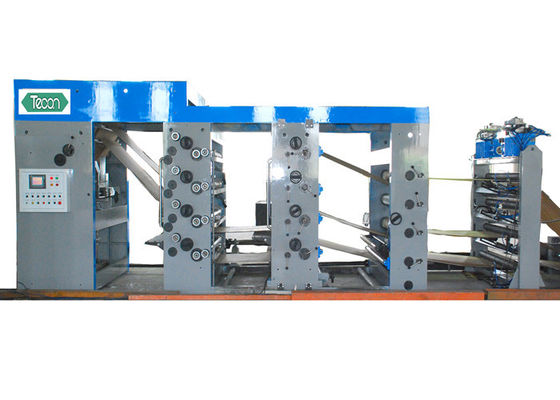

| 4-color printing machine |
1 |
| |
|
| utomatic paper rectifier |
1 |
| Auxiliary paper driver |
1 |
| Perforation unit |
1 |
| Latitudinal gluing machine |
1 |
| Longitude gluing machine |
1 |
| Tubes forming unit |
1 |
| Driving tearing-off unit |
1 |
| Delivery and counting unit |
1 |
| Electric control system |
1 (Schneider) |
| Air compressor |
1 |
| Servo system |
1 |

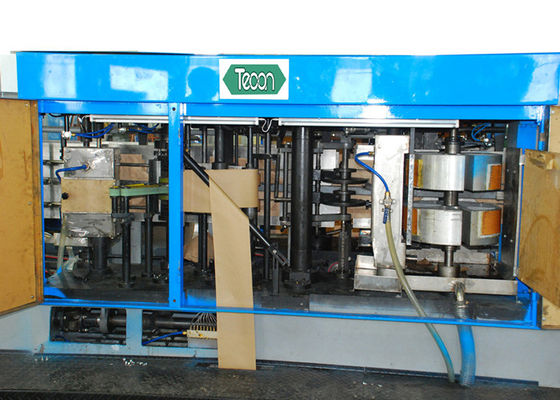

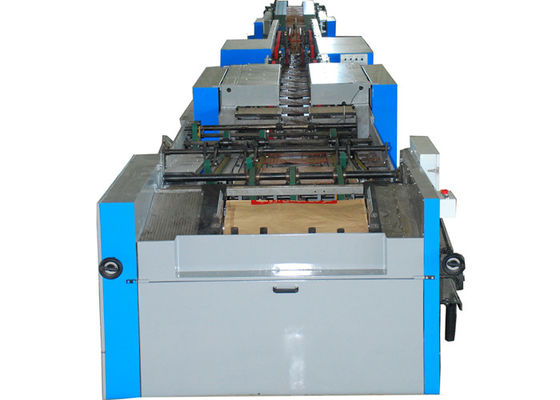

HD4913 Bottomer machine compose of following parts
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |
| Counting and delivery line |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 |
| Delivery and counting unit |
1 |
| Electric control system |
1 (Schneider, German) |
| Vacuum-pump |
1 (Schneider, German) |
| Outside reinforcement sheet |
1 |
