Fully Automatic Sheet-Feeding Cement Paper Bag Machine Production
HD series bottom pasting machine does pasting work to the paper tube. Bottom of paper tube can be folded automatically and pasted with glue, another end of tube also will be glued and valve patches can be pasted at this end. This machine can paste the external or internal reforcing sheet.

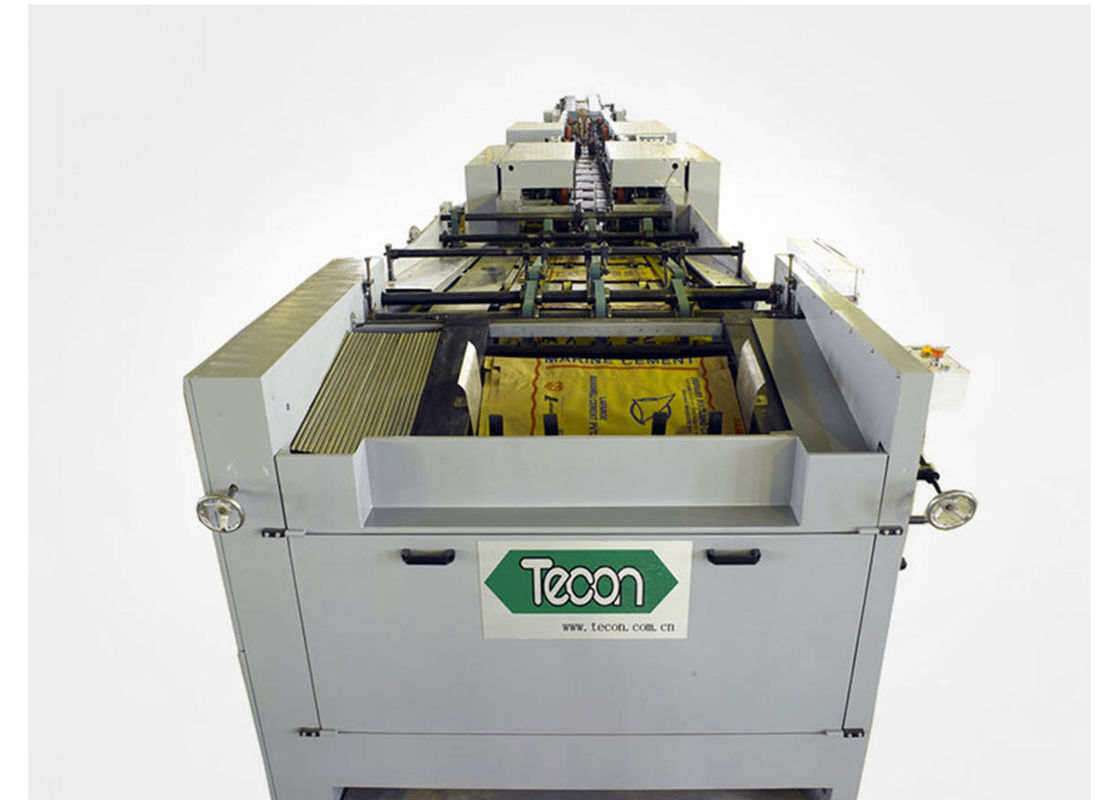

HD8913-F (HD4913) Bottomer Machine (bottomer with strength sheet pasting unit) Operating condition
| Working hour |
22 hours/day |
| Design temperature |
0~40℃ |
| Design humidity |
MAX. 95% |
| Number required |
1 unit |
| Model name |
HD8913-F (HD4913) |
Performance
| Max Speed |
110 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
| Bag length |
510-~780mm |
| Bag width |
430~550mm |
| Bottom width |
90~130mm |
| Bottom open width |
200~440mm |
| Distance between bottom centers |
420~650mm |
| Valve sheet length |
100~300mm(adjustable) |
| Valve sheet width |
120~240mm(adjustable) |
| Main drive motor |
30kw |
| Total weight |
22.7T |
| Size of whole set |
23.0m×2.2m×2.05m ( L×W×H) |
| Valve sheet reel diameter |
Max.1,300mm |
| Number Patch Length |
(2~4)layers＋1PP film |

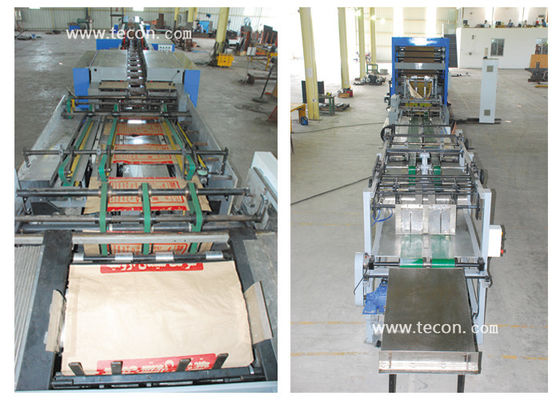

Composing of the production line HD8913-F (HD4913) Bottomer Machine
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |
| Counting and delivery line |
1 |
| Automatic delivering out unit |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 |
| Vacuum-pump |
1 |
Usage and Characteristics
It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.

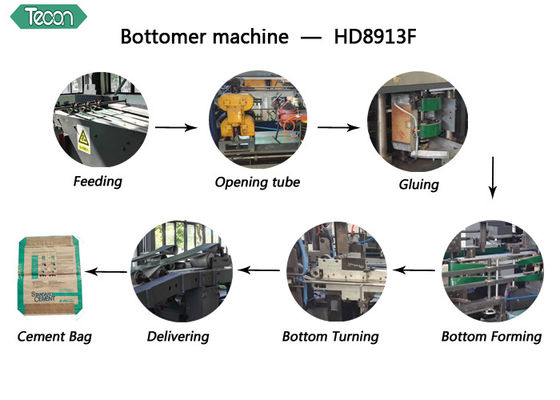

The Detail of Bottomer Machine
Sample bags for cement, chemicals or foods.
Production line staff assignments: 10 persons/line/shift
| Tuber machine total |
4 persons |
| Load paper and ink |
1 persons |
| Turning on power |
1 persons |
| Tubes collecting |
2 persons |
| Bottomer machine total |
6 persons |
| Feeding |
1 persons |
| Gluing and Valve sheet part |
2 persons |
| bags collecting |
2 persons |
| patrol |
1 persons |
Welcome to contact us or visit our factory. We are ready here.
