Place of Origin: | Guangdong,China |
Brand Name: | Tecon China |
Certification: | CE |
Model Number: | ZT9802S+HD4913B |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Standard export Wooden box , 5*40HQ |
Delivery Time: | 3-5months |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per year |
Manufacturer: | Foshan Tecon | Working Hour: | 22 Hours Per Day |
---|---|---|---|
Type: | ZT9802S+HD4913B | Total Power: | 80KW |
Paper Layer: | 2~4 Layers Of Paper | Total Weight: | 55.7T |
Machine Color: | Can Be Customized | Price: | Negotiation |
Bearing: | (NSK, Japan) No Special Gear | Other: | Servo System Control Or PLC Control Available |
Bag Type: | For Cement, Chemicals, Foods, Tea, Etc | Printing Color: | 4 Colors |
Output: | 35 - 50 Million Bags/year | ||
High Light: | automatic paper bag manufacturing machine,automatic paper bag machine |
Tecon Package Ciment Bag Producing Machine with Digital Servo System
Technical parameters of Valve paper bags forming machine:
ZT9802S Tuber Machine compose of following parts
4-color printing machine | 1 |
Mill roll stands | 5 |
Paper web guide | 1 |
Automatic paper unwinding | 1 |
Auxiliary web guide | 1 |
Perforation unit | 1 |
Cross stepped gluing unit | 1 |
Longitude seam gluing unit | 1 |
Tubes forming unit | 1 |
Driving tearing-off unit | 1 |
Delivery and counting unit | 1 |
Electrical system | 1 |
Bearing | NSK Japan |
Compressor | 1 |
HD4913B Bottomer machine compose of following parts
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 |
Vacuum-pump | 1 |
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

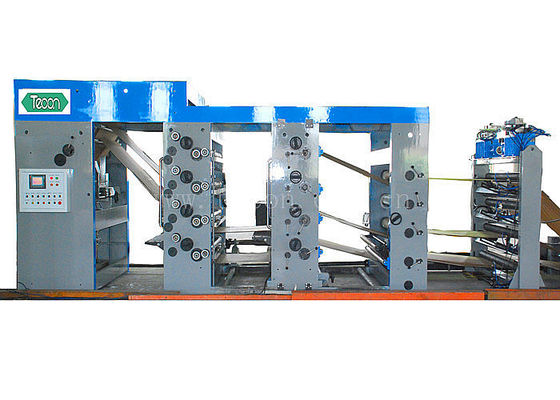

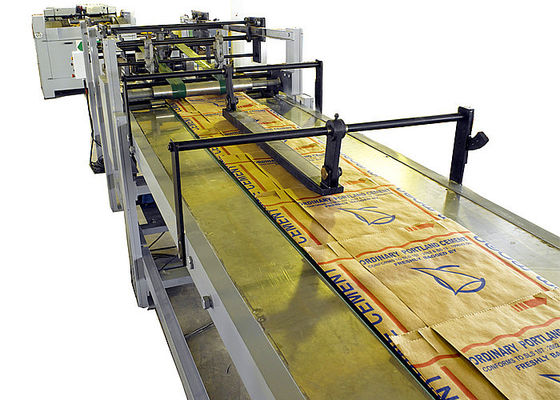

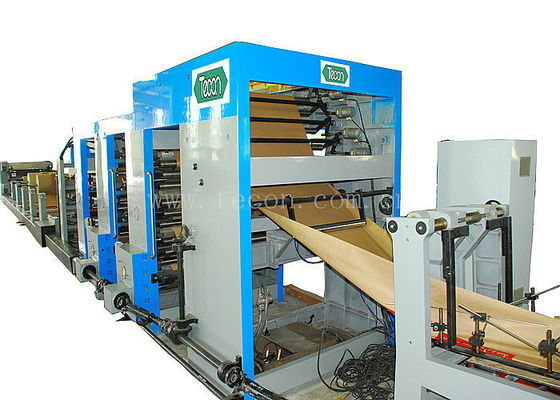

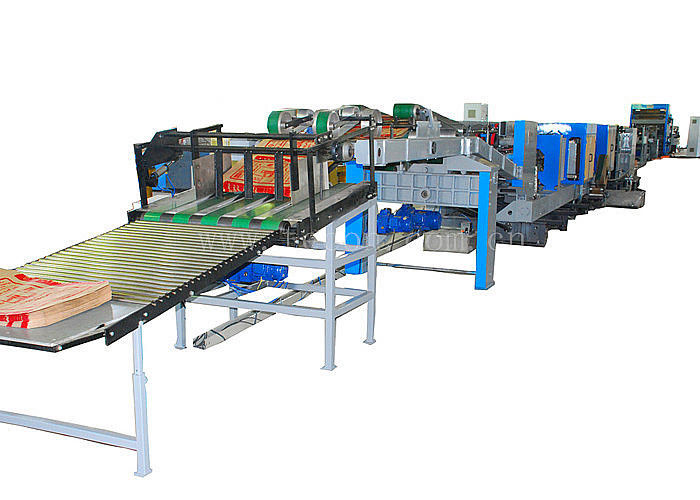

Our Machine details
Sample bags
