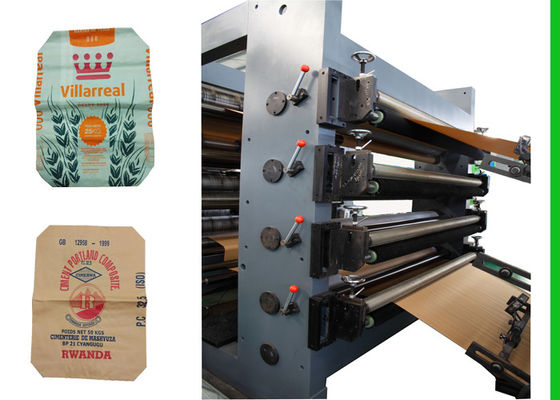

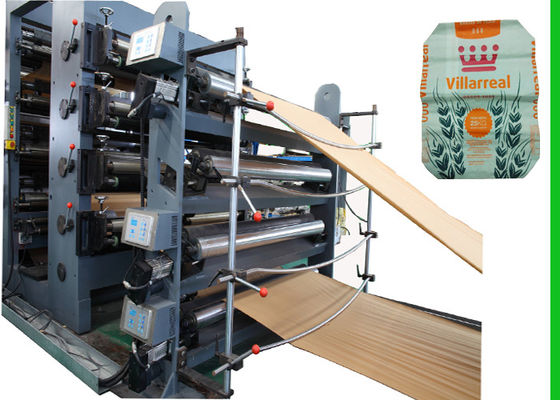

Energy Conservation Kraft Paper Bag Making Machine with 4 Color Printer
Specification of compact line
Basic model: ZT9804&HD4913
Machine technical parameter:
Tuber Speed: 130~150 tubes/min
Bottomer speed: 80~130 bags/min
Diameter of print roller: ø144～ø314 mm
Printing width: 1300 mm(MAX)
Paper reel width: 860~1260 mm
Paper reel diameter: Max. 1, 300 mm
Size of tuber: 34.3m*2.4m*2.7m( L*W*H)
Size of bottomer: 21.3m*2.3.m*1.8m ( L*W*H)
Air consumption: 1,100L/min
Power consumption: 63kw(ZT9804 30KW,HD4913 33KW)
Paper Bag details:
Bag Width: 420~600 mm
Bottom width: 90~130mm
Length: 520~880mm

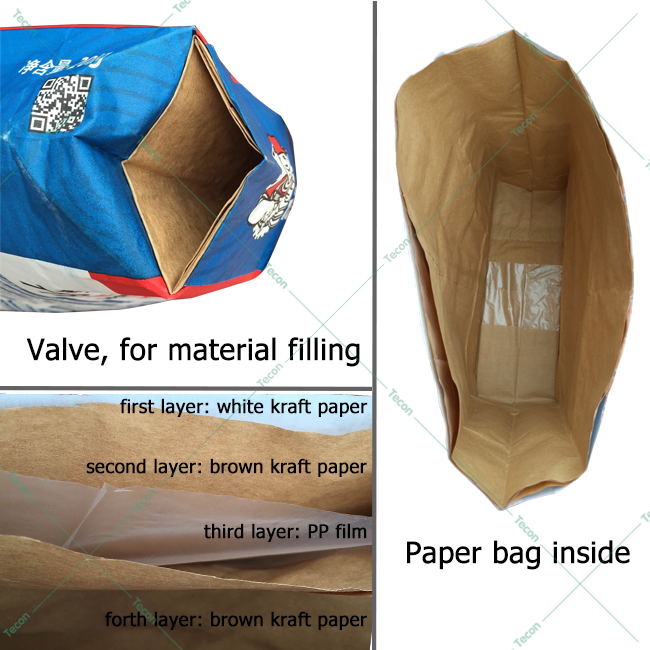

Number of plies: 2~4 papers and 1 PP/PE liner obtional.
Colour printing: 4 colors available (ZT9802 is 2 color printing)
Base paper Bleached or unbleached paper is available, with grammages ranging from 70g sm to 120 gsm. Polycoated plies or HDPE films can be incorporated if required for enhanced moisture protection.

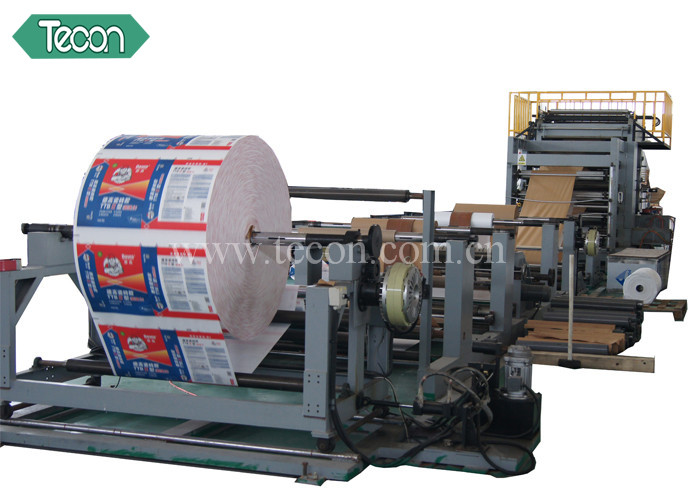

ZT9804 Tuber Machine compose of following parts
| 4-color printing machine |
1 |
| Mill roll stands |
5 |
| Paper web guide |
1 |
| Automatic paper unwinding |
1 |
| Auxiliary web guide |
1 |
| Perforation unit |
1 |
| Cross stepped gluing unit |
1 |
| Longitude seam gluing unit |
1 |
| Tubes forming unit |
1 |
| Driving tearing-off unit |
1 |
| Delivery and counting unit |
1 |
| Electrical system |
1 |
| Bearing |
NSK Japan |
| Compressor |
1 |

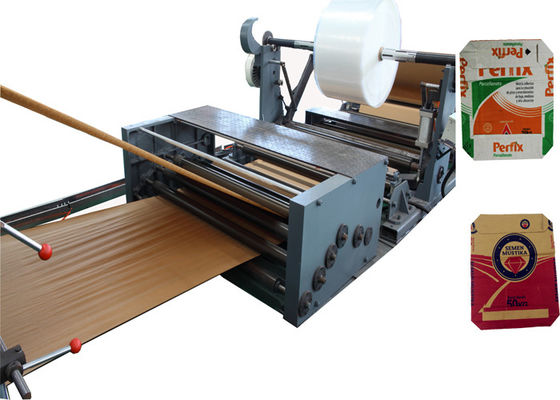

HD4913 Bottomer machine compose of following parts
| Name |
Quantity |
| High speed feeder machine |
1 |
| Perforation machine |
1 |
| Tube opening unit |
1 |
| Automatic gluing machine |
1 |
| Scrip sealing machine |
1 |
| Bag bottom turning unit |
1 |
| Counting and delivery line |
1 |
| Automatic delivering out unit |
1 |
| Piling up platform |
1 |
| Electric control unit |
1 |
| Vacuum-pump |
1
|
Perfect service
1. Technical consultation
2. Detailed design of factory or workshop
3. Project evaluation
3. Training engineers and workers
4. Supplying spare part for long time
5. Installing and testing the whole production line
6. Good after-sale and in-sale servcie

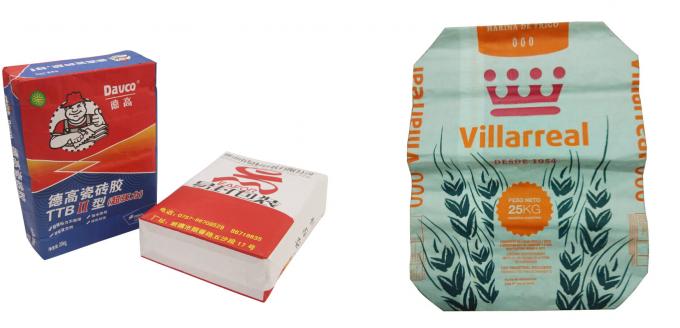

Sample bags
