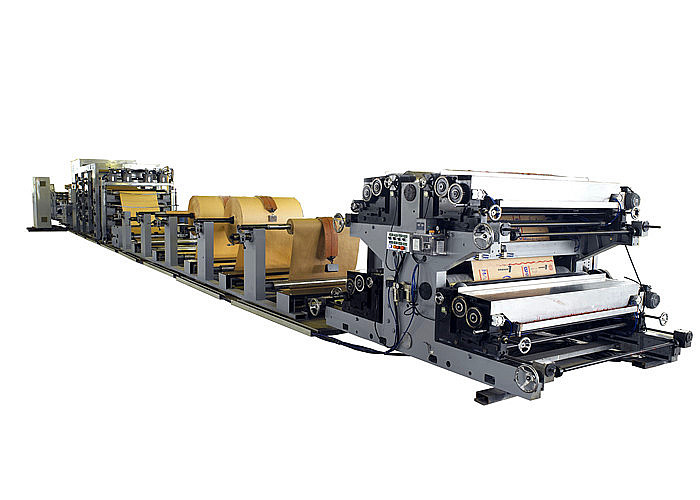

Automatic High Speed Paper Bag Making Machine Make Karft Paper Bag

Automatic High Speed Paper Bag Making Machine Make Karft Paper Bag

    • Automatic High Speed Paper Bag Making Machine  Make Karft Paper Bag
    • Automatic High Speed Paper Bag Making Machine  Make Karft Paper Bag
    • Automatic High Speed Paper Bag Making Machine  Make Karft Paper Bag
    • Automatic High Speed Paper Bag Making Machine  Make Karft Paper Bag
    • Automatic High Speed Paper Bag Making Machine  Make Karft Paper Bag
  • Automatic High Speed Paper Bag Making Machine  Make Karft Paper Bag

    Product Details:

    Place of Origin: China
    Brand Name: China
    Model Number: ZT
    Contact Now
    Detailed Product Description
    Speed: 130~150 Tubes/min Tube Length: 670~1035 Mm
    Tube Width: 420~620 Mm Tube Cut Length: 670~1035mm
    Number Of Ply: 2~4 Paper + 1 PP/PE Printing Width: 1300 Mm(MAX)

    Automatic High Speed Paper Bag Making Machine  Make Karft Paper Bag


    Features of our full-automatic paper bag production line:

    1.  Flat & glued bottom with filling valve;
    2.  Different types for cement, chemicals, foods, tea, etc.
    3. 4-color automatic printing
    4.  2~4 paper layers, with one extra PE/PP film available
    5.   35~50 million bags/year
    6.  Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
    7. Full technical service for installation, training and maintenance
    8. Full solution for factory construction and materials purchase.

    PERFORMANCE:

    ZT9804 Tuber Machine
    Operating condition
    Working hour 22 hours/day
    Design temperature 0~40ºC
    Design humidity MAX. 95%
    Number required 1 unit
    Model name ZT9804





    Performance




    Speed
    130~150 tubes/min(Depends on paper quality, number of ply and operators' skill.)
    Tube length 670~1035 mm
    Tube width 420~620 mm
    Space between tape steps 20 mm
    Tube Cut Length 670~1035mm
    Number of ply 2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
    Diameter of print roller ø144~ø314 mm
    Printing width 1300 mm(MAX)
    Paper reel width 860~1260 mm
    Paper reel diameter Max. 1, 300 mm
    Air consumption 1,100L/min
    Main drive motor 30kw
    Size of whole set 34.3m×2.4m×2.7m( L×W×H)
    Total weight 30 T





    Composing of the production line

    ZT9804 Tuber Machine
    Name Quantity
    4-color printing machine 1
    Paper reel stands 1
    Paper web guider 1
    Automatic paper rectifier 1
    Auxiliary paper driver 1
    Perforation machine 1
    Latitudinal gluing machine 1
    Longitude gluing machine 1
    Tubes forming unit 1
    Driving tearing-off 1
    Delivery & counting line 1
    Electric control system 1 (Schneider, German)
    Air compressor

    1



    Remark:



     An individual machine for automatic valve scrip cutting will be needed for the production. We can provide this machine according to your request, and the cost is separate from the whole production line. This machine is able to produce scrip to meet requirements of 3 bag production lines.

    COMPANY INTRODUCTION:

    Foshan Tecon Package Machinery Co.,Ltd is a modern high-tech company engaging in paper sack
    packaging for many years.our major products are tube machine and bottom machine,used for
    cement,chemical raw material,starch,animal feed etc.
