Automatic Valve Paper Bag Making Machine Flexo Printing Energy Saving
Features of our full-automatic paper bag production line
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system;
Different types for cement, chemicals, foods, tea, etc;
2~4 paper layers, with one extra PE/PP film available;
35~50 million bags/year;
4-color automatic printing;
Flat & glued bottom with filling valve;
Full technical service for installation, training and maintenance;
Full solution for factory construction and materials purchase.
Technical parameters of our production line

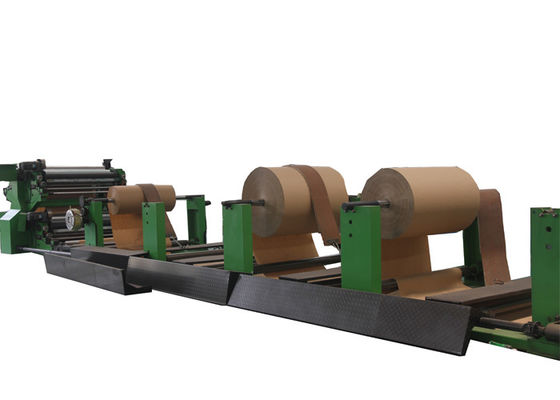

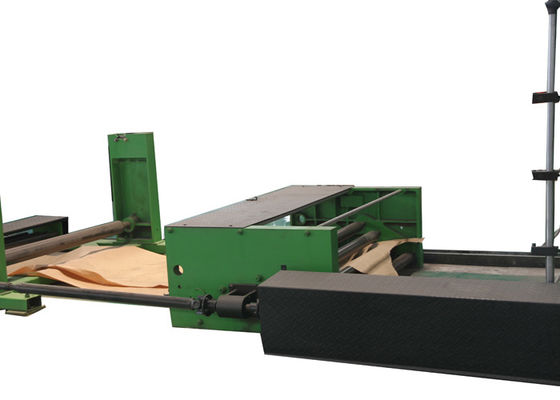

ZT9802SD Tuber Machine Operating condition
Working hour
22 hours/day
Design temperature
0~40℃
Design humidity
MAX. 95%
Number required
1 unit
Model name
ZT9802SD
Performance
Speed
120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length
400~1400 mm
Tube width
320~620 mm
Tube Cut Length
420~1400mm
Number of ply
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Diameter of print roller
ø196～ø312 mm
Printing width
1300 mm(MAX)
Paper reel width
660~1260 mm
Paper reel diameter
Max. 1, 300 mm
Air consumption
1,100L/min
Main drive motor
27kw
Size of whole set
35.3m×2.4m×2.7m( L×W×H)
Total weight
34 T
Composing of the machine ZT9802SD Tuber Machine
Name
Quantity
2-color printing machine
1
Mill roll stands
5
Paper web guide
1
Automatic paper unwinding
1
Auxiliary web guide
1
Perforation unit
1
Cross stepped gluing unit
1
Longitude seam gluing unit
1
Tubes forming unit
1
Driving tearing-off unit
1
Delivery and counting unit
1
Electrical system
1 (Schneider, France)
Bearing
(NSK, Japan)
Compressor
1
Servo motors
4

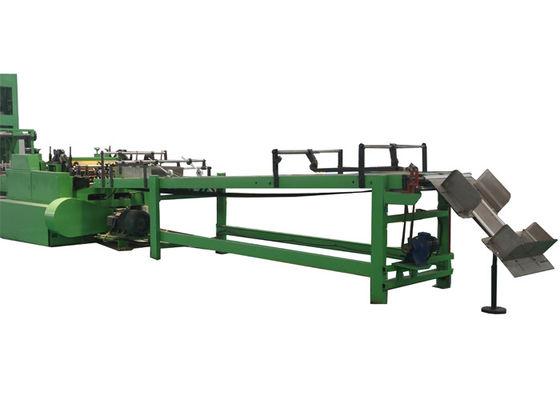

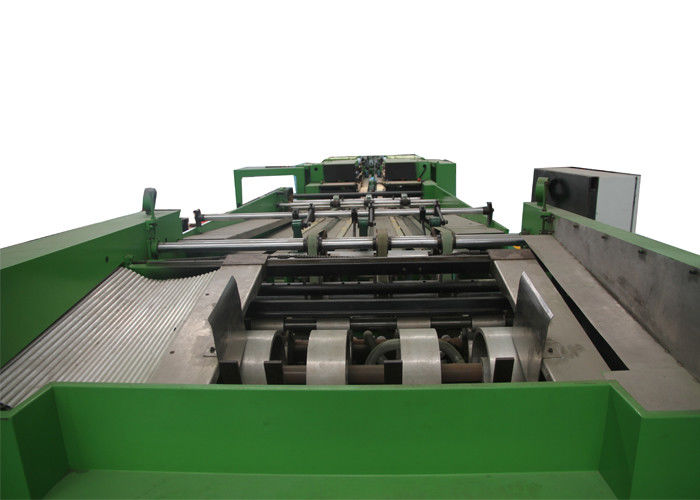

HD4913B Bottomer Machine
Operating condition
Working hour
22 hours/day
Design temperature
0~40℃
Design humidity
MAX. 95%
Number required
1 unit
Model name
HD4913B
Performance
Speed
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length
520~880mm
Bag width
420~600 mm
Bottom width
90~130mm
Bottom open width
200~380mm
Distance between bottom centers
420~780mm
Valve sheet length
100~250mm
Valve sheet width
120~170mm
Main drive motor
33kw
Total weight
22.7T
Size of whole set
21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter
Max.1,300mm
Composing of the production line
HD4913B Bottomer Machine
Name
Quantity
High speed feeder machine
1
Perforation machine
1
Tube opening unit
1
Automatic gluing machine
1
Scrip sealing machine
1
Bag bottom turning unit
1
Counting and delivery line
1
Automatic delivering out unit
1
Piling up platform
1
Electric control unit
1 (Schneider, German)
Vacuum-pump
1 (Schneider, German)
After-sales:
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.
