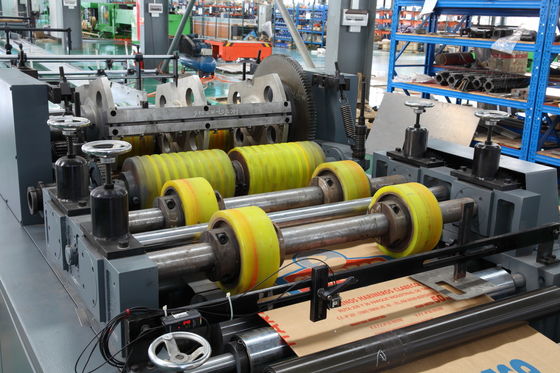

Auto Four Color Printing Paper Bag Making Machine Servo System
1) Alternating frequency conversion for adjusting speed.
2) Centralized vacuum compressed air and glue supply station.
3) Pieces process control system ensures a successive production with high efficiency. 4) An accurate synchronized device ensures a stable and realizable tube end opening and valve
patches pasting.
5). Open layout of machine is convenient for changing components for different sack size.
- Technical parameters of our production line
ZT9802SD Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9802SD
|
Performance
|
Speed
|
120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
320~620 mm
|
|
Tube Cut Length
|
420~1400mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Diameter of print roller
|
ø196～ø312 mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Air consumption
|
1,100L/min
|
|
Main drive motor
|
27kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
34 T
|
Composing of the machine
ZT9802SD Tuber Machine
|
Name
|
Quantity
|
|
2-color printing machine
|
1
|
|
Mill roll stands
|
5
|
|
Paper web guide
|
1
|
|
Automatic paper unwinding
|
1
|
|
Auxiliary web guide
|
1
|
|
Perforation unit
|
1
|
|
Cross stepped gluing unit
|
1
|
|
Longitude seam gluing unit
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off unit
|
1
|
|
Delivery and counting unit
|
1
|
|
Electrical system
|
1 (Schneider, France)
|
|
Bearing
|
(NSK, Japan)
|
|
Compressor
|
1
|
|
Servo motors
|
4
|
Technical parameters of our production line:
HD4916B Bottomer Machine
(bottomer with strength sheet pasting unit)Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
HD4916B
|
Performance
|
Max Speed
|
110 bags/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~160mm
|
|
Bottom open width
|
200~440mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~300mm(adjustable)
|
|
Valve sheet width
|
120~240mm(adjustable)
|
|
Main drive motor
|
33kw
|
|
Total weight
|
25T
|
|
Size of whole set
|
23.5m×1.8m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
|
Number Patch Length
|
(2~4)layers＋1PP film
|
Composing of the production line

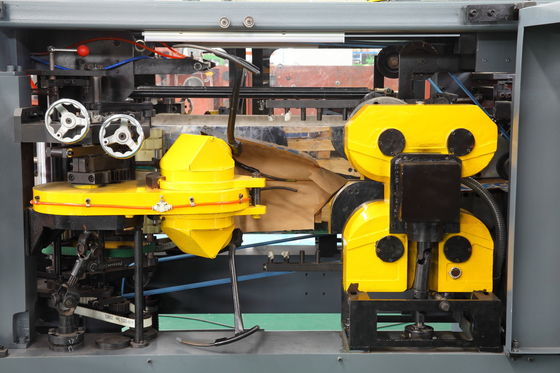

HD4916B Bottomer Machine
(bottomer with strength sheet pasting unit)
|
Name
|
Quantity
|
|
High speed feeder machine
|
1 |
|
Perforation of the exhaust outlet unit
|
1 |
|
Tube opening unit
|
1 |
|
Automatic gluing machine
|
1 |
|
Scrip sealing machine
|
1 |
|
Bag bottom turning unit
|
1 |
|

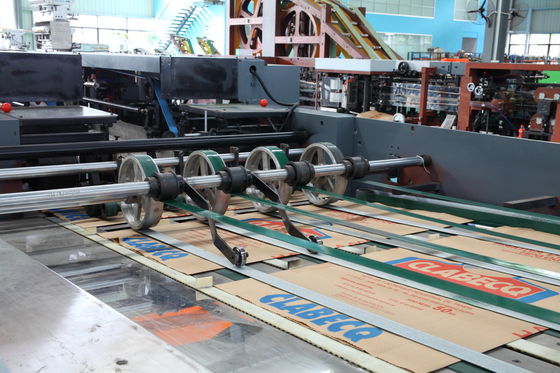

Counting and delivery line
|
1 |
|
Automatic delivering out unit
|
1 |
|
Piling up platform
|
1 |
|
Electric control unit
|
1 (German Siemens)
|
|
Vacuum-pump
|
1 (German Rietschele)
|
|
Bearing
|
(Janpan NSK)
|
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

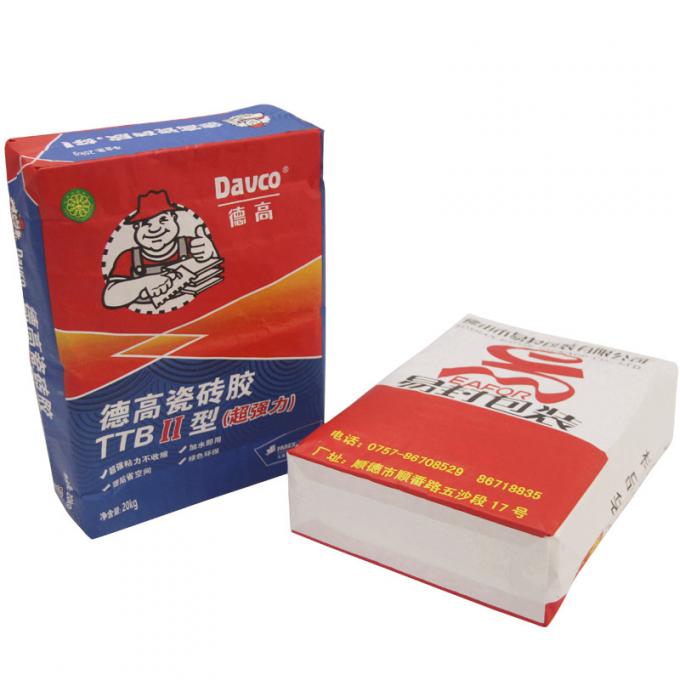

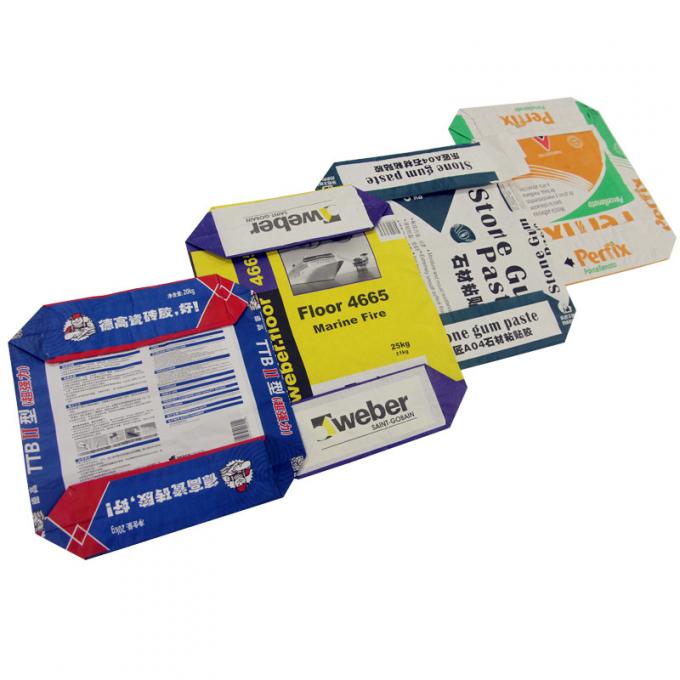

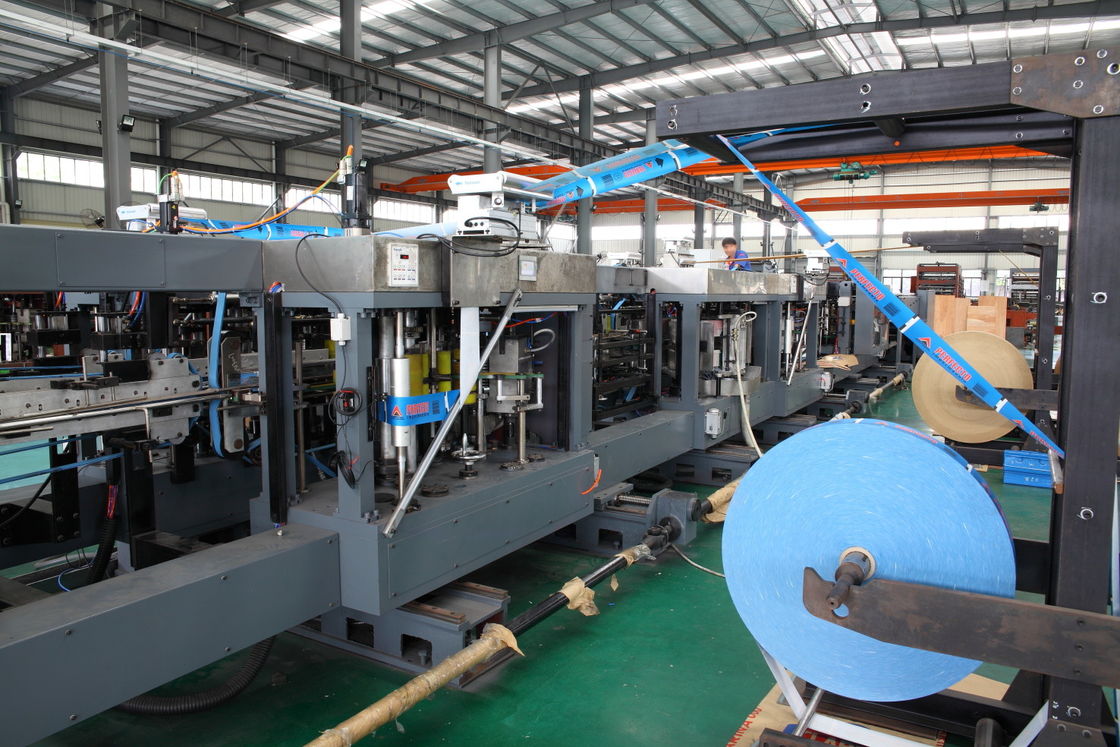

Automatic valve paper bag machine for cement,chemicals and food.
