50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System

50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System

    • 50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System
    • 50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System
    • 50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System
    • 50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System
  • 50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4916B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Wooden case
    Delivery Time: 5 months after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 pcs per year
    Contact Now
    Detailed Product Description
    Total Weight: 25T Size: 23.5m×1.8m×1.8m( L×W×H)
    Design Temperature: 0~40℃ Bag Length: 520~880mm
    Bag Width: 420~600 Mm Bottom Width: 90~160mm
    Paper Type: Kraft Paper Glue Type: Starch Glue
    Working Hours: 22 Hours/ Day Paper Thickness: Normal Specification Paper
    High Light:

    paper bag machine

    ,

    paper bag machinery



    50KG Mutil - Wall Cement Paper Bag Making Machine with Deviation Rectifying System



    • Brief Introduction



    Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the

    first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world

    top three in this industry and the only one in China able to design & manufacture the whole production

     line of  bottom sealed paper bag.

    The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".  It is composed of a tuber machine and a bottomer machine.

    We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,

    Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.







    • Features of our full-automatic paper bag production line



    1. Strength Sheet;

    2. Flat & glued bottom with filling valve;

    3. Different types for cement, chemicals, foods, tea, etc;

    4. 4-color automatic printing ;

    5. 2~4 paper layers, with one extra PE/PP film available ;

    6. 35~50 million bags/year;

    7. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system ;

    8. Full technical service for installation, training and maintenance;

    9. Full solution for factory construction and materials purchase.





    • Technical parameters of our production line



    HD4916B Bottomer Machine

    (bottomer with strength sheet pasting unit)



    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4916B

    Performance

    Max Speed

    110 bags/min(Depends on paper quality, number of ply and operators’ skill.)

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~160mm

    Bottom open width

    200~440mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~300mm(adjustable)

    Valve sheet width

    120~240mm(adjustable)

    Main drive motor

    33kw

    Total weight

    25T

    Size of whole set

    23.5m×1.8m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm

    Number Patch Length

    (2~4)layers+1PP film





    Composing of the production line

    HD4916B Bottomer Machine

    (bottomer with strength sheet pasting unit)

    Name

    Quantity

    High speed feeder machine

    1

    Perforation of the exhaust outlet unit

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    1 (German Siemens)

    Vacuum-pump

    1 (German Rietschele)

    Bearing

    (Janpan NSK)







    • After-sales:

    We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

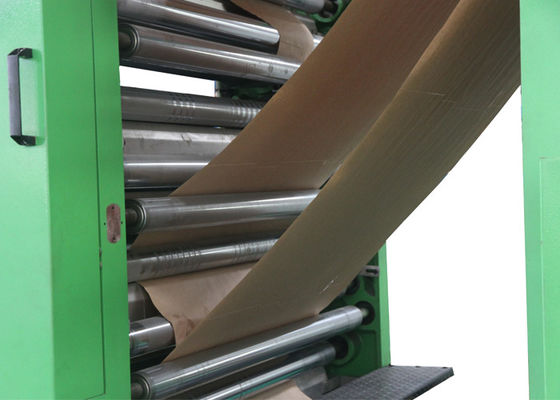

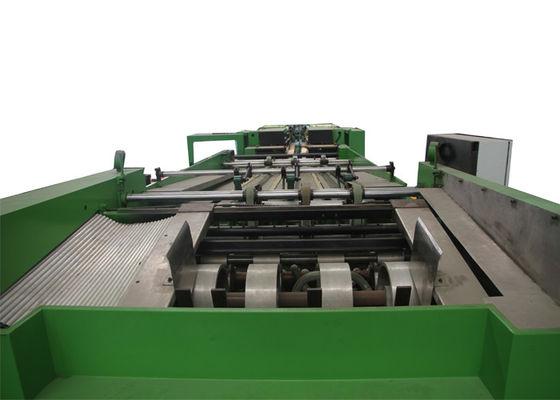

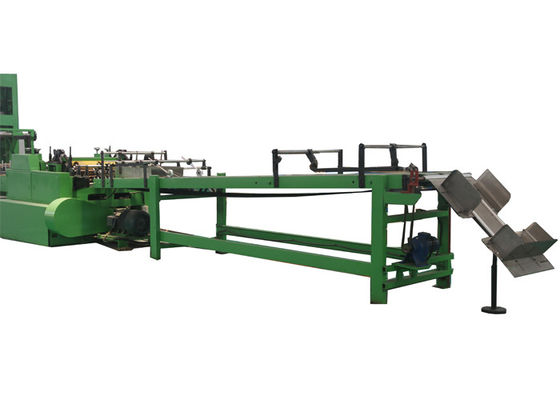

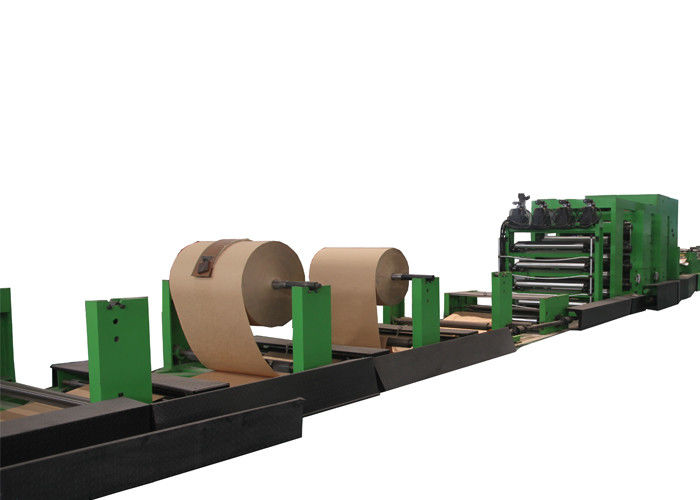

    50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System50KG Mutil - Wall Cement Paper Bag Making Machine Deviation Rectifying System

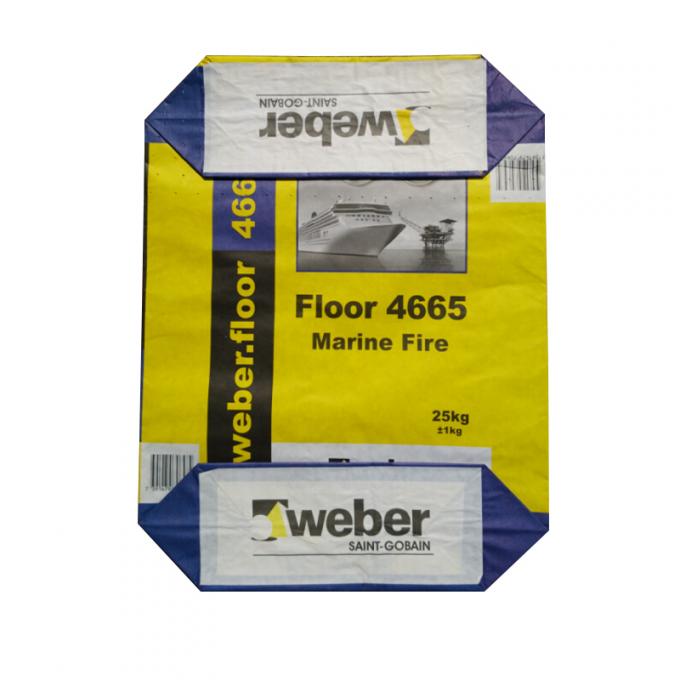

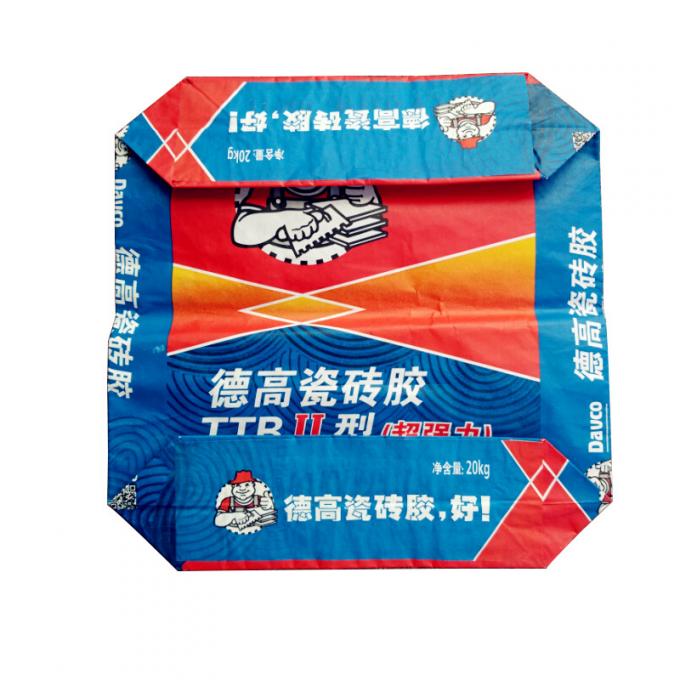

    • Sample Bag

    •
