High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing

High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing

    • High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing
    • High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing
    • High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing
    • High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing
  • High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing

    Product Details:

    Place of Origin: China
    Brand Name: Tecon
    Certification: CE
    Model Number: HD4916

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Ply Wood case
    Delivery Time: 3-5 months after received your payment
    Payment Terms: T/T or L/C
    Supply Ability: 16pcs per year
    Contact Now
    Detailed Product Description
    Tube Length: 400~1400 Mm Tube Width: 320~620 Mm
    Tube Cut Length: 420~1400mm Type Of Cutting: Step Cut/ Step Cut + Flat Cut
    Speed: 100~160 Tubes/min Working Hour: 22 Hours/day
    Printing Width: 1300 Mm(MAX) Paper Reel Width: 660~1260 Mm
    Electrical System: 1 (Schneider, France) Bearing: (NSK, Japan)
    Color: User-defined
    High Light:

    paper bags manufacturing machine

    ,

    bag making machinery

    Cement and Chemical Paper Bag Making Machine with 2 Colors Printing in Line





    Brief Introduction:

    Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world top three in this industry and the only one in China able to design & manufacture the whole production line of  bottom sealed paper bag.

    The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".  It is composed of a tuber machine and a bottomer machine.





    Features of our full-automatic paper bag production line:

    1. Flat & glued bottom with filling valve;

    2. Different types for cement, chemicals, foods, tea, etc.

    3. 4-color automatic printing

    4. 2~4 paper layers, with one extra PE/PP film available

    5. 35~50 million bags/year

    6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

    7. Full technical service for installation, training and maintenance

    8. Full solution for factory construction and materials purchase.





    Technical parameters of our production line:

    HD4916 Bottomer Machine

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    HD4916





    Performance

    Speed

    120 bags/min(Depends on paper quality, number of ply and operators’ skill.)

    Bag length

    520~880mm

    Bag width

    420~600 mm

    Bottom width

    90~160mm

    Bottom open width

    200~440mm

    Distance between bottom centers

    420~780mm

    Valve sheet length

    100~300mm(adjustable)

    Valve sheet width

    120~240mm(adjustable)

    Main drive motor

    33kw

    Total weight

    25T

    Size of whole set

    22m×1.8m×1.8m ( L×W×H)

    Valve sheet reel diameter

    Max.1,300mm





    Composing of the production line

    HD4916 Bottomer Machine

    Name

    Quantity

    High speed feeder machine

    1

    Perforation machine

    1

    Tube opening unit

    1

    Automatic gluing machine

    1

    Scrip sealing machine

    1

    Bag bottom turning unit

    1

    Counting and delivery line

    1

    Automatic delivering out unit

    1

    Piling up platform

    1

    Electric control unit

    Vacuum-pump





    After Sales Service

    We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

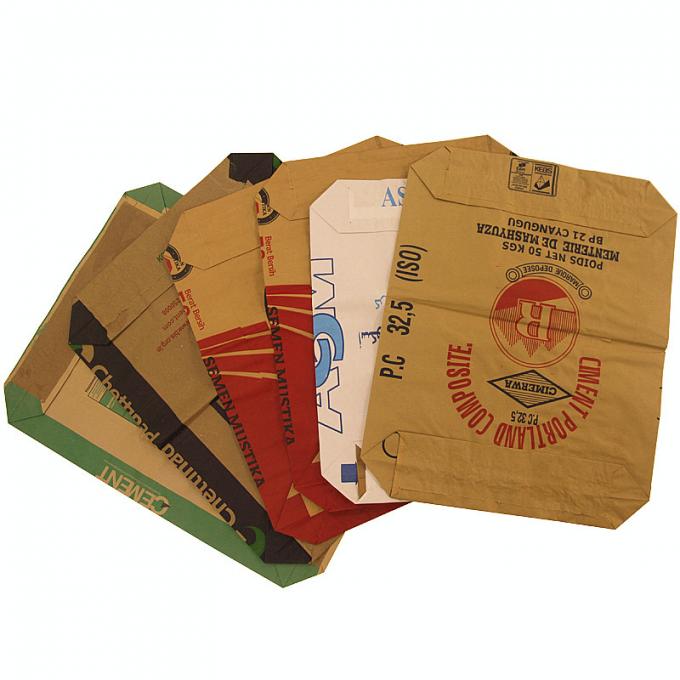

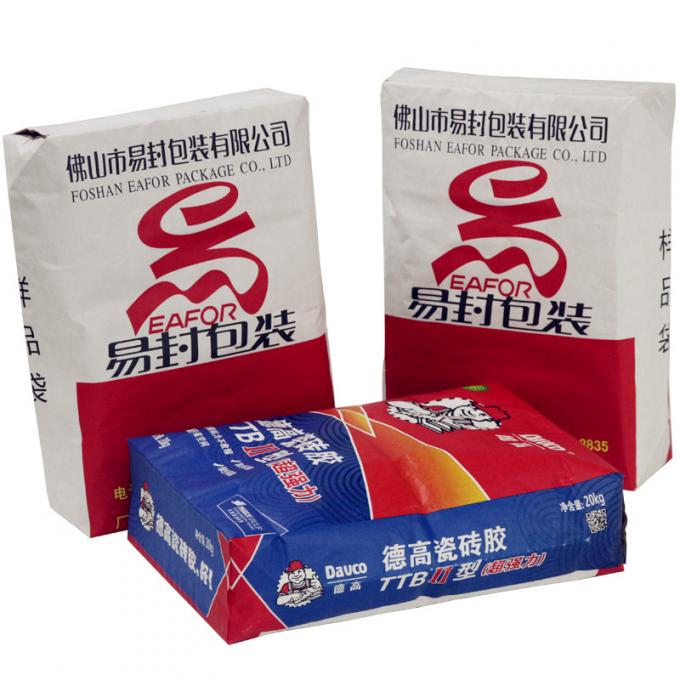

    Sample Bags:

    High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing

    High Output Chemical Paper Bag Making Machine 2 Colors Electric Driven Printing
