Place of Origin: | Guangdong,China |
Brand Name: | Foshan,Tecon |
Certification: | CE |
Model Number: | ZT9804S+HD4916 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box , 5 sets of 40-foot high cabinet |
Delivery Time: | 3-5months |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per year |
Tuber Type: | ZT9804S | Manufacturer: | Tecon, China |
---|---|---|---|
Working Hour: | 16hours ~ 22hours Per Day | Air Consumption: | 1100l/min |
Servo System: | Available | Bottomer Type: | HD4916 |
Total Main Power: | 80kw | Delivery Time: | 5 Months After Down Payment Received |
Warrantly: | 1 Year | Bag Length: | 520~880mm |
Bag Width: | 420~600 Mm | Bottom Width: | 90~160mm |
Bottom Open Width: | 200~440mm | Printing: | 2 Colors |
Speed: | 80-100pcs/ Min | ||
High Light: | paper bags manufacturing machine,bag making machinery |

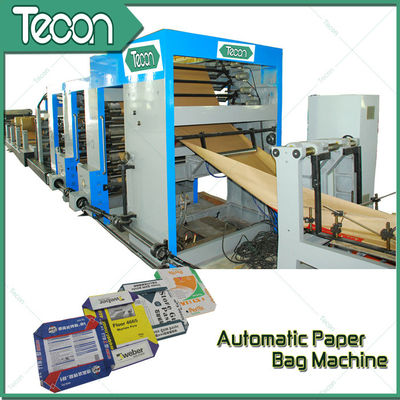

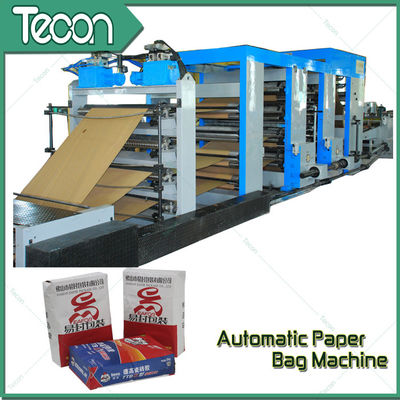

Automatic Paper Bag Making Machine with 2 Colors Printing in Line
Introduction
Our paper bag production line consists two parts, one is paper tube making machine, another is bottom pasting machine. This production line can make 2-4 color printing, bottom valved paper bags. This kind of bags can be used for packing cement, mortar, chemicals materials and other granule or powder materials. Bags can be 2~4 layers kraft paper or clupak paper and one layer of PE material.
nce and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.
Features
1) Alternating frequency conversion for adjusting speed.
2) Centralized vacuum compressed air and glue supply station.
3) Pieces process control system ensures a successive production with high efficiency.
4) An accurate synchronized device ensures a stable and realizable tube end opening and valve patches pasting.
5) Open layout of machine is convenient for changing components for different sack size.
Technical parameters of our production line:
ZT9804S Tuber Machine
|
80~120 (Depends on paper quality, number of ply and operators’ skill.) |
Tube length(mm) |
400~1400 |
Tube width(mm) |
380~620 |
Type of cutting |
Step cut&Flat cut |
Number of paper layers |
2~4 plus 1 PP or PE film(Please specify if you need paper bag with PP film) |
Printing width(mm) |
1300 (MAX) |
Paper reel width( mm) |
660~1260 |
Paper reel diameter(mm) |
Max. 1, 300 |
Main drive motor(kw) |
47 |
Size of whole set( L×W×H)mm |
35.3*2.4*2.7 |
Total weight(T) |
32.5 |
HD4916 Bottomer
Working speed(bags/min) |
80~160 |
Bag width(mm) |
420~600 |
Bag length(mm) |
520~880 |
Bottom width(mm) |
90~160 |
Distance between bottom centers(mm) |
420~780 |
Valve sheet length(mm) |
100~300 |
Valve sheet width(mm) |
120~240 |
Main drive motor(kw) |
33 |
Total weight(T) |
25 |
ZT9804S Tuber Machine compose of following parts
Name |
Quantity |
4-color printing machine |
1 |
Mill roll stands |
5 |
utomatic paper rectifier |
1 |
Auxiliary paper driver |
1 |
Perforation unit |
1 |
Latitudinal gluing machine |
1 |
Longitude gluing machine |
1 |
Tubes forming unit |
1 |
Driving tearing-off unit |
1 |
Delivery and counting unit |
1 |

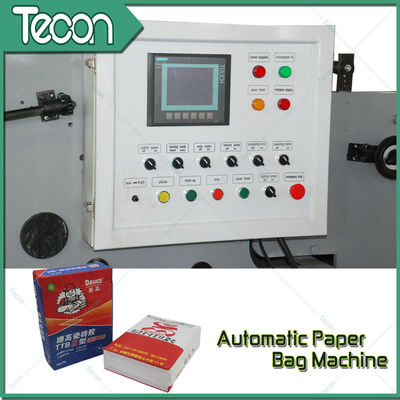

Electric control system |
1 (Schneider) |
Air compressor |
1 |
Servo system |
1 |
HD4913 Bottomer machine compose of following parts
Name |
Quantity |
High speed feeder machine |
1 |
Perforation machine |
1 |
Tube opening unit |
1 |
Automatic gluing machine |
1 |
Scrip sealing machine |
1 |
Bag bottom turning unit |
1 |
Counting and delivery line |
1 |
Piling up platform |
1 |
Electric control unit |
1 |
Delivery and counting unit |
1 |
Electric control system |
1 (Schneider, German) |
Vacuum-pump |
1 (Schneider, German) |
Bearing |
Japan,NSK |
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

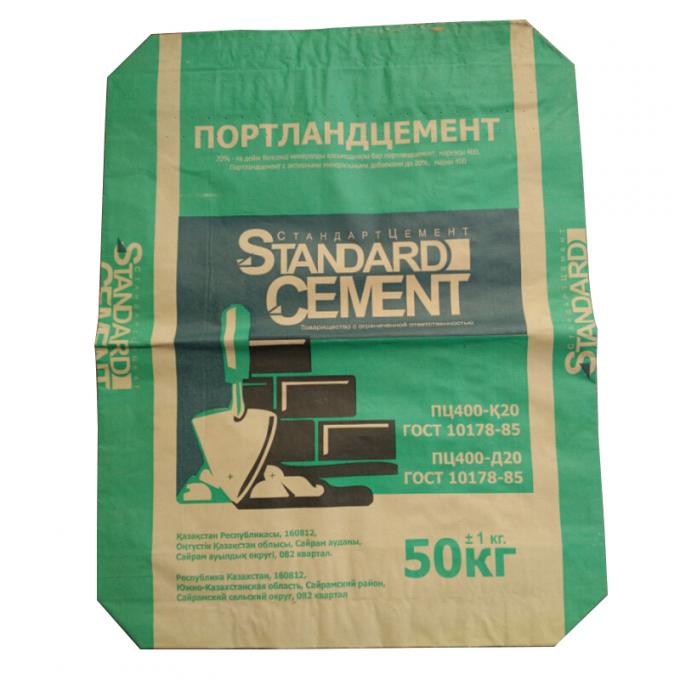

Sample Bags
