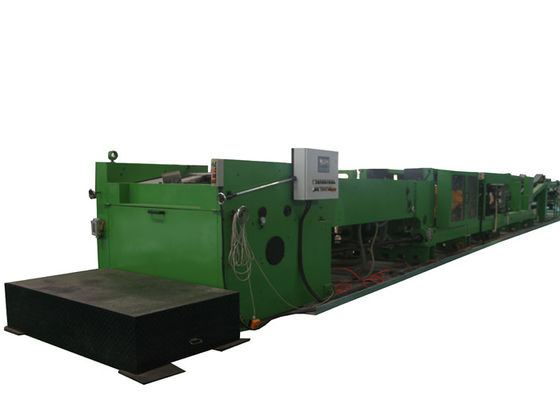

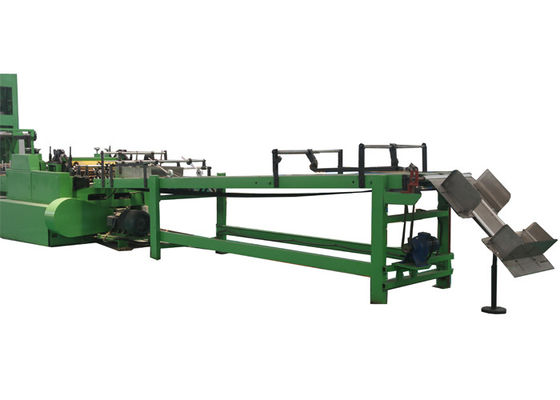

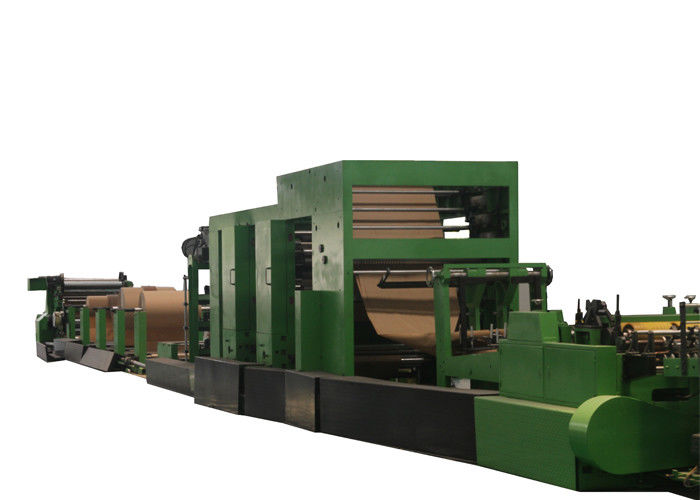

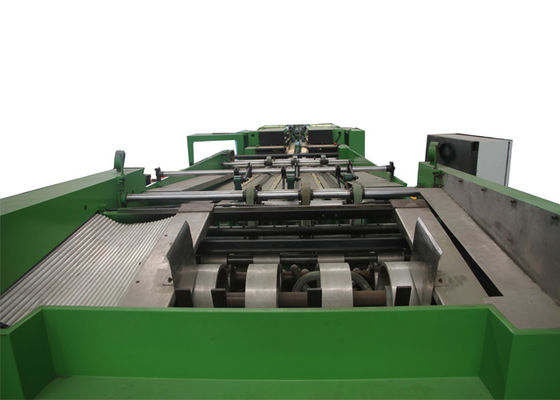

High-speed Pasting Cement Paper Bag Making Machine with Auto Sealing
- Features of our full-automatic paper bag production line
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 2-color automatic printing
4. 2~4 paper layers, with one extra PE/PP film available
5. 35~50 million bags/year
6. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
- Perfect service:
1. Technical consultation
2. Detailed design of factory or workshop
3. Project evaluation
3. Training engineers and workers
4. Supplying spare part for long time
5. Installing and testing the whole production line
6. Good after-sale and in-sale servcie
Technical parameters of ZT9802:
|
Item No.
|
Name
|
Unit
|
Specification Value
|
|
1
|
Bag Spew.
|
Length of bag tube
|
㎜
|
Cutoff length + 40
|
|
Cutoff length
|
㎜
|
700 -1050(±4)29 Grades,Each grade 12.5
|
|
Width of bag tube
|
㎜
|
400 – 600(no grade) adjustment
|
|
2
|
Printing spew.
|
Printing length
|
㎜
|
600 – 950
|
|
Printing width
|
㎜
|
1100
|
|
Printing ink
|
|
Ink
|
|
Color category
|
|
two-color overprint, four-color overprint
|
|
Formed thickness
|
㎜
|
6
|
|
3
|
|
Paper layer
|
layer
|
3 – 4
|
|
4
|
|
Production efficiency
|
bag / min
|
100 – 150
|
|
Name of Glue
|
|
Metamorphic Starch, Methyl or CMC
|
|
5
|
Scroll spew.
|
Width of Scroll
|
㎜
|
1220
|
|
Scroll diameter
|
㎜
|
1220
|
|
Diameter of scroll core
|
㎜
|
75 – 80
|
|
6
|
Main motor
|
Main Motor
|
|
Y180L – 4 TYPE, 22KW 1 unit
|
|
Main motor, delta belt
|
|
C-type, length: 2500mm quantity: 6
|
|
7
|
Total power
|
KW
|
30.9
|
|
Weight
|
T
|
34
|
|
Outline dimensions
(Length x Width x Height)
|
M
|
34 x 2.4 x 2.7
|
After-sales:
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

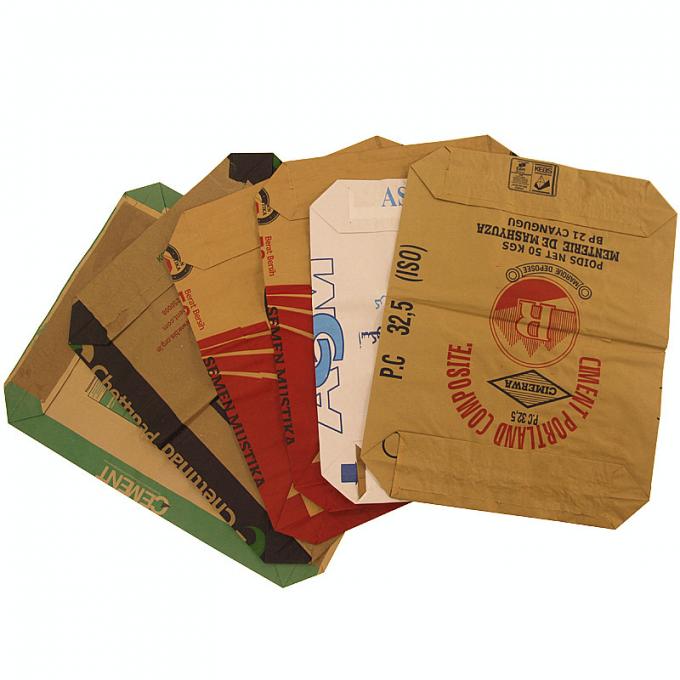

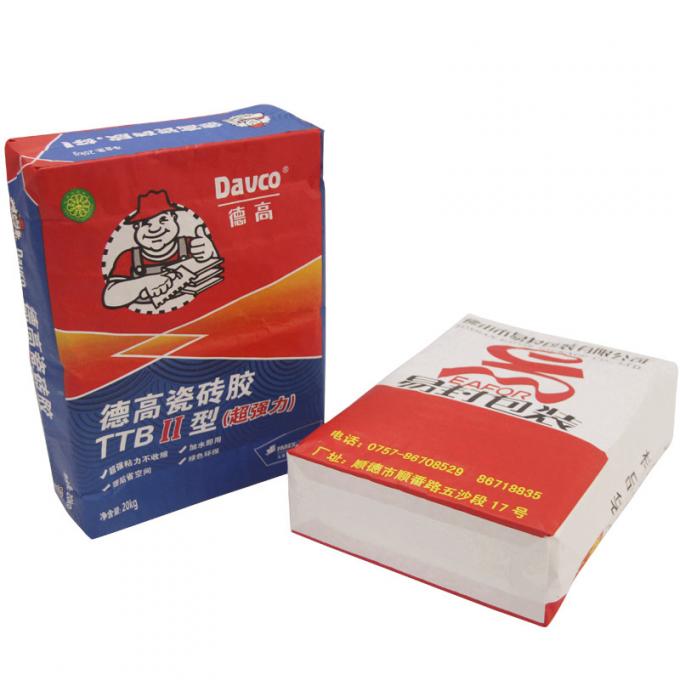

Sample Bags:
