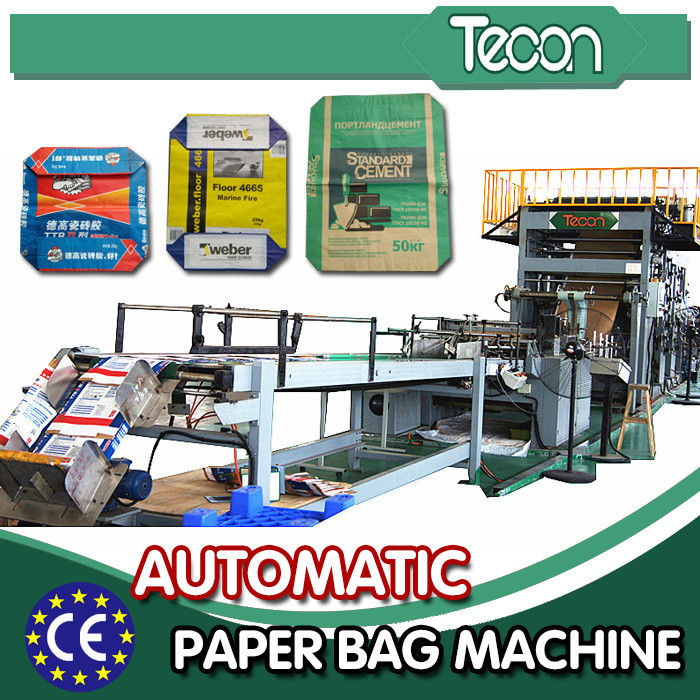

Fully Automatic Flexo Printing Paper Bag Machinery / Cement Bag Making Machine
- Features of our full-automatic paper bag production line
- Flat & glued bottom with filling valve;
- 2-color automatic printing
- 2~4 paper layers, with one extra PE/PP film available
- 35~50 million bags/year
-
Alternating frequency conversion for adjusting speed.
1. Valve -- more convenient and efficient.
2. Cement paper bag making machine.
3. Prompt and professional after sale service.
4. Automatic paper cement bag making machine
5. 120pcs/min capacity with 4 color printing inline
- Technical parameters of our production line
ZT9802SD Tuber Machine
Operating condition
|
Working hour
|
22 hours/day
|
|
Design temperature
|
0~40℃
|
|
Design humidity
|
MAX. 95%
|
|
Number required
|
1 unit
|
|
Model name
|
ZT9802SD
|
Performance
|
Speed
|
120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
|
|
Tube length
|
400~1400 mm
|
|
Tube width
|
320~620 mm
|
|
Tube Cut Length
|
420~1400mm
|
|
Number of ply
|
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
|
|
Diameter of print roller
|
ø196～ø312 mm
|
|
Printing width
|
1300 mm(MAX)
|
|
Paper reel width
|
660~1260 mm
|
|
Paper reel diameter
|
Max. 1, 300 mm
|
|
Air consumption
|
1,100L/min
|
|
Main drive motor
|
27kw
|
|
Size of whole set
|
35.3m×2.4m×2.7m( L×W×H)
|
|
Total weight
|
34 T
|
Composing of the machine
ZT9802SD Tuber Machine
|
Name
|
Quantity
|
|
2-color printing machine
|
1
|
|
Mill roll stands
|
5
|
|
Paper web guide
|
1
|
|
Automatic paper unwinding
|
1
|
|
Auxiliary web guide
|
1
|
|
Perforation unit
|
1
|
|
Cross stepped gluing unit
|
1
|
|
Longitude seam gluing unit
|
1
|
|
Tubes forming unit
|
1
|
|
Driving tearing-off unit
|
1
|
|
Delivery and counting unit
|
1
|
|
Electrical system
|
1 (Schneider, France)
|
|
Bearing
|
(NSK, Japan)
|
|
Compressor
|
1
|
|
Servo motors
|
4
|
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

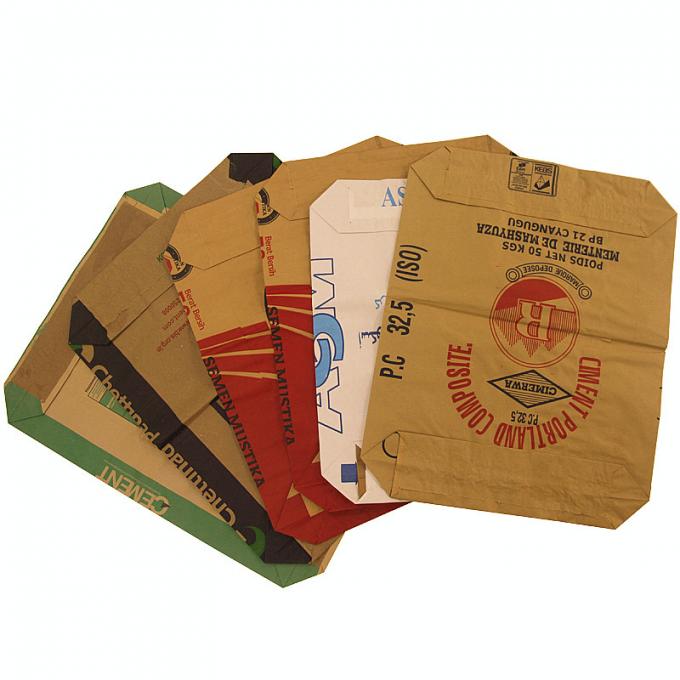

Automatic valve paper bag machine for cement,chemicals and food.
If you are interested in our products, please do not hesitate to contact us!!
