Place of Origin: | China |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | ZT9802S+HD4913 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Ply Wood case |
Delivery Time: | 3-5 months after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 16pcs per year |
Valve Sheet Width: | 120~170mm | Valve Sheet Length: | 100~250mm |
---|---|---|---|
Bottom Open Width: | 200~380mm | Bottom Width: | 90~130mm |
Bag Width: | 420~600 Mm | Bag Length: | Bag Length |
Speed: | 80~130 Bags/min | Distance Between Bottom Centers: | 420~780mm |
High Light: | paper bags manufacturing machine,bag making machinery |

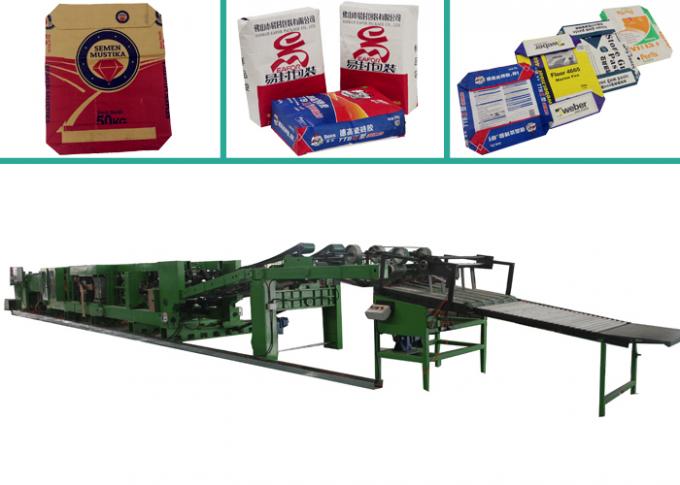

GP45. Serials HOLAND Glue Kraft Bag Producing Equirtments With Mondi 85g Paper
ZT9802S Tuber Machine With Servo System Performance
Speed |
100~160 tubes/min(Depends on paper quality, number of ply and operators’ skill.) |
Tube length |
400~1400 mm |
Tube width |
320~620 mm |
Type of cutting |
Step cut/ Step cut + flat cut |
Tube Cut Length |
420~1400mm |
Number of ply |
2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film) |
Paper reel width | 660~1260 mm |
Printing width |
1300 mm(MAX) |
Composing of the production line
HD4913 Bottomer Machine
High speed feeder machine
Perforation machine
Tube opening unit
Automatic gluing machine
Scrip sealing machine
Scrip sealing machine
Bag bottom turning unit
Counting and delivery line
Automatic delivering out unit
Piling up platform
Electric control unit(Schneider, German)
Vacuum-pump(Schneider, German)
ZT9802S Tuber Machine
2-color printing machine
Mill roll stands
Paper web guide
Automatic paper unwinding
Auxiliary web guide
Perforation unit
Cross stepped gluing unit
Longitude seam gluing unit
Tubes forming unit
Driving tearing-off unit
Delivery and counting unit
Electrical system (Schneider, France)
Bearing (NSK, Japan)
Compressor
Servo motors

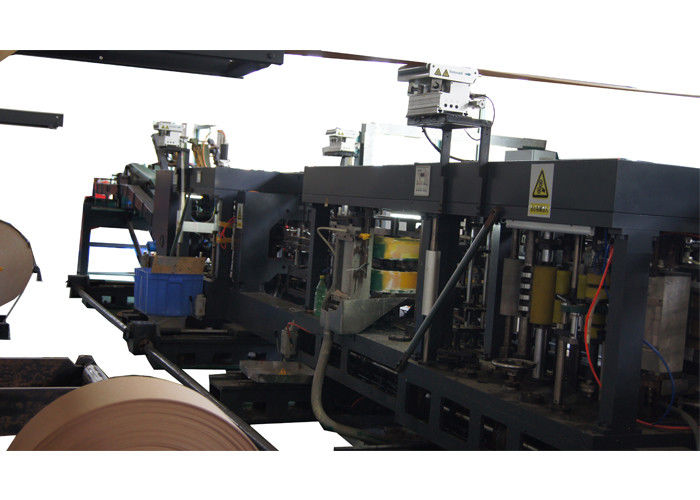

Our machine Details:
