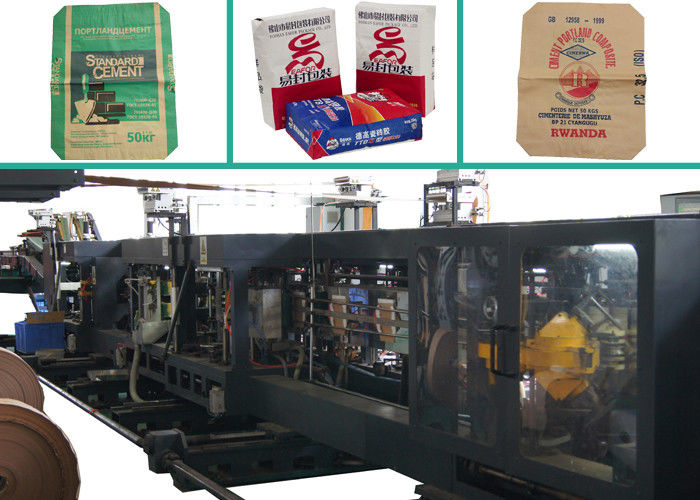

Strengthen Sheet Milk Powder Food Paper Bag Making Machine With Stepped and Flush Cut

Strengthen Sheet Milk Powder Food Paper Bag Making Machine With Stepped and Flush Cut

Strengthen Sheet Milk Powder Food Paper Bag Making Machine With Stepped and Flush Cut

Product Details:

Place of Origin: China
Brand Name: Tecon
Certification: CE
Model Number: ZT9802S+HD4916BD

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 5 months after received your payment
Payment Terms: L/C, T/T
Supply Ability: 16pcs per year
Contact Now
Detailed Product Description
Strengthen Sheet: Yes Design Temperature: 0~40℃
Tuber Total Weight: 30T Bottomer Total Weight: 34T
Paper Layer: 2~4paper+1PP/PE Production Efficiency: 80bags/min
High Light:

food bag making machine

,

paper bags making machine

Milk Powder Food Paper Bag Making Machine  With Stepped and Flush Cut



  • Technical parameters of our production line:

 Item No.

Name

Unit

Specification     Value

1

Bag Spew.

Length of bag tube

Cutoff length + 40

Cutoff length

700 -1050(±4)29 Grades,Each grade 12.5

Width of bag tube

400 – 600(no grade) adjustment

2

Printing spew.

Printing length

600 – 950

Printing width

1100

Printing ink



Ink

Color category



two-color overprint, four-color overprint

Formed thickness

6

3



Paper layer

layer

3 – 4

4



Production efficiency

bag / min

100 – 150

Name of Glue



Metamorphic Starch, Methyl or CMC

5

Scroll spew.

Width of Scroll

1220

Scroll diameter

1220

Diameter of scroll core

75 – 80

6

Main motor

Main Motor



Y180L – 4 TYPE, 22KW  1 unit

Main motor, delta belt



C-type, length: 2500mm quantity: 6

7

Total power

KW

30.9

Weight

T

34

Outline dimensions

(Length x Width x Height)

M

34 x 2.4 x 2.7




HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)




Performance







HD4916BD

Speed

MAX 80 bags/min

Tube Width

380~620 mm

Bottom Width

80~160 mm

Valve Sheet Length *Width

(100-300)﹡(120-340)adjustable

Bag Length

390~1020 mm

Bottom Center Distance

290~860 mm

Number of ply

2~4paper+1 PP/PE

Strength sheet unit

YES

Strength sheet  length *width

(270~520)﹡(80~160)




Composing of the production line

HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)

Name

Quantity

High speed feeder machine

1

Perforation of the exhaust outlet unit

1

Tube opening unit

1

Automatic gluing machine

1

Scrip sealing machine

1

Bag bottom turning unit

1

Counting and delivery line

1

Automatic delivering out unit

1

Piling up platform

1

Electric control unit

1 (German Siemens)

Vacuum-pump

1 (German Rietschele)

Bearing

(Janpan NSK)


  • Features of our full-automatic paper bag production line:
  1. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system;
  2. 2~4 paper layers, with one extra PE/PP film available;
  3. 35~50 million bags/year;
  4. Different types for cement, chemicals, foods, tea, etc;
  5. 4-color automatic printing;
  6. Full technical service for installation, training and maintenance;
  7. Full solution for factory construction and materials purchase;
  8. Flat & glued bottom with filling valve;
  • Brief Introduction:

Foshan Tecon Package Machinery CO., LTD is a high-tech equipment manufacturer. We designed the

 first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world

top three in this industry and the only one in China able to design & manufacture the whole production

 line of  bottom sealed paper bag.

The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".  It is composed of a tuber machine and a bottomer machine.

We have sold to these countries such as: Yemen,America,Iran,Malaysia,Syria,Togo,Rwanda,Egypt,

Kazakhstan,India,Indonesia,Sri Lanka and so on. Our products have won CE certificate, and have lots of patents.
