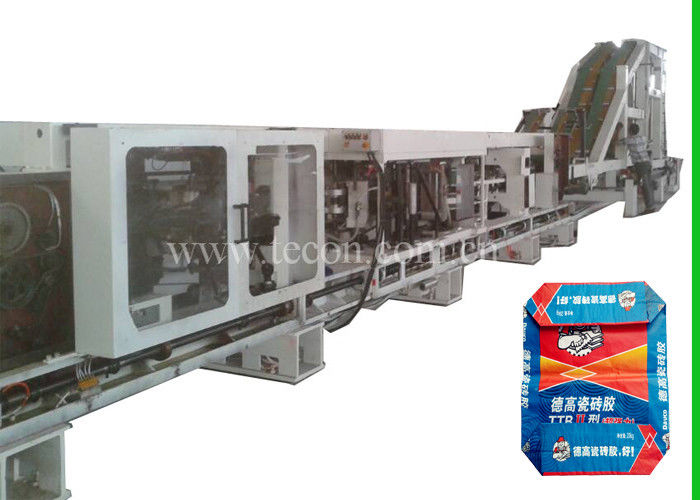

Professional Starch Food Bag Making Machine PLC Control For Paper Bag

Professional Starch Food Bag Making Machine PLC Control For Paper Bag

    • Professional Starch Food Bag Making Machine PLC Control For Paper Bag
    • Professional Starch Food Bag Making Machine PLC Control For Paper Bag
  • Professional Starch Food Bag Making Machine PLC Control For Paper Bag

    Product Details:

    Place of Origin: China; German ; Japan
    Brand Name: Tecon
    Certification: CE
    Model Number: ZT9804S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box , 3*40-foot high cabinet
    Delivery Time: 3-5months
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per year
    Contact Now
    Detailed Product Description
    Type: ZT9804S Manufacturer: Tecon, China
    Main Power: 47kw Total Weight: 33T
    Working Hour: 22hours Per Day Air Consumption: 1100l/min
    Machine Length: 35.3m Machine Width: 2.4m
    Machine Height: 2.7m Pow Supply: 380V
    Machine Color: Can Be Customized
    High Light:

    food bag making machine

    ,

    food paper bag machine

    Professional Starch Food Bag Making Machine PLC Control For Paper Bag ​


    Features of our full-automatic paper bag production line:

    1.        Flat & glued bottom with filling valve;

    2.        Different types for cement, chemicals, foods, tea, etc.

    3.        4-color automatic printing

    4.        2~4 paper layers, with one extra PE/PP film available

    5.        35~50 million bags/year

    6.        Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system

    7.        Full technical service for installation, training and maintenance

    8.        Full solution for factory construction and materials purchase.




    Technical parameters of our production line:

                                              ZT9804S Tuber Machine

    Operating condition

    Working hour

    22 hours/day

    Design temperature

    0~40℃

    Design humidity

    MAX. 95%

    Number required

    1 unit

    Model name

    ZT9804S

    Performance


    Speed

    80~120 tubes/min(Depends on paper quality, number of ply and operators’ skill.)

    Tube length

    400~1400 mm

    Tube width

    380~620 mm

    Type of cutting

    Step cut

    Number of ply

    2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)

    Printing width

    1300 mm(MAX)

    Paper reel width

    660~1260 mm

    Paper reel diameter

    Max. 1, 300 mm

    Main drive motor

    47kw

    Size of whole set

    35.3m×2.4m×2.7m( L×W×H)

    Total weight

    33 T




    Composing of the machine
    ZT9804S Tuber Machine

    Name

    Quantity

    4-color printing machine

    1

    Paper reel stands

    5

    Paper web guide

    1

    Automatic paper rectifier

    1

    Auxiliary paper driver

    1

    Perforation unit

    1

    Latitudinal gluing machine

    1

    Longitude gluing machine

    1

    Tubes forming unit

    1

    Driving tearing-off unit

    1

    Delivery and counting unit

    1

    Electric control system

    1 (Schneider)

    Air compressor

    1

    Servo system

    1







    Why chose us?

    Foshan Tecon Package Machinery CO., LTD is a high_tech equipment manufacturer. We designed the
     first production line for paper bag 20 years ago, that's is about 1996, and now we are listed in the world
     top three in this industry and the only one in China able to design & manufacture the whole production
     line of  bottom sealed paper bag.

    The leading product of our company is the "high-speed automatic bottom-pasted bag making machine".
    It is composed of a tuber machine and a bottomer machine.

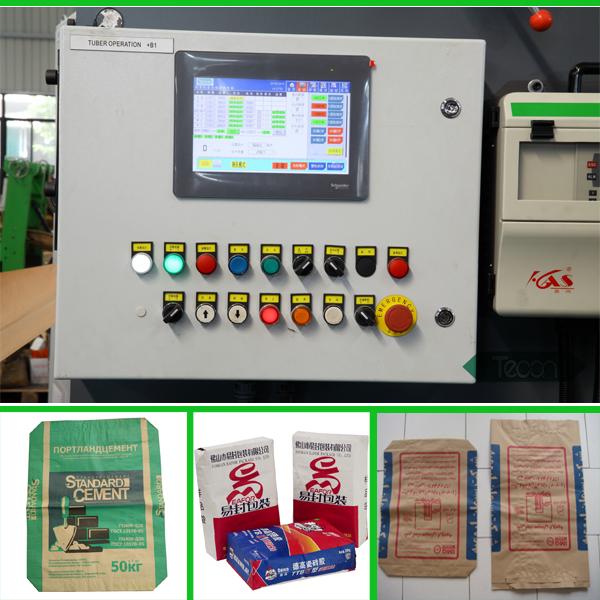

    PLC control system and sample bags:
    Professional Starch Food Bag Making Machine PLC Control For Paper Bag
