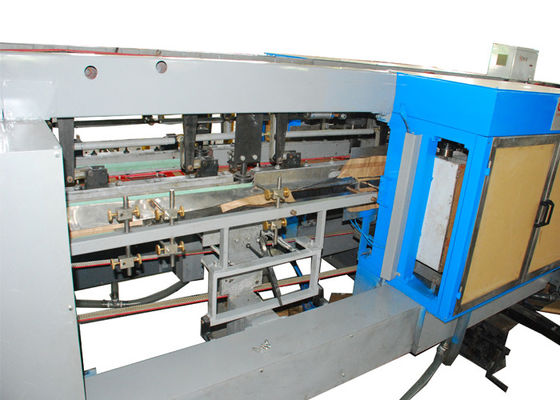

Professional CE Approved Automatic Paper Bag Making Machine with Customized Colour

CE Certificate Automatic Paper Bag Making Machine with Customized Colour



• Features of our full-automatic paper bag production line

1. Flat & glued bottom with filling valve;
2. Full technical service for installation, training and maintenance;
3. Different types for cement, chemicals, foods, tea, etc;
4. Full solution for factory construction and materials purchase;
5. 2-color automatic printing;
6. 2~4 paper layers, with one extra PE/PP film available;
7. 35~50 million bags/year;
8. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system.

• Technical parameters of  ZT9802

  Item No.	Name		Unit	Specification     Value
  1	Bag Spew.	Length of bag tube	㎜	Cutoff length + 40
  		Cutoff length	㎜	700 -1050(±4)29 Grades,Each grade 12.5
  		Width of bag tube	㎜	400 – 600(no grade) adjustment
  2	Printing spew.	Printing length	㎜	600 – 950
  		Printing width	㎜	1100
  		Printing ink		Ink
  		Color category		two-color overprint, four-color overprint
  		Formed thickness	㎜	6
  3		Paper layer	layer	3 – 4
  4		Production efficiency	bag / min	100 – 150
  		Name of Glue		Metamorphic Starch, Methyl or CMC
  5	Scroll spew.	Width of Scroll	㎜	1220
  		Scroll diameter	㎜	1220
  		Diameter of scroll core	㎜	75 – 80
  6	Main motor	Main Motor		Y180L – 4 TYPE, 22KW  1 unit
  		Main motor, delta belt		C-type, length: 2500mm quantity: 6
  7	Total power		KW	30.9
  	Weight		T	34
  	Outline dimensions (Length x Width x Height)		M	34 x 2.4 x 2.7

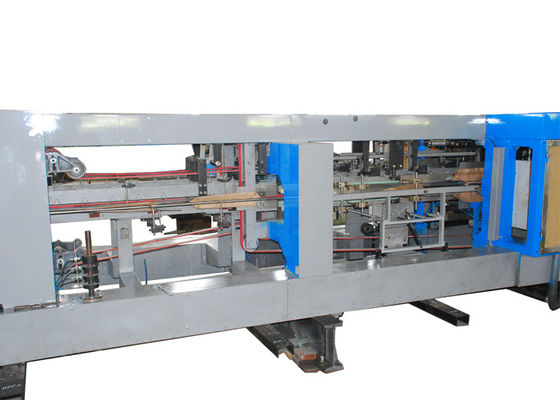

HD4913 Bottomer Machine

Operating condition

Performance

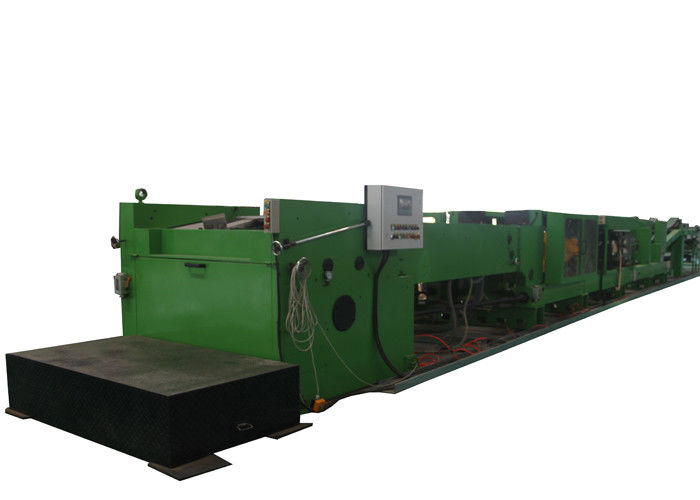

Composing of the production line

HD4913 Bottomer Machine

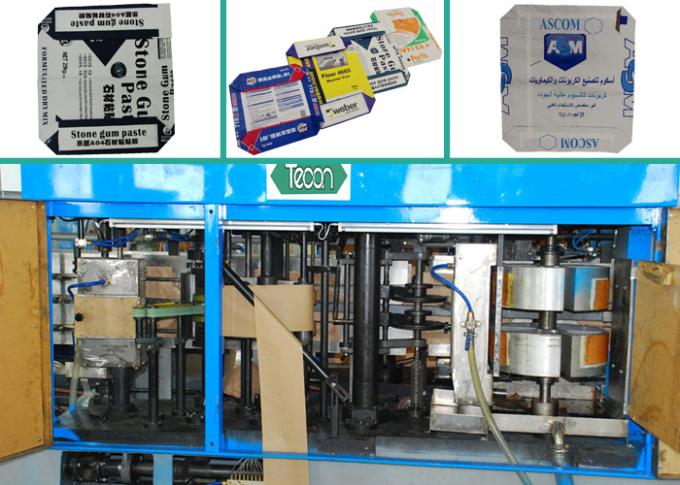

• Our Machine
